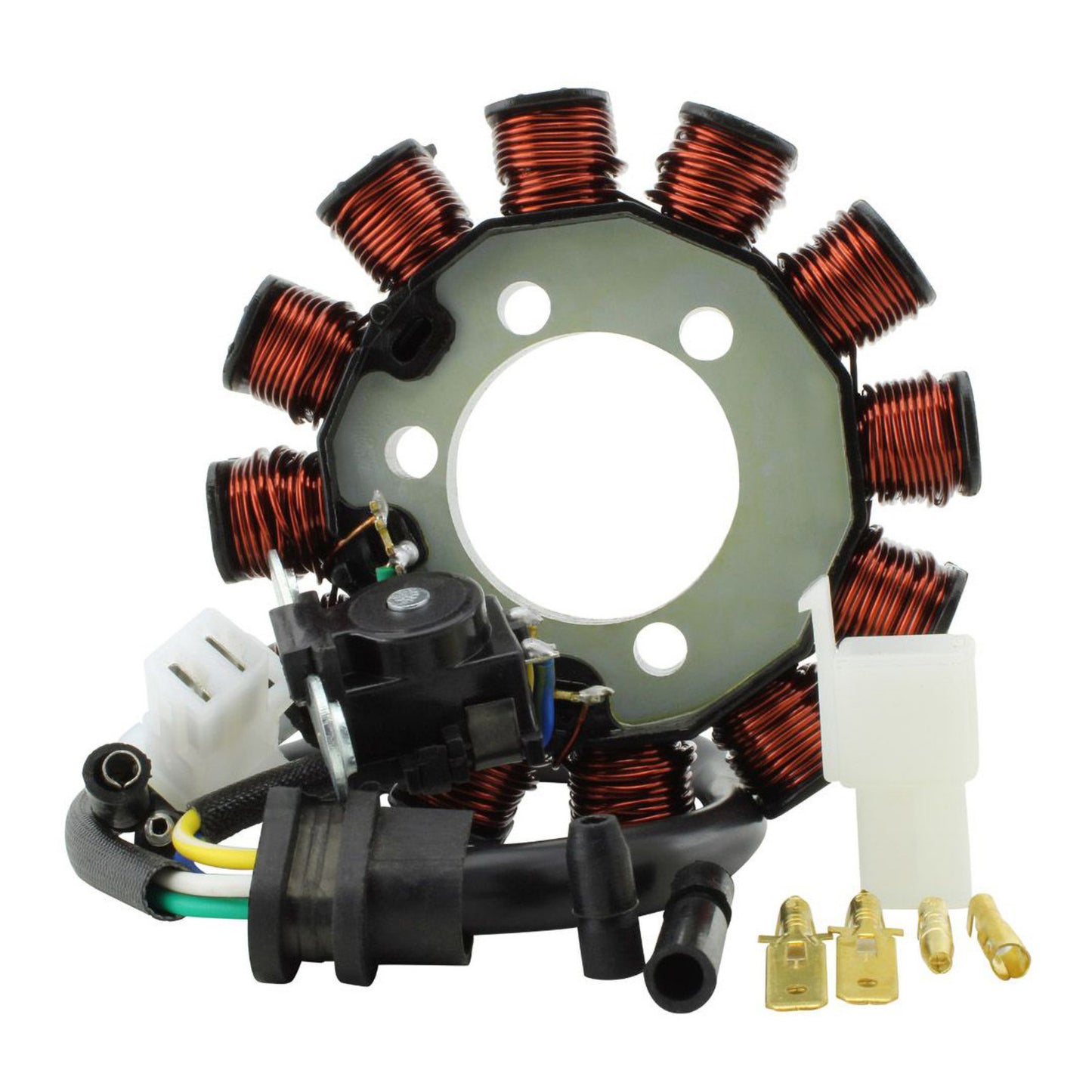

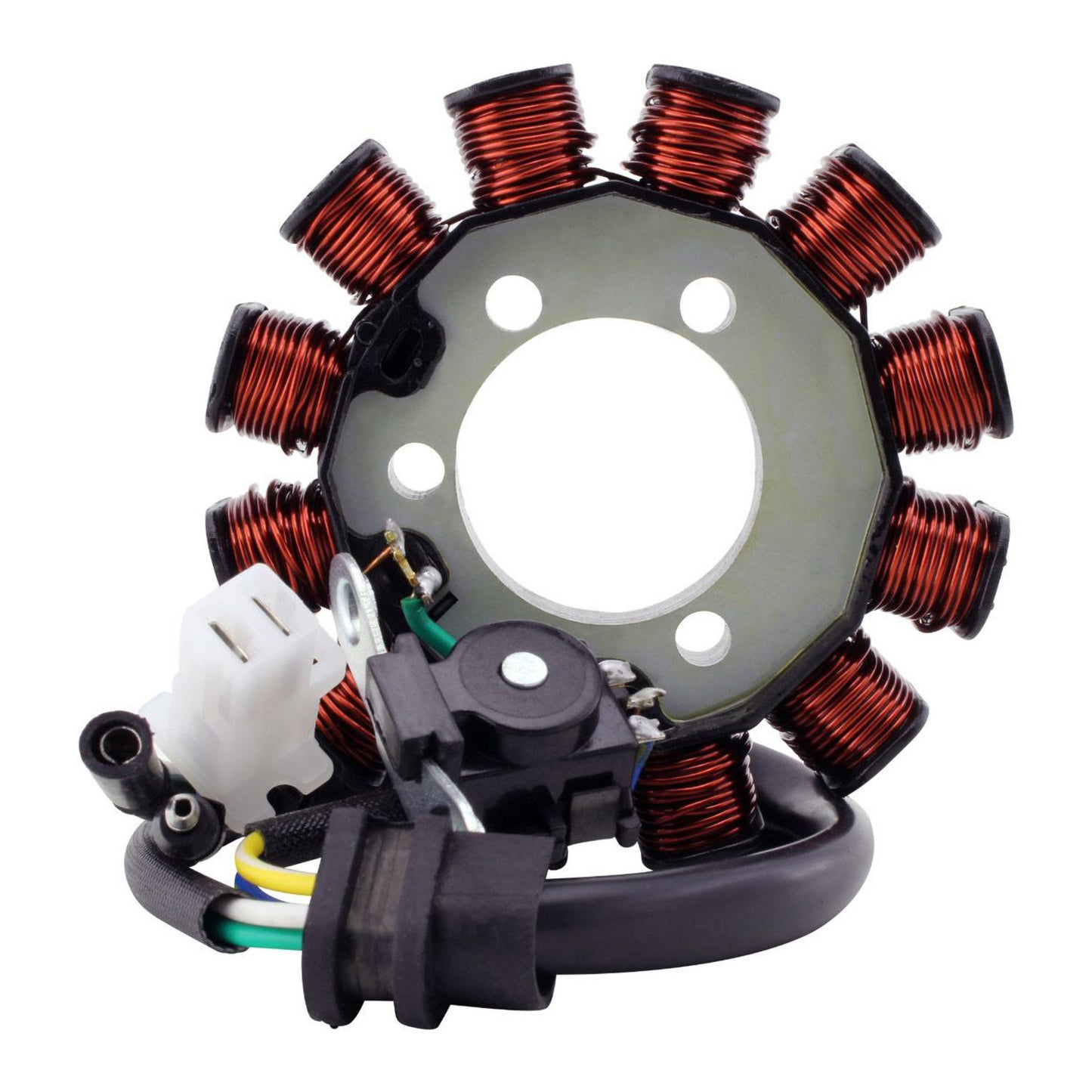

STATOR HON CRF110F 2013-2018 (RMS010-106333)

STATOR HON CRF110F 2013-2018 (RMS010-106333)

Regular price $189.91 NZD
Regular price Sale price $189.91 NZD
Sale Sold out
Tax included.

Brand new aftermarket Stator

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius
  • Pick up pulsar coil included
  • Connectors included
  • Rubber grommet included
  • All products shipped are tested

Dimensions:

  • Interior diameter: 35mm
  • Exterior diameter: 93mm
  • Thickness: 9mm
  • Length of wires stator to grommet: 120mm
  • Length of wires grommet to plug: 230mm
  • Length of pickup coil's wire to grommet: 30mm

Other specifications:

  • Number of wires: 3
  • Number of plugs: 3
  • Number of pins: 3
  • Number of poles: 12

Wire to wire resistance:

  • Alternator: Green to White = 1.2 ohms +-20%
  • Pickup: Green to Blue/Yellow = 263 ohms +-20%
  • Source: Green = Ground

Please Note:

  1. All electrical components must be fitted by a qualified technician.
  2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
  3. The absence of either of points 1 or 2 above, will void any warranty.
