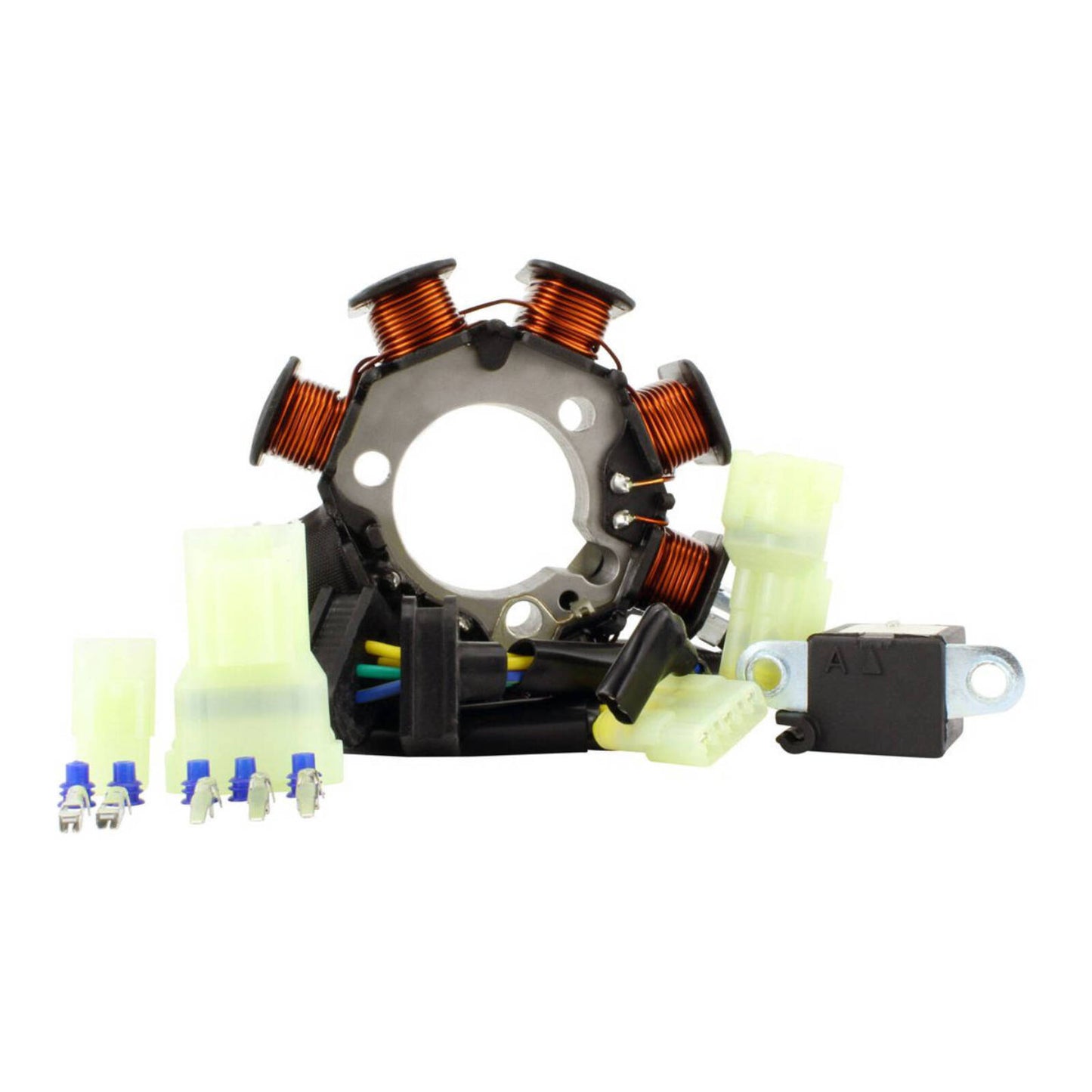

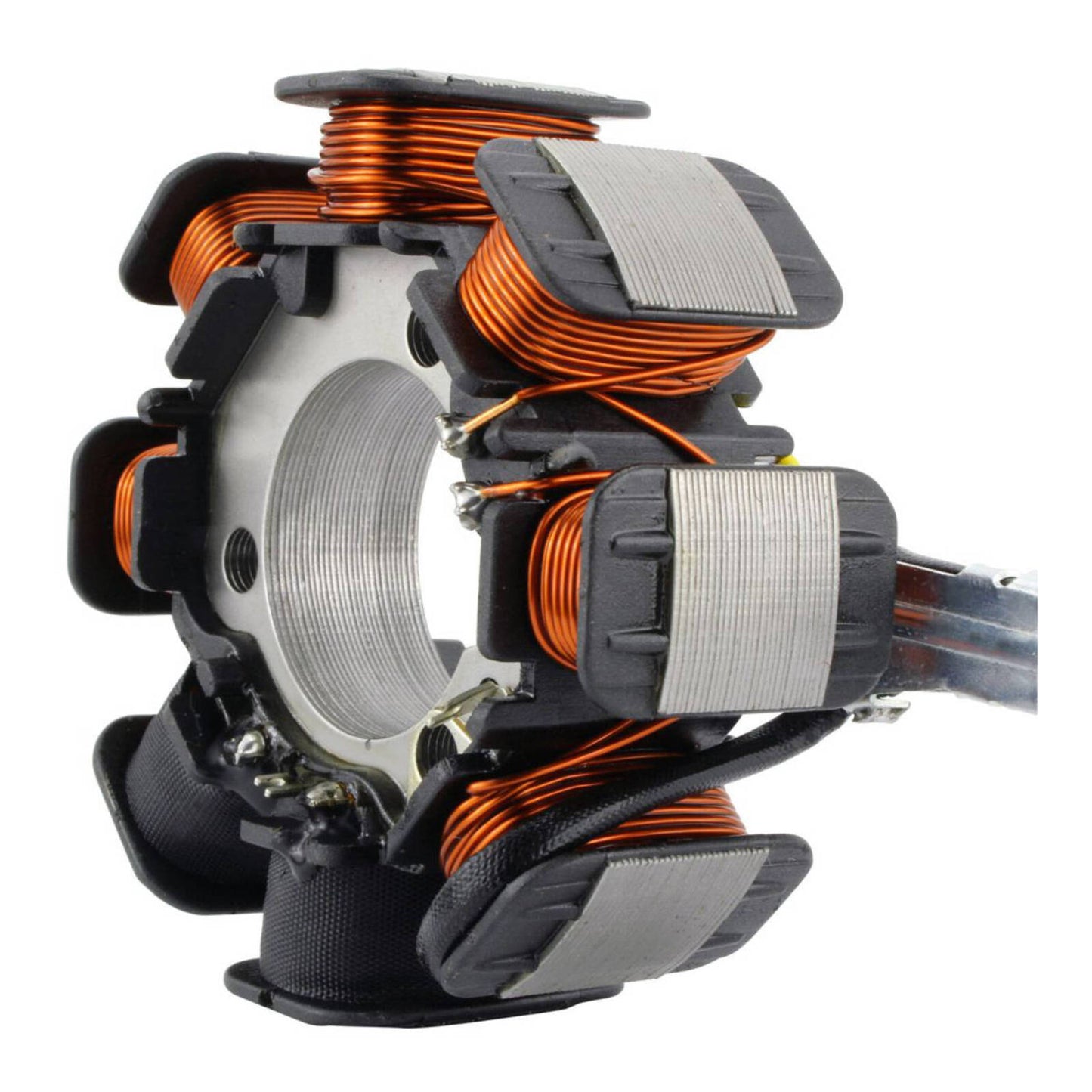

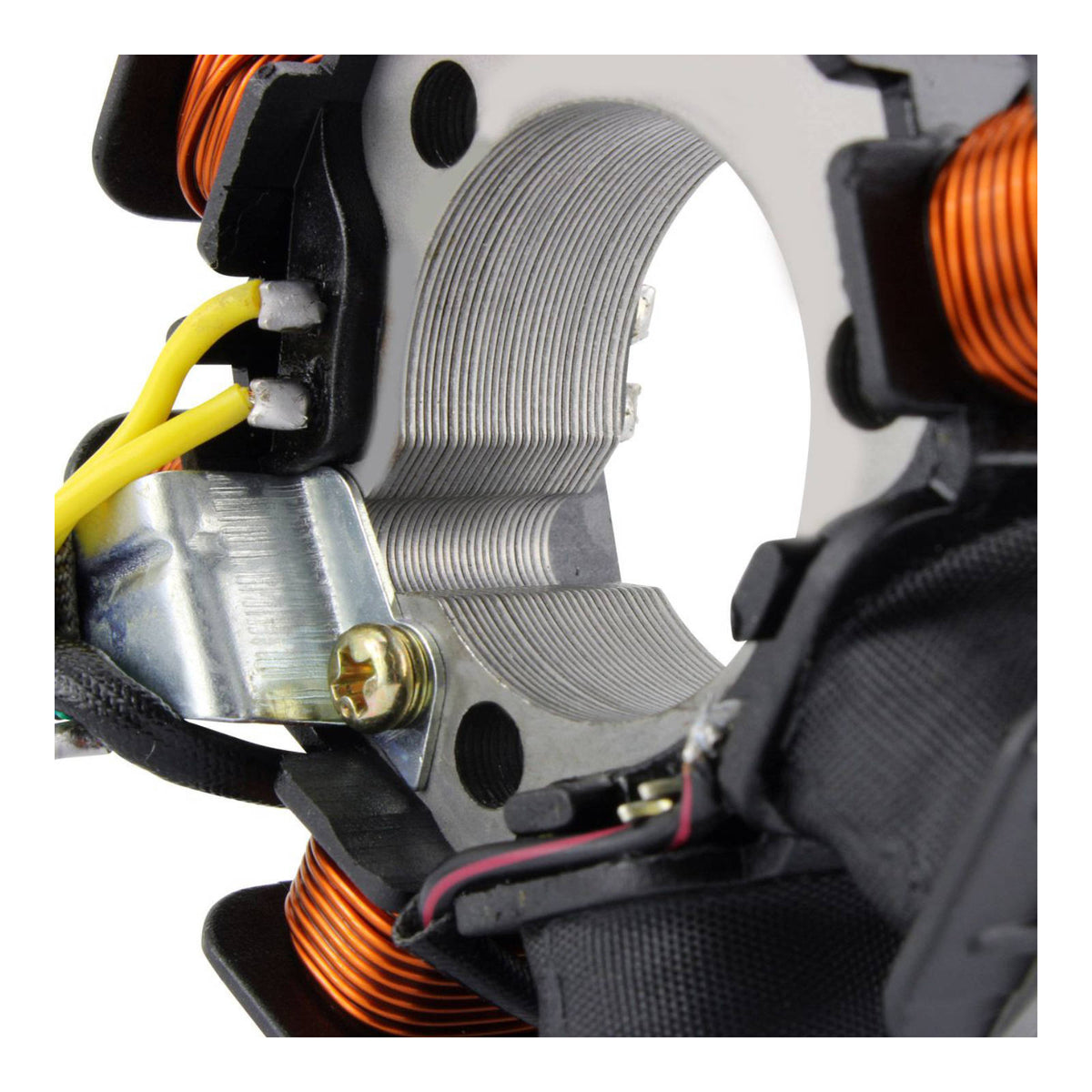

GENERATOR STATOR HONDA TRX250X 09-21 (RMS010-107110)

GENERATOR STATOR HONDA TRX250X 09-21 (RMS010-107110)

Regular price $459.90 NZD
Regular price Sale price $459.90 NZD
Sale Sold out
Tax included.
Title

Plug-and-play replacement generator stator from RM Stator.



Dimensions:

  • Interior diameter: 35mm
  • Exterior diameter: 88mm
  • Thickness: 18mm
  • Length of wires stator to grommet: 90mm
  • Length of wires grommet to plug: 140mm
  • Length of pickup coil's wire to grommet #1: 330mm
  • Length of pickup coil's wire to grommet #2: 370mm



Other specifications:

  • Number of wires: 5
  • Number of plugs: 2
  • Number of pins: 5
  • Number of poles: 8
  • Wire to wire resistance:
    • Alternator: Between each Yellow = 0.7 ohms +-20%
    • Pickup: Blue/Yellow to Ground = 336 ohms +-20%
    • Pickup: Black/Red to Ground = 185 ohms +-20%



Details:

    < li>Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius
  • Pick up pulsar coil included
  • Connectors included
  • Rubber grommet included
  • All products shipped are tested
