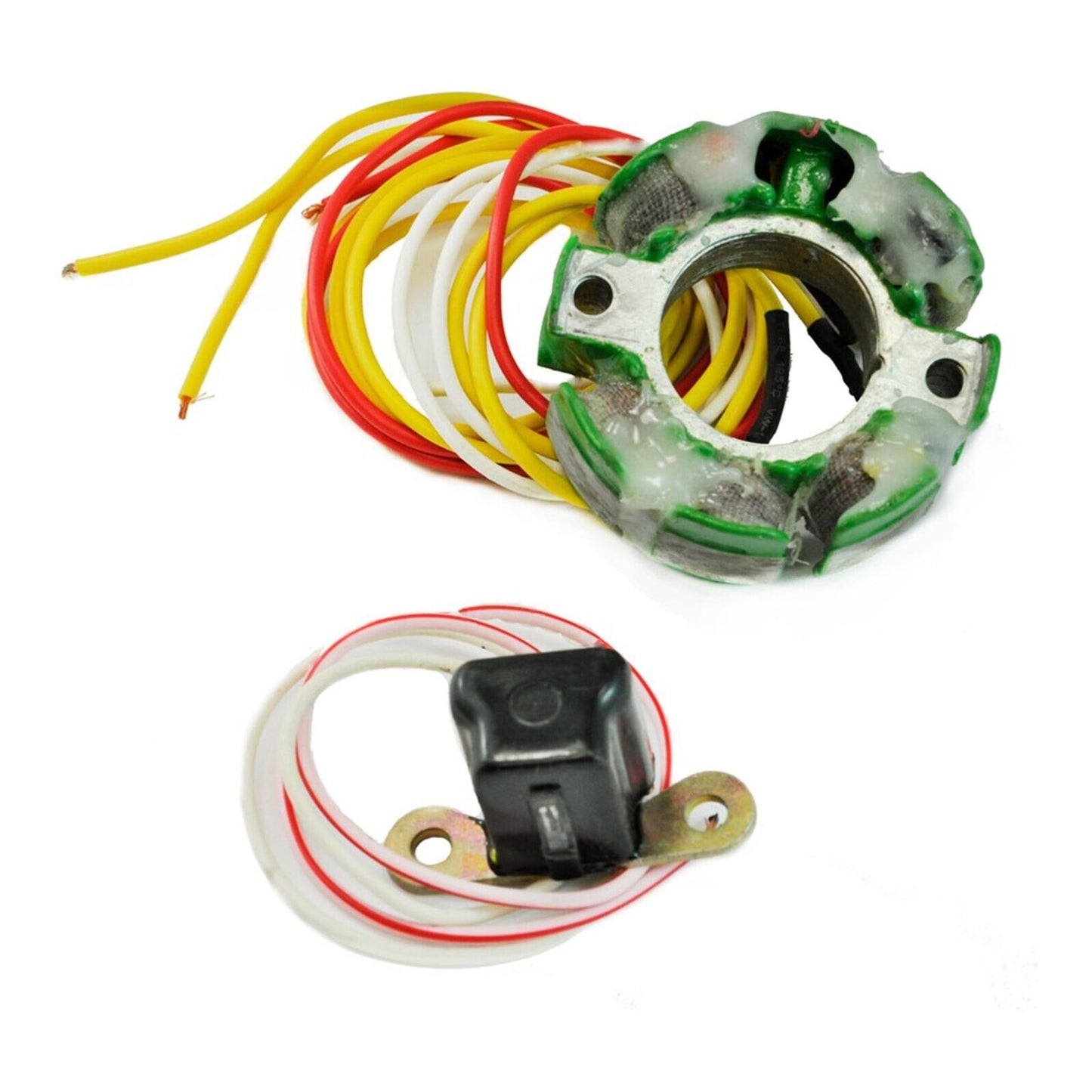

Kit Stator + Pickup Suzuki RM125 / RM250 '94-'01 (RM22843)

Kit Stator + Pickup Suzuki RM125 / RM250 '94-'01 (RM22843)

Regular price $329.90 NZD
Regular price Sale price $329.90 NZD
Sale Sold out
Tax included.
  • You must re-install your original connector and grommet (see picture)
  • Once your connector and grommet is re-installed, our part becomes a plug-and-play unit, direct fit, and very easy to install
  • Pickup pulsar coil included (separate)
  • Higher grade of electric components
  • Highest grade of copper winding, resistant to 200 degrees Celsius
  • All shipped products are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

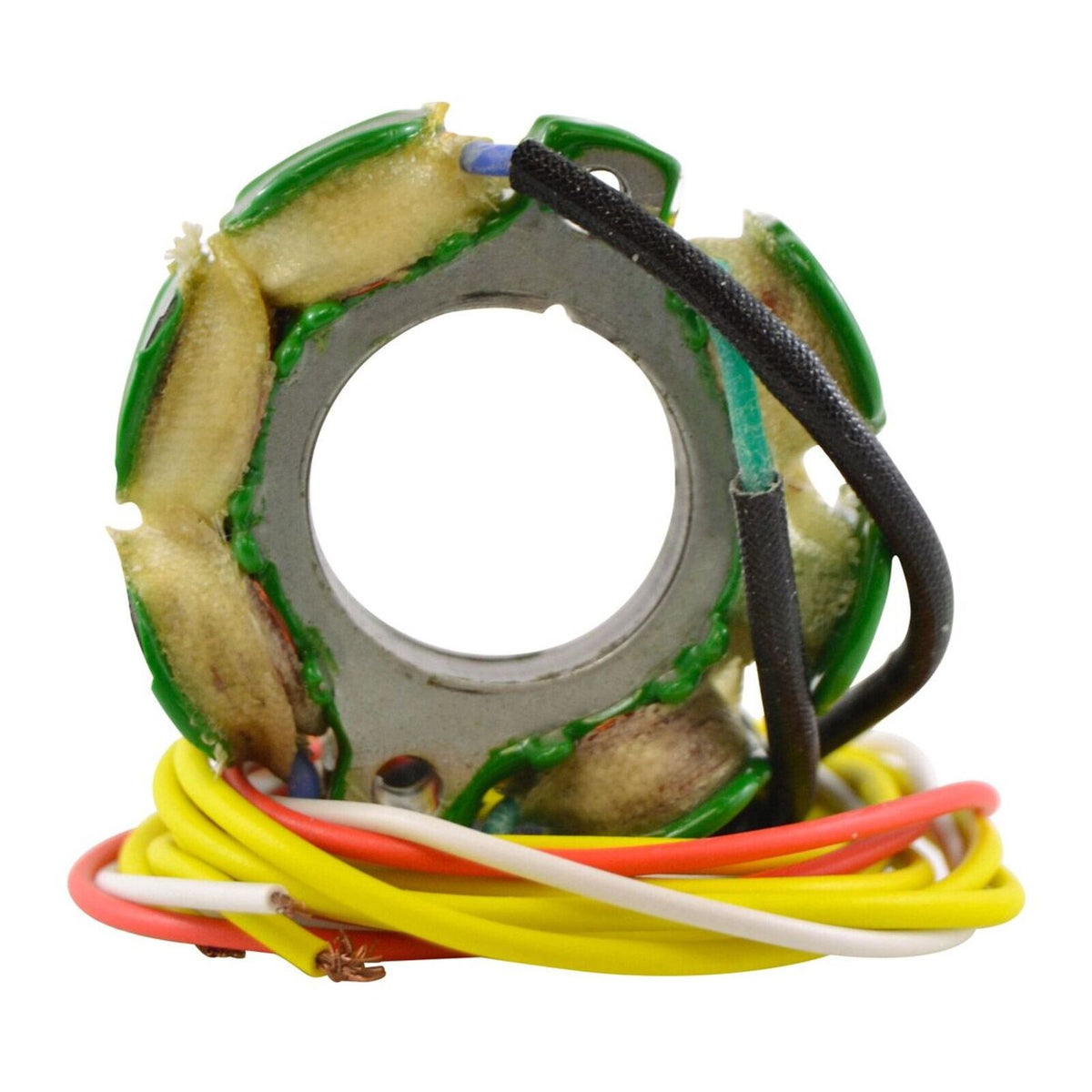

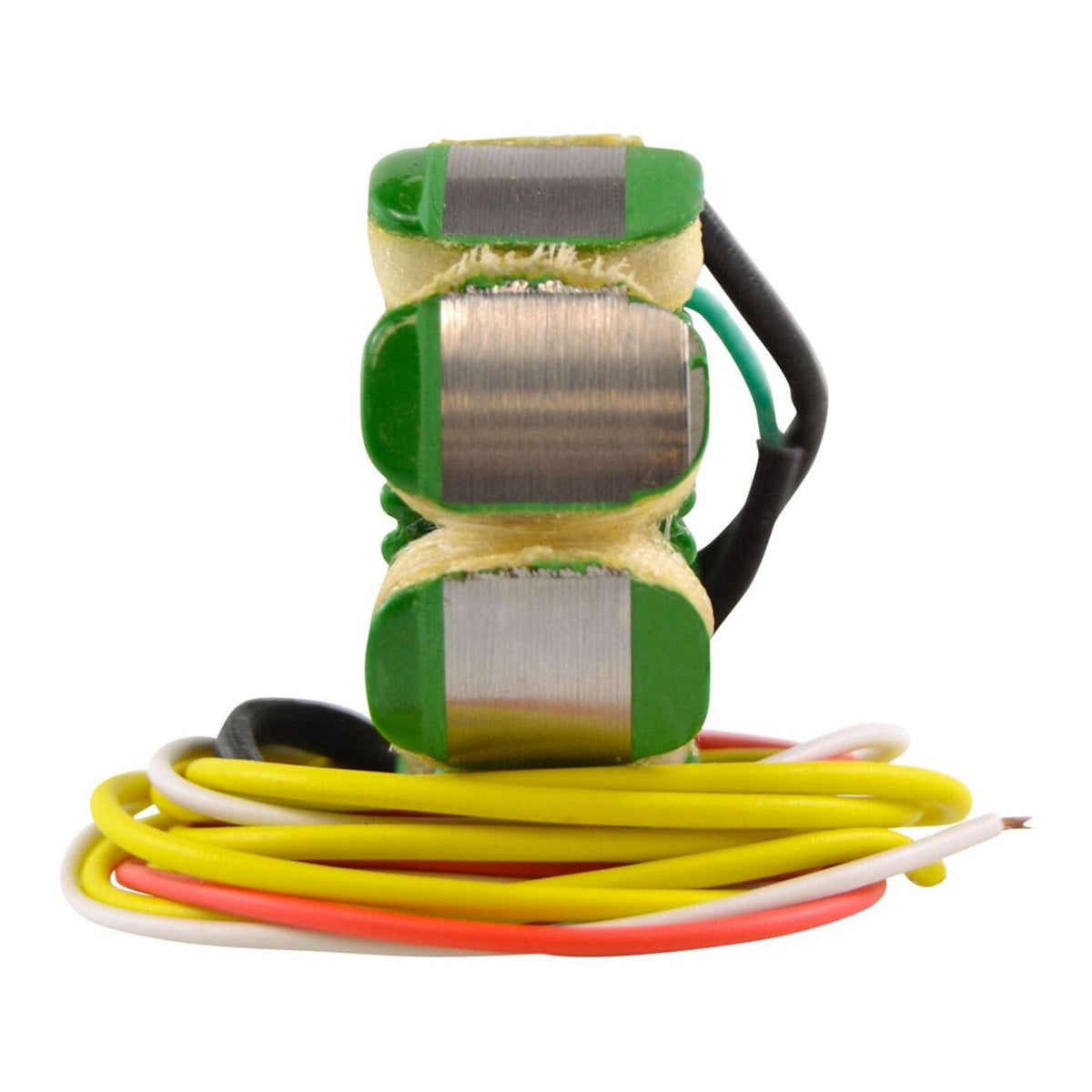

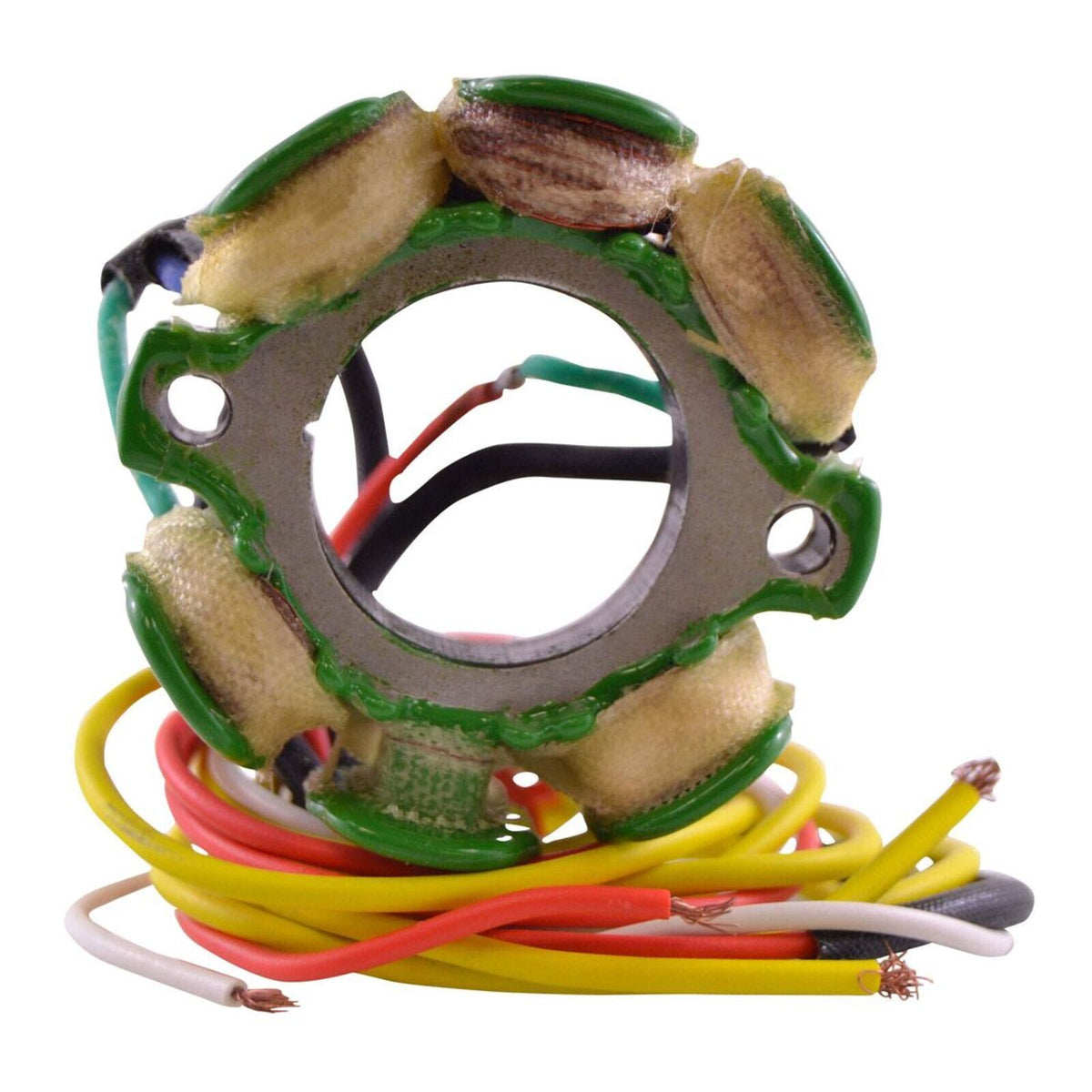

Dimensions Stator:

Physical Dimensions:

  • Interior diameter: 28mm
  • Exterior diameter: 57mm
  • Thickness: 15mm
  • Length of wires stator to terminals: 600mm

Other specifications:

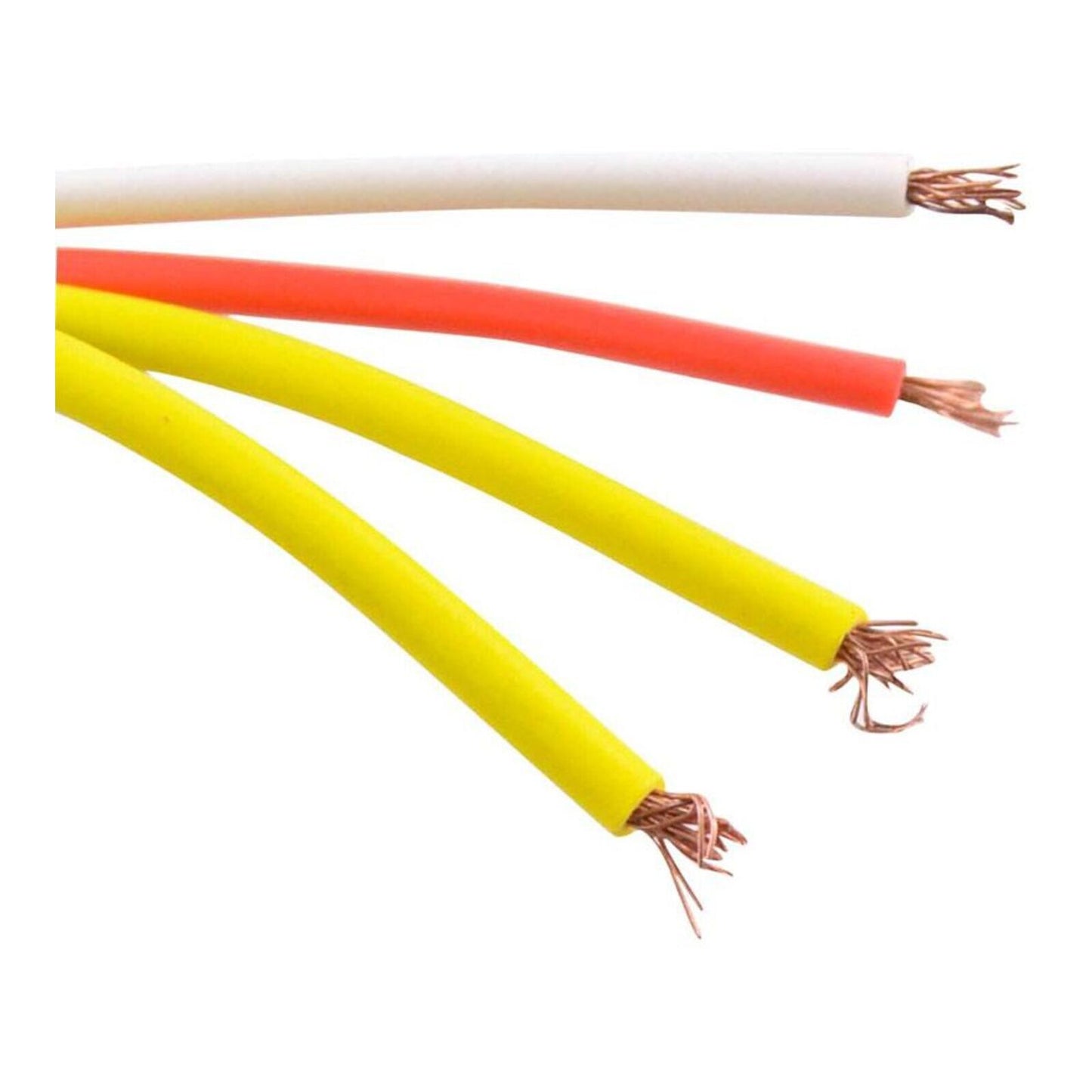

  • Number of wires: 4
  • Number of plugs: 0
  • Number of terminals: 4

Wire to wire resistance:

  • Source 1 : Red to White = 28 ohms +/-20%
  • Source 2 : Yellow to Yellow = 0.4 ohms +/- 20%

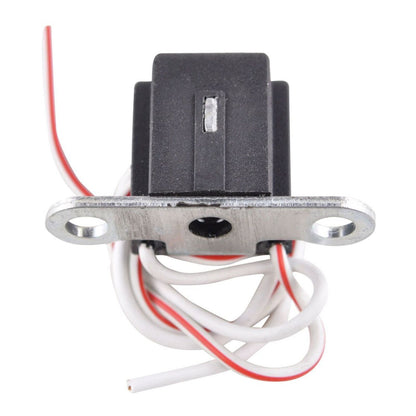

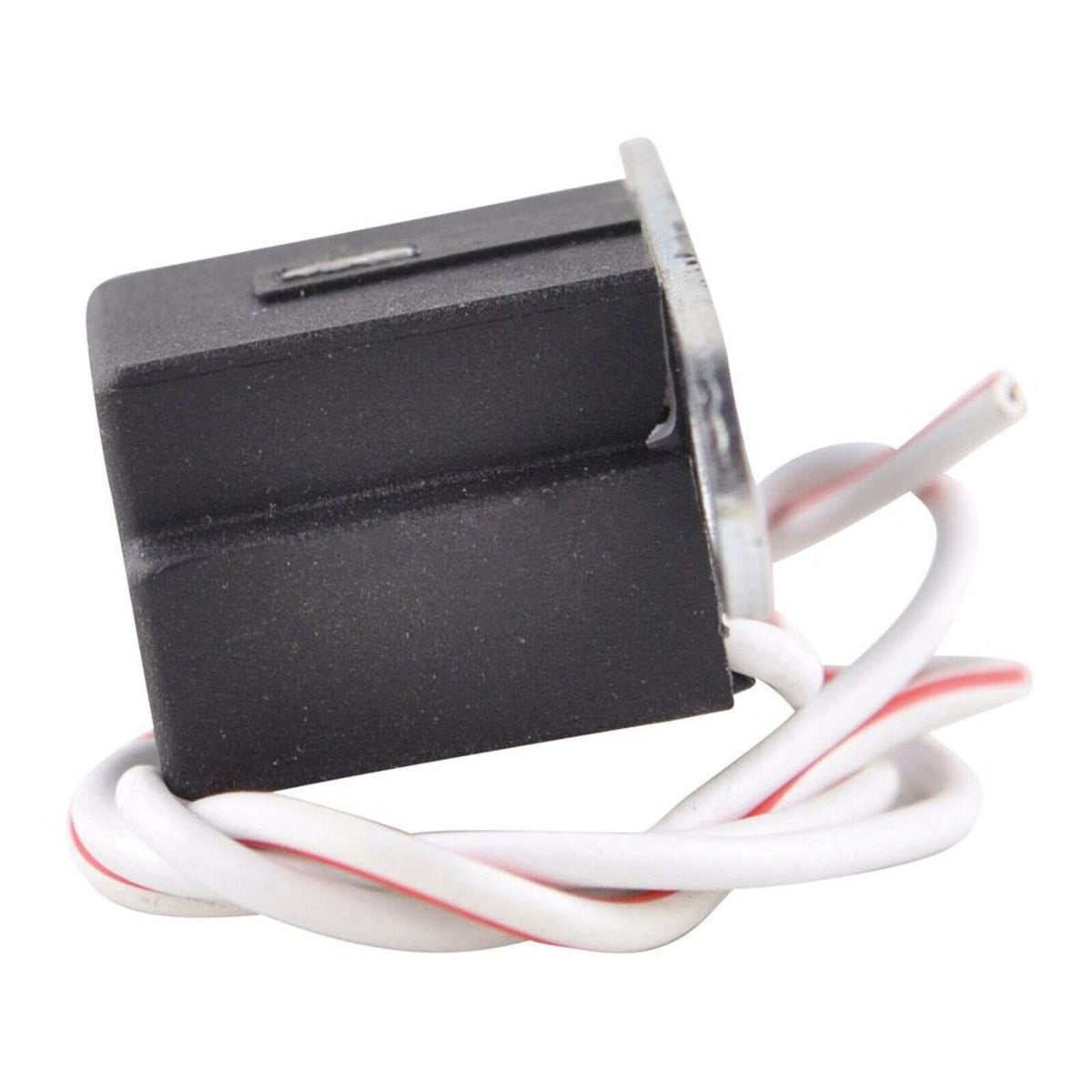

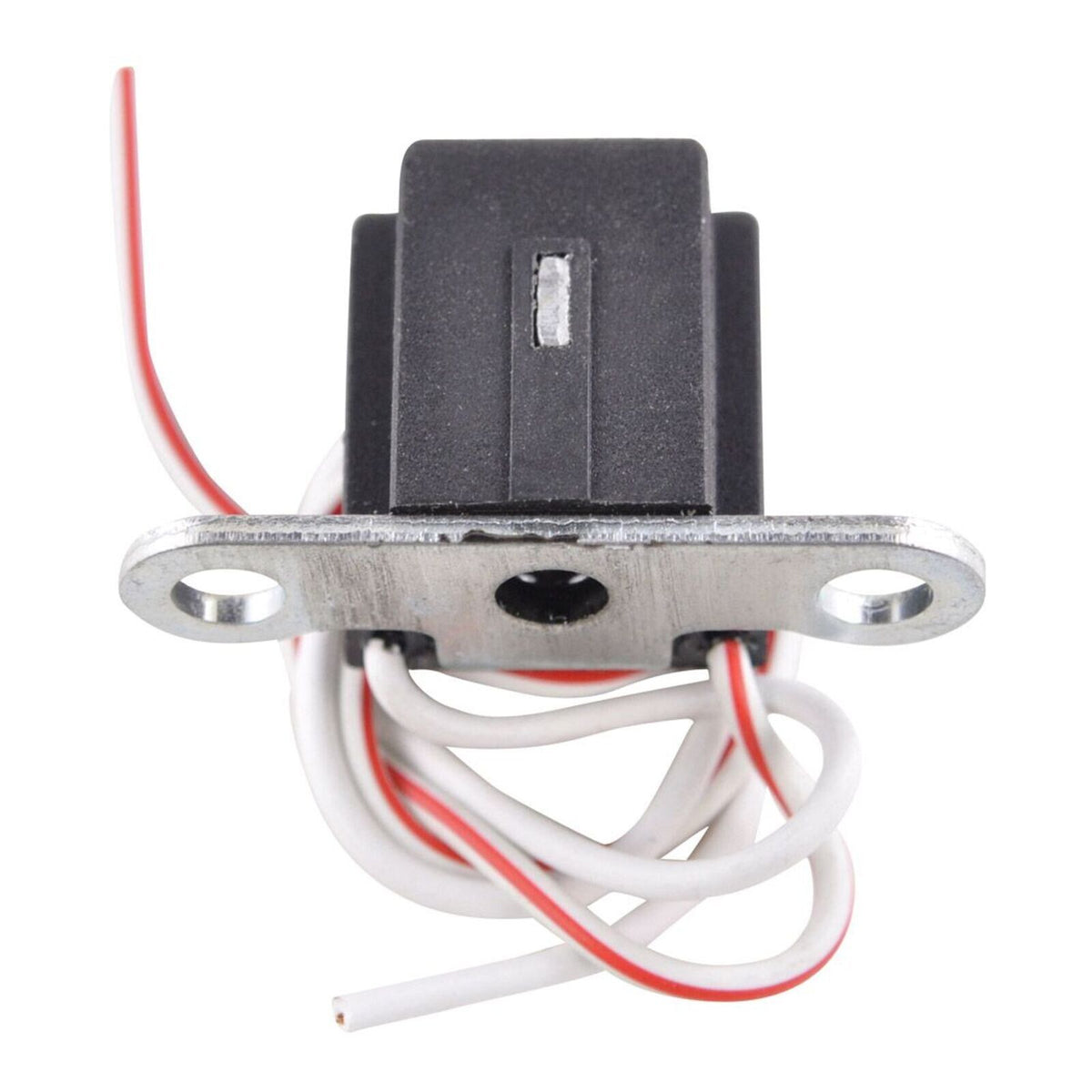

Dimensions Pickup Pulsar Coil:

Physical Dimensions:

  • Height: 25mm
  • Length: 22mm
  • Width: 18mm

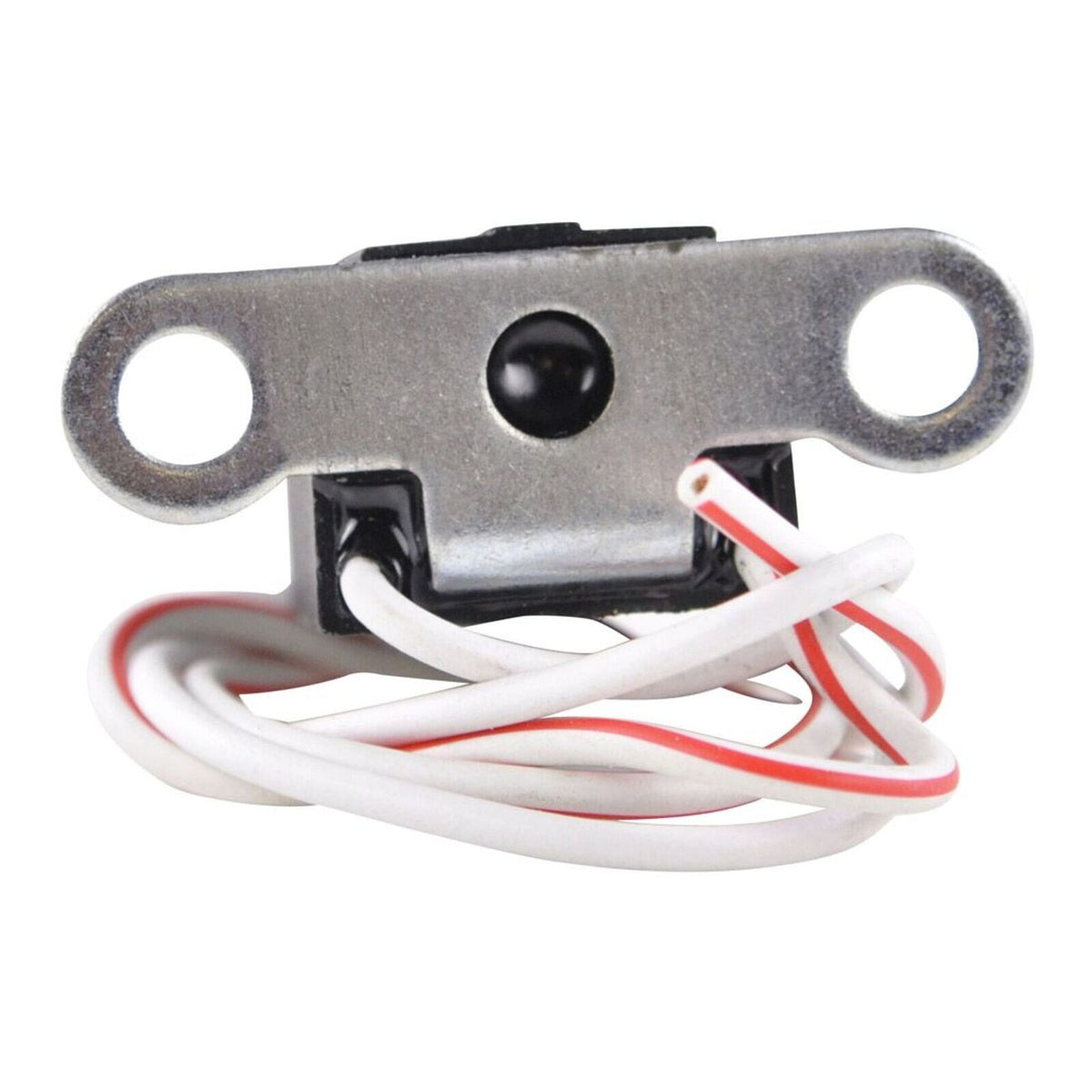

  • Bracket centre to centre: 35mm
  • Wires length: 90mm

Other Specifications:

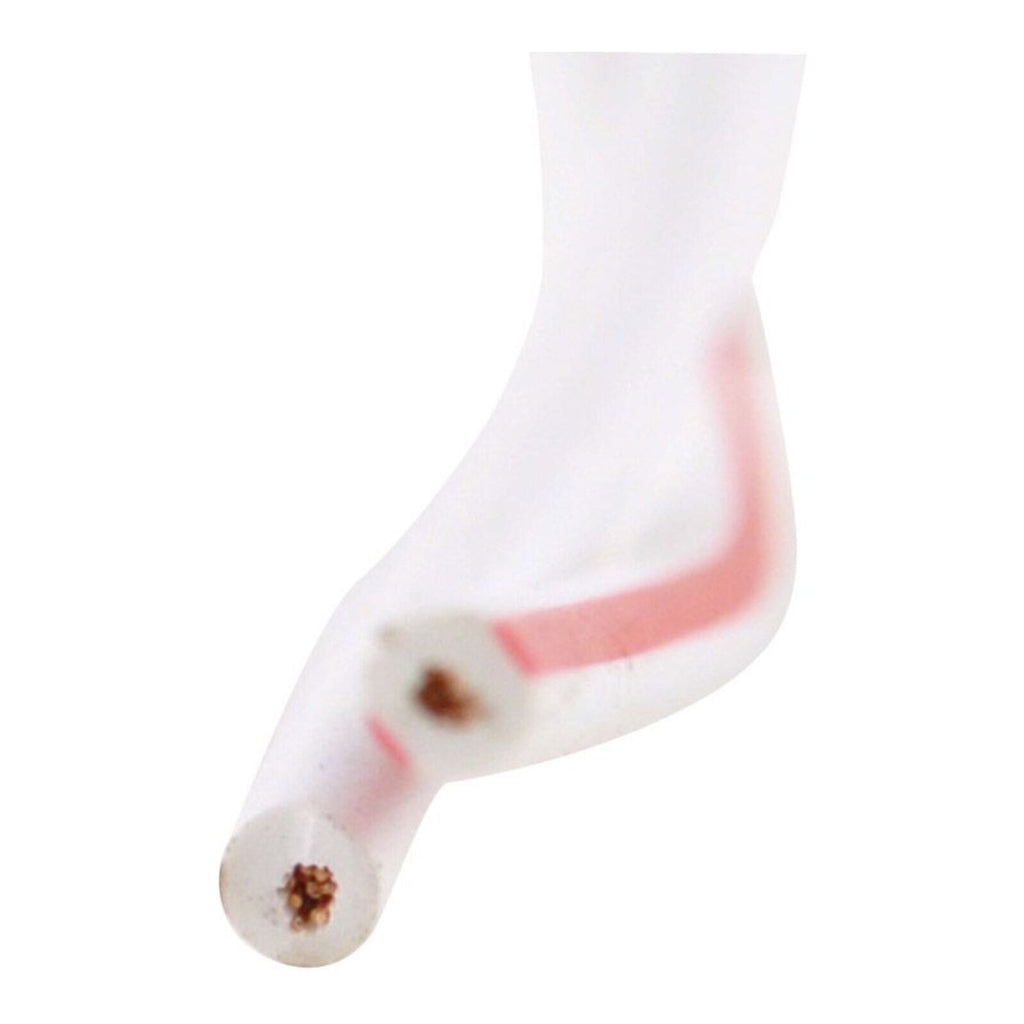

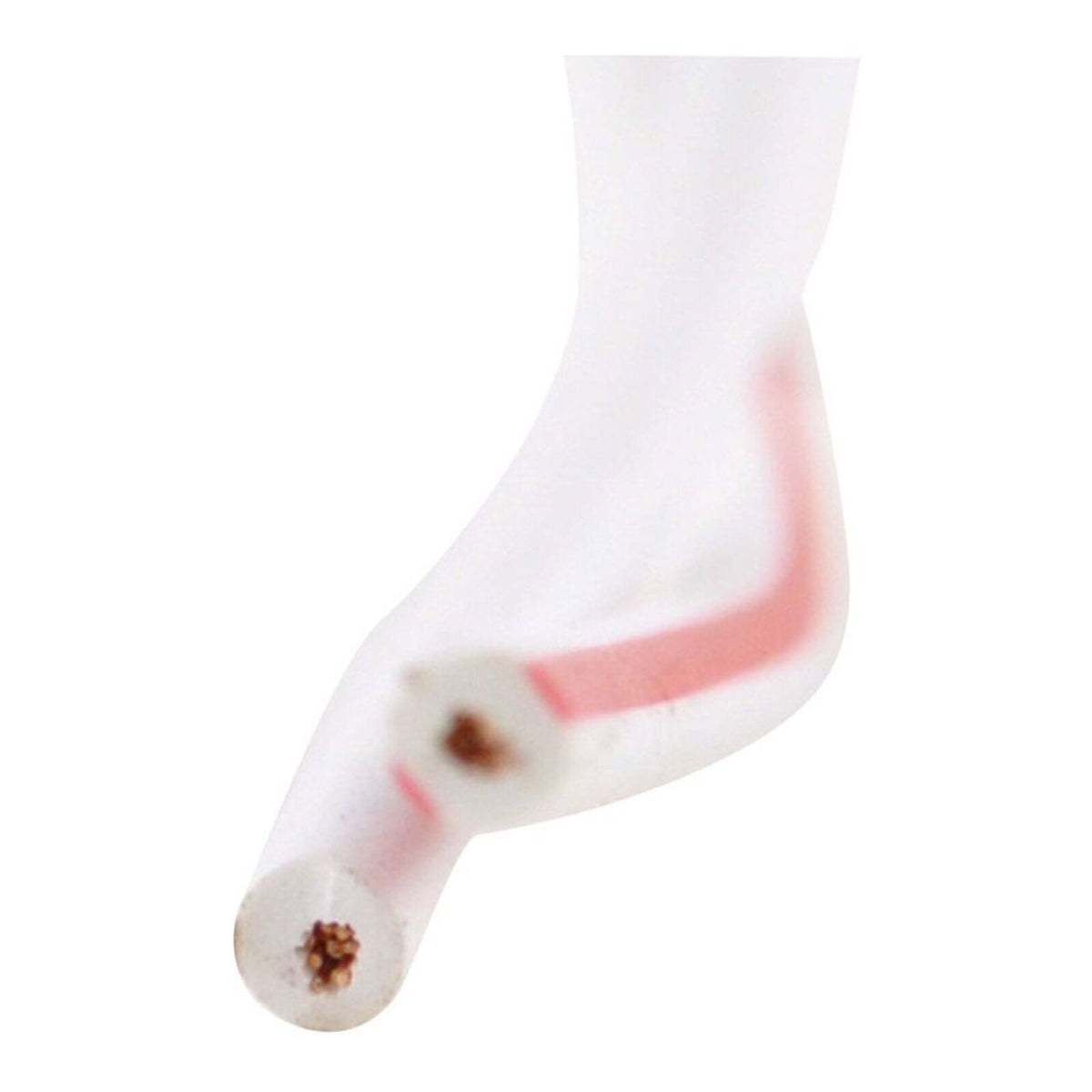

  • Number of wires: 2
  • Number of pins: 2

Wire-to-Wire Resistance:

  • Pink/Red to White = 100 ohms +/- 20%
