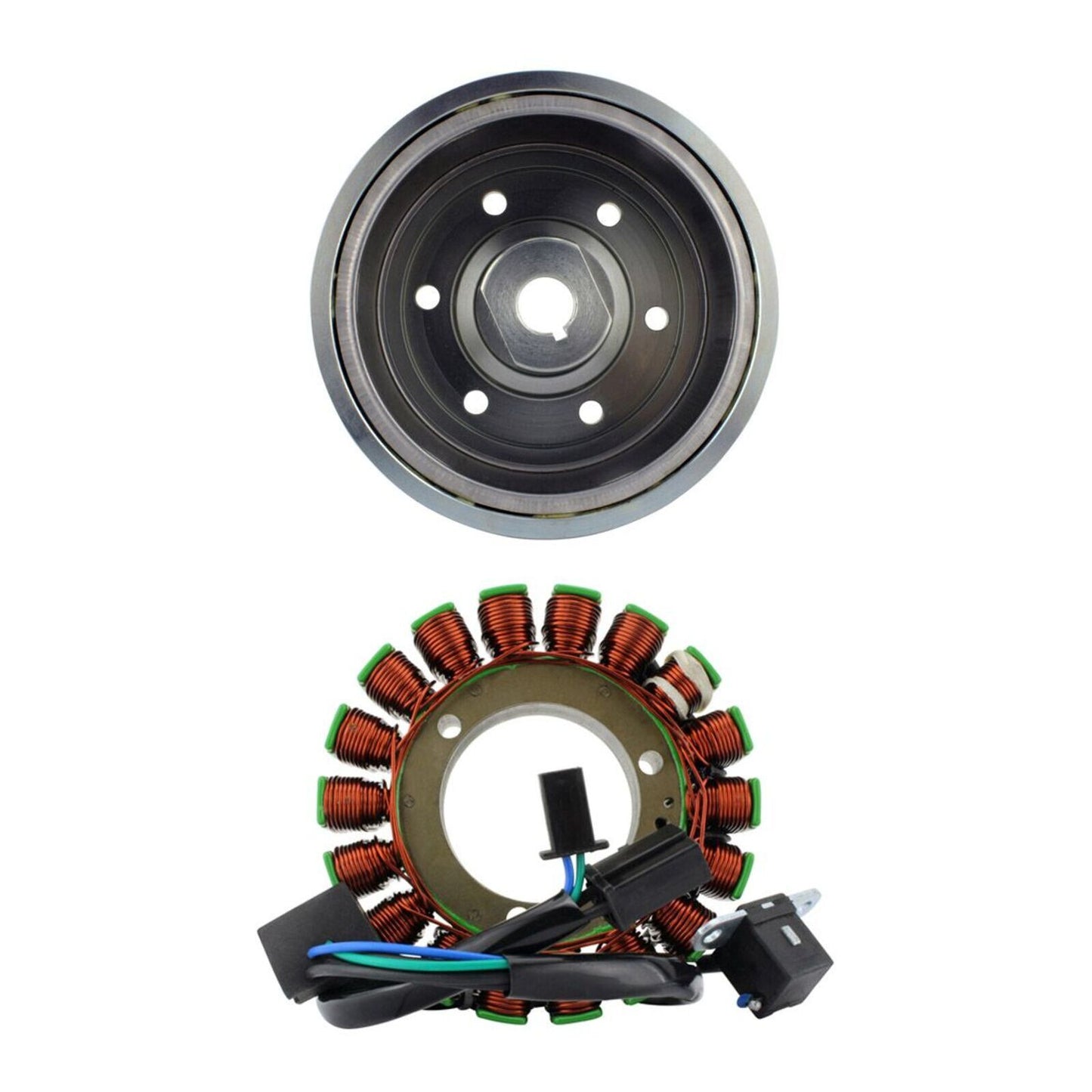

STATOR & FLYWHEEL KIT SUZ DL1000 02-09 & 12 (RMS900-108092)

STATOR & FLYWHEEL KIT SUZ DL1000 02-09 & 12 (RMS900-108092)

Regular price $869.90 NZD
Regular price Sale price $869.90 NZD
Sale Sold out
Tax included.
  • Direct replacement to your original unit.
  • Plug-and-play, direct fit, easy installation.
  • Highest grade of lamination materials.
  • Highest grade of copper winding, resistant to 200 degrees Celsius.

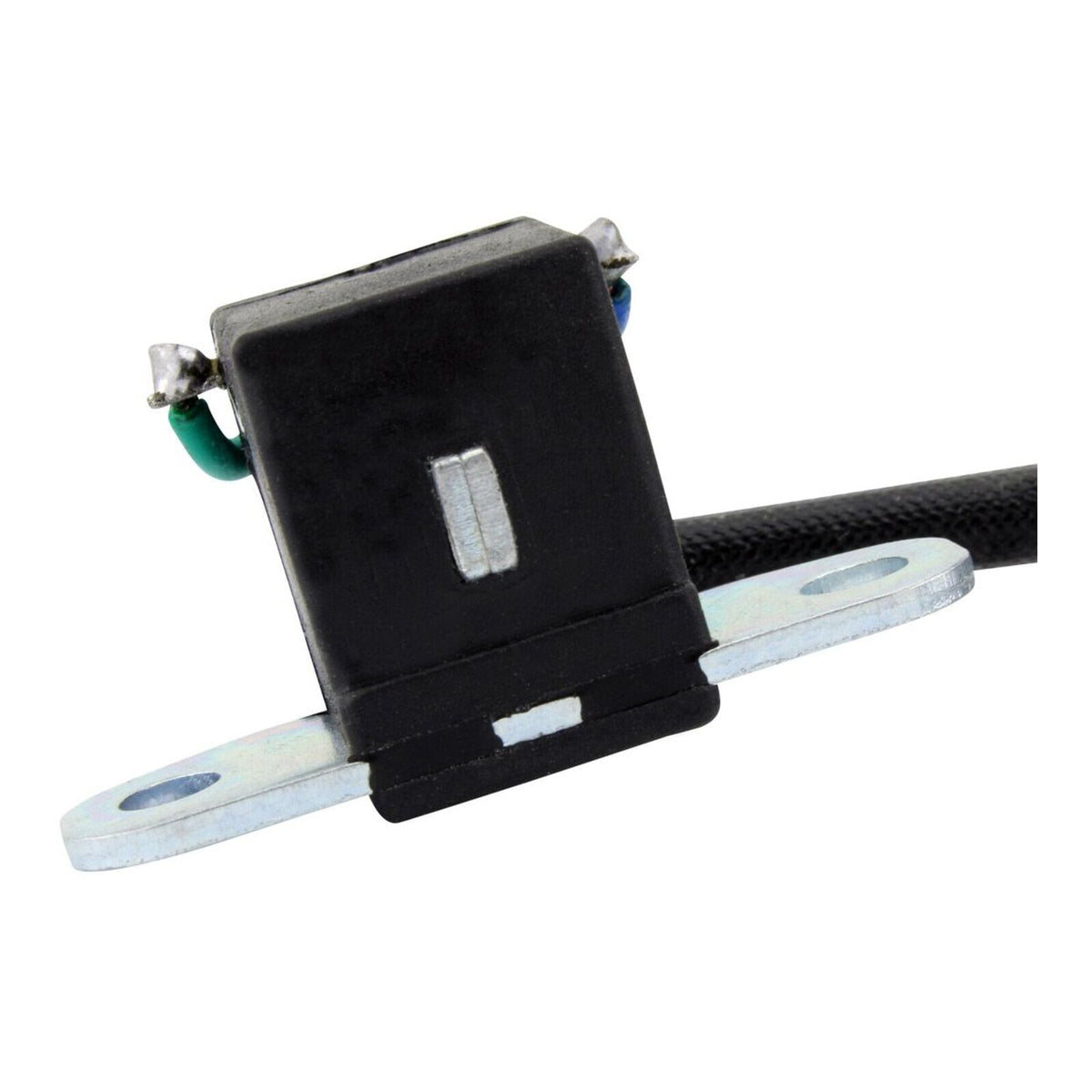

  • Pick up pulsar coil included.

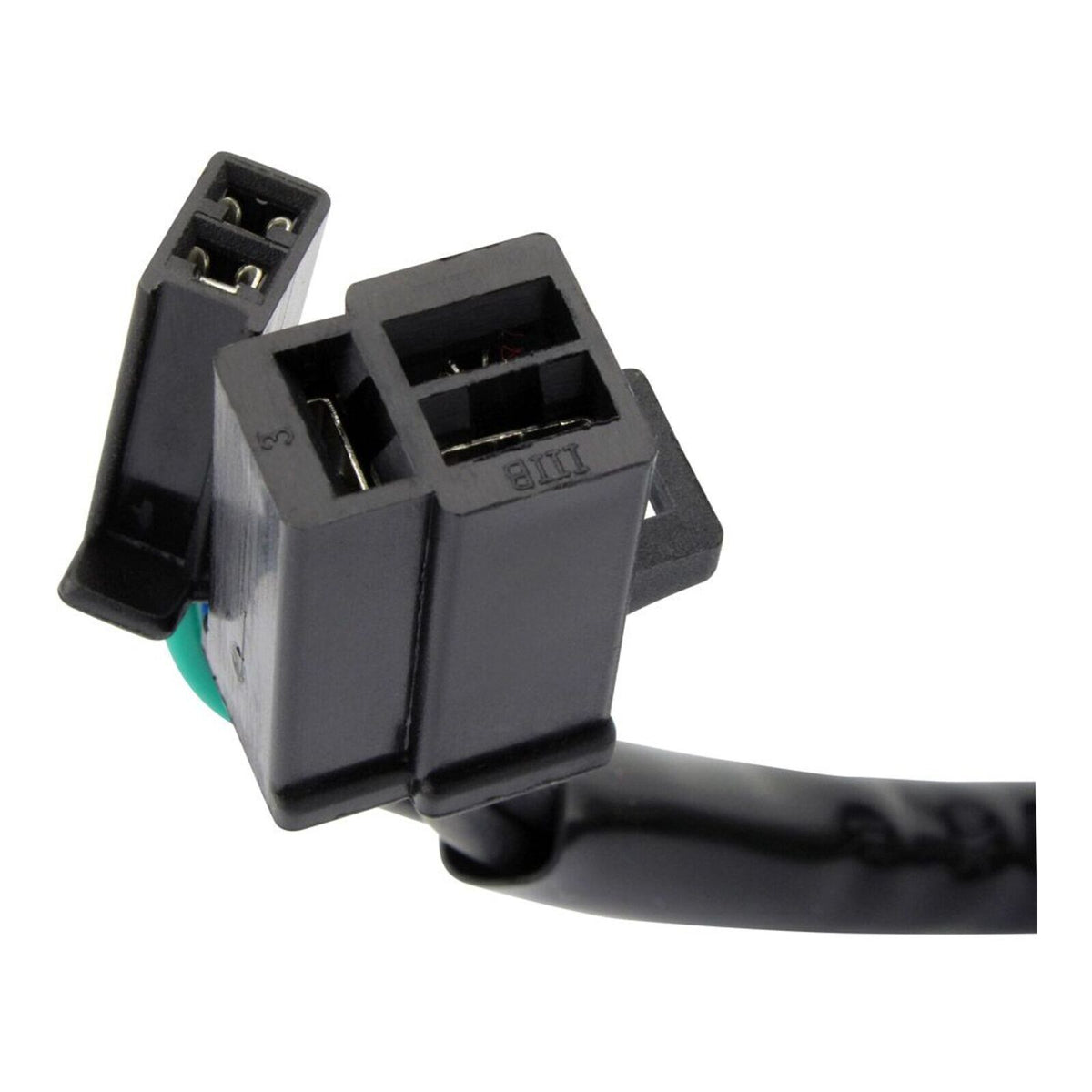

  • Connector included.

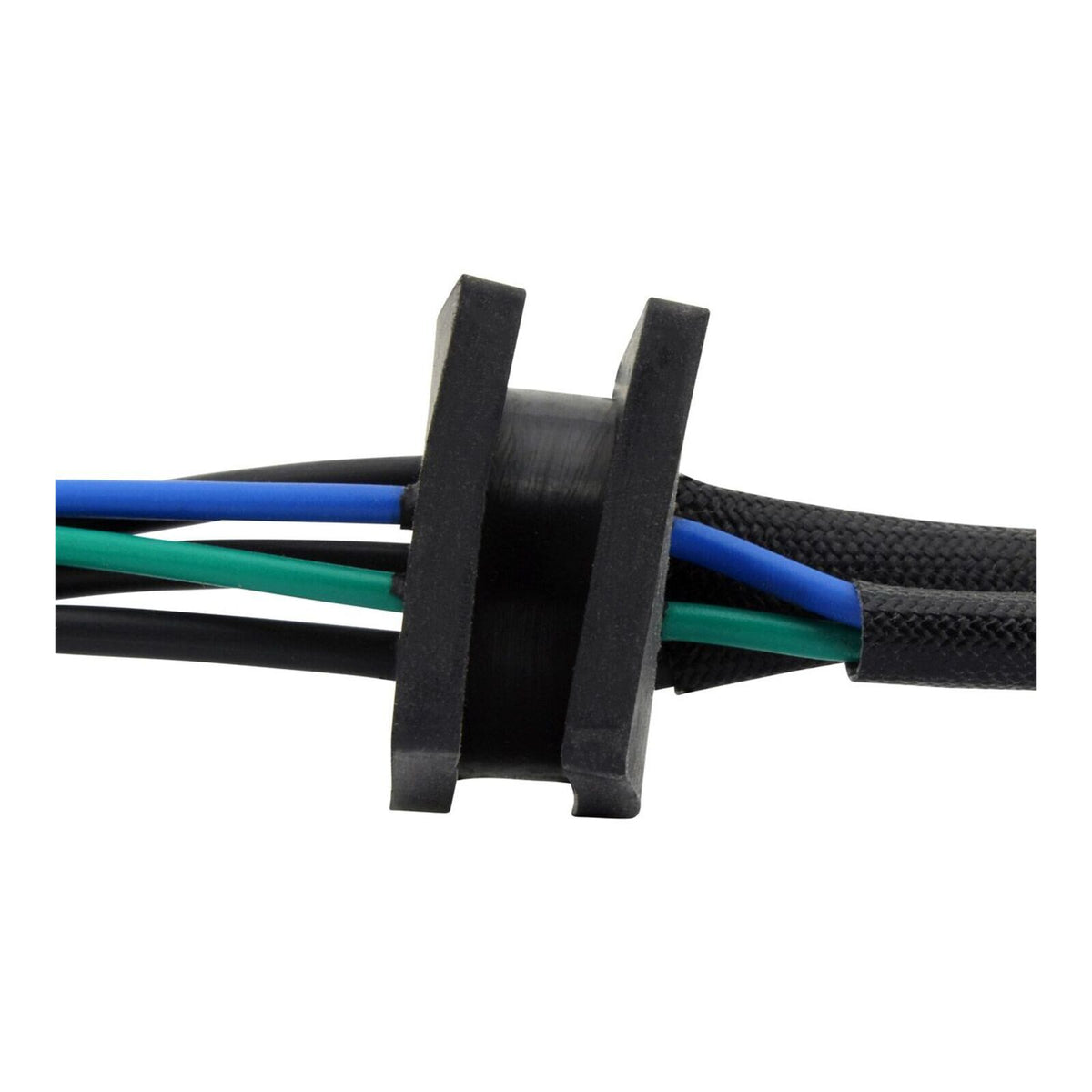

  • Rubber grommet included.
  • All products shipped are tested.

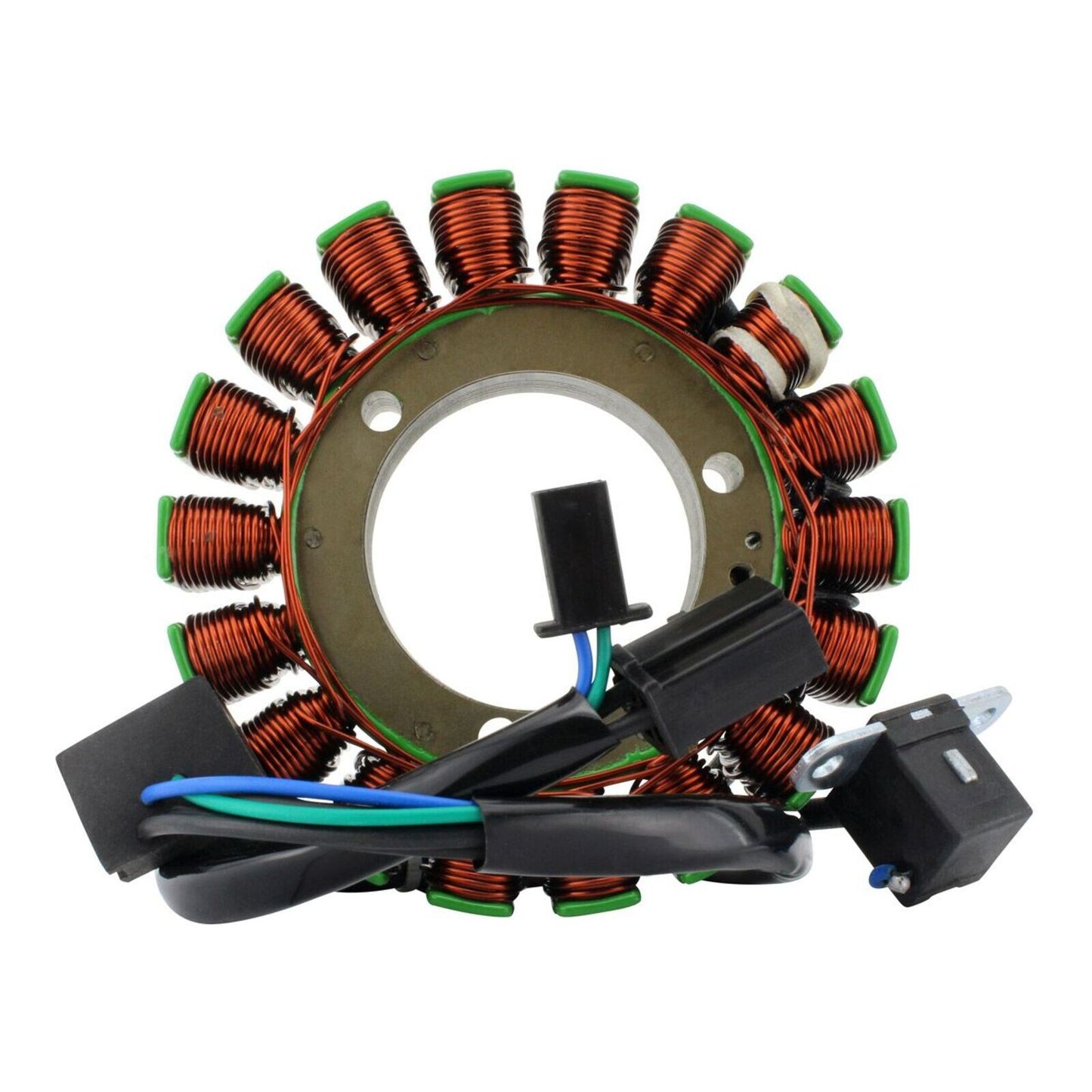

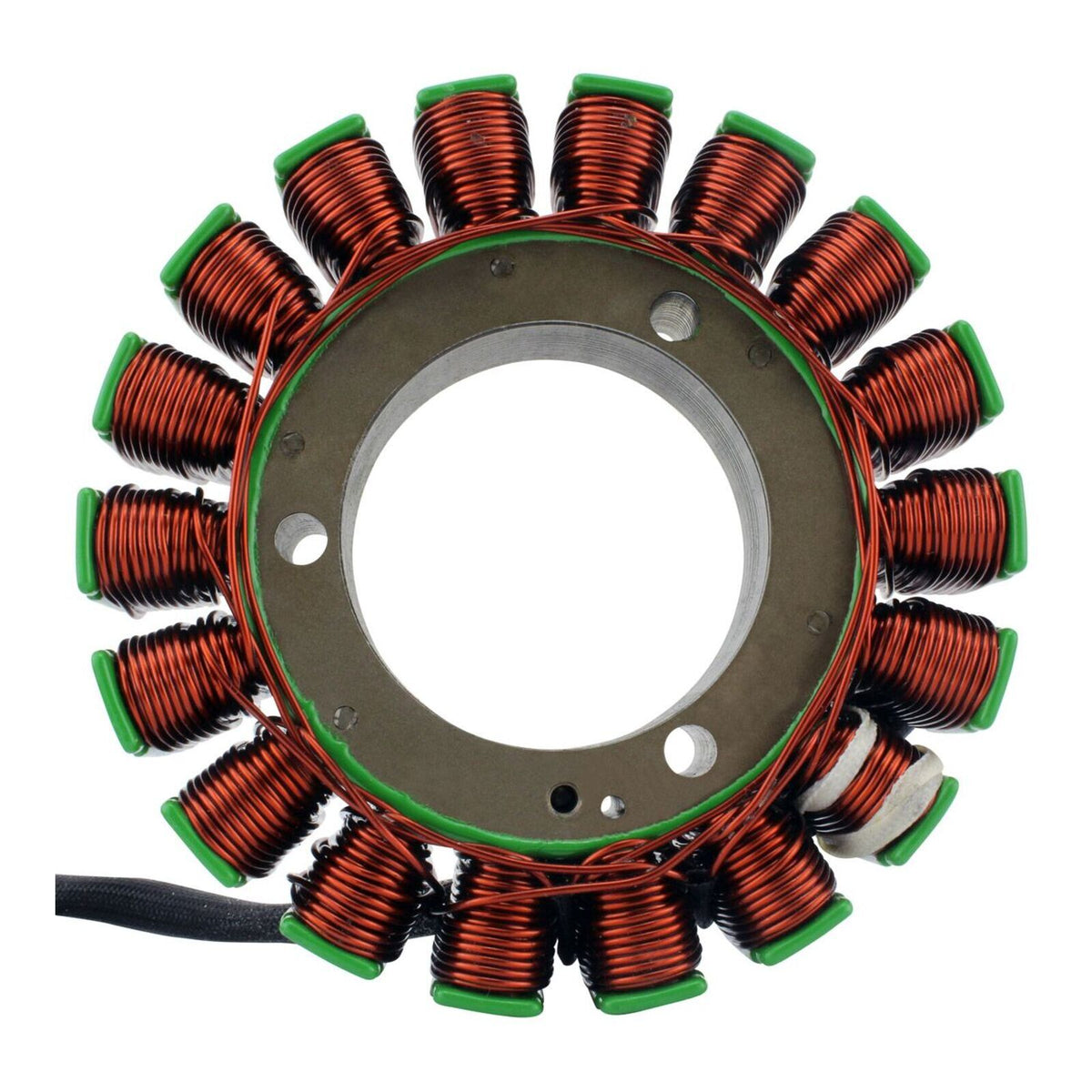

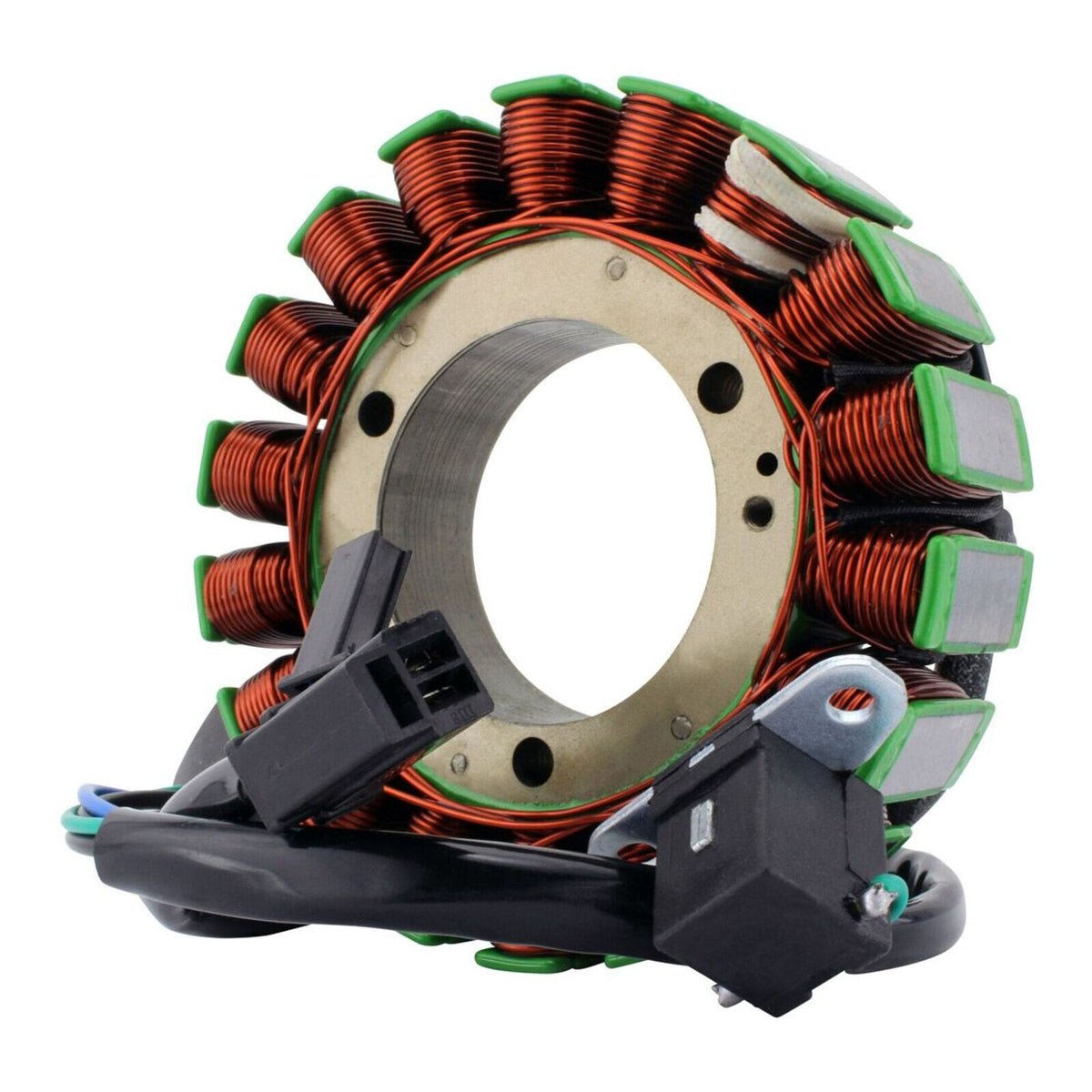

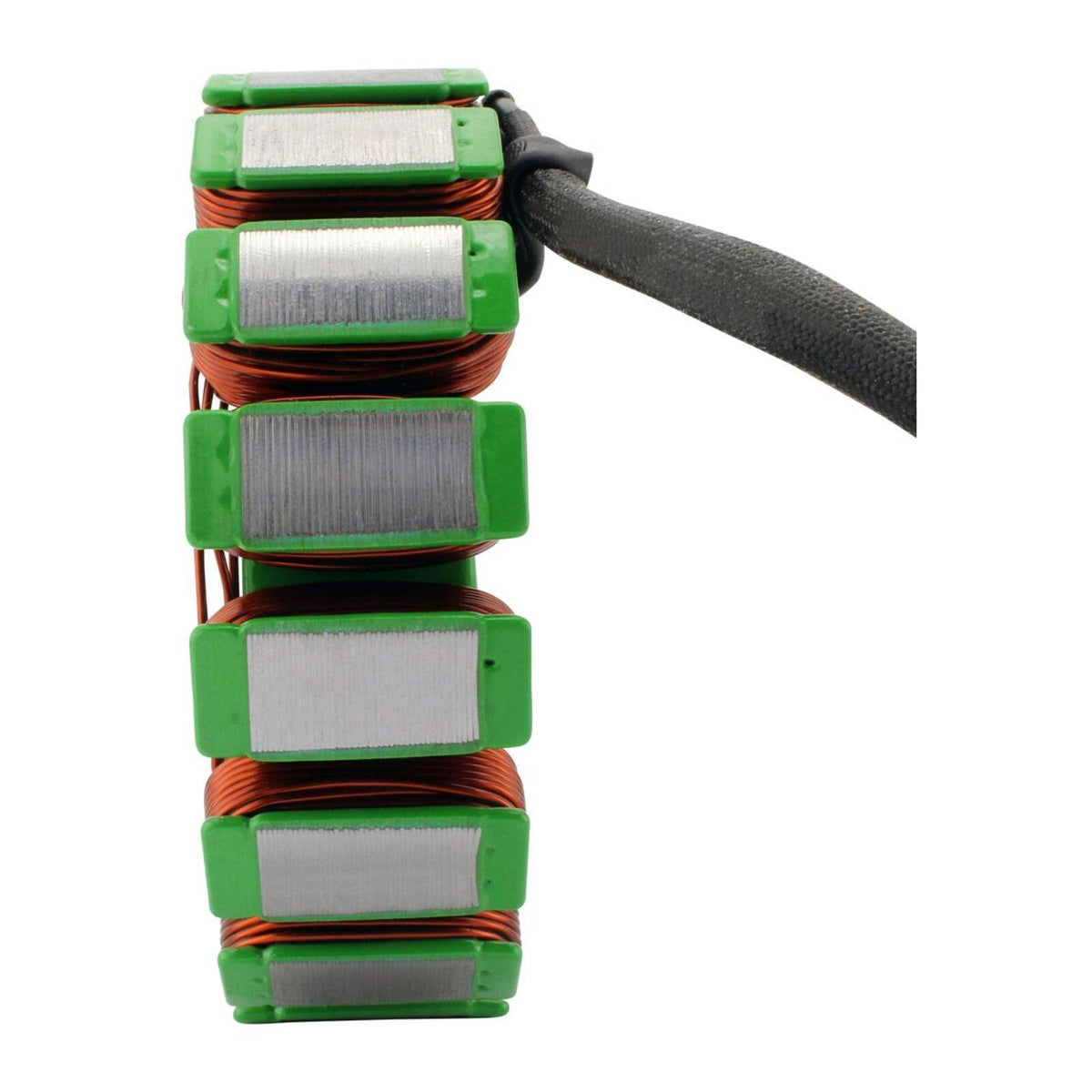

Stator:

  • Dim ensions:
    • Interior diameter: 54 mm
    • Exterior diameter: 119 mm
    • Thickness: 25 mm
    • Length of wires stator to grommet: 160 mm
    • Length of wires grommet to plug: 430 mm
    • Length of pickup coil's wire to grommet: 150 mm
  • Other specifications:
    • Number of wires: 5
    • Number of plugs: 2
    • Number of pins: 5
    • Number of poles: 18
    • Wire to wire resistance:
      • Alternator: Black to Black = 0.6 ohms +-20%
      • Pickup: Blue to Green = 193 ohms +-20%

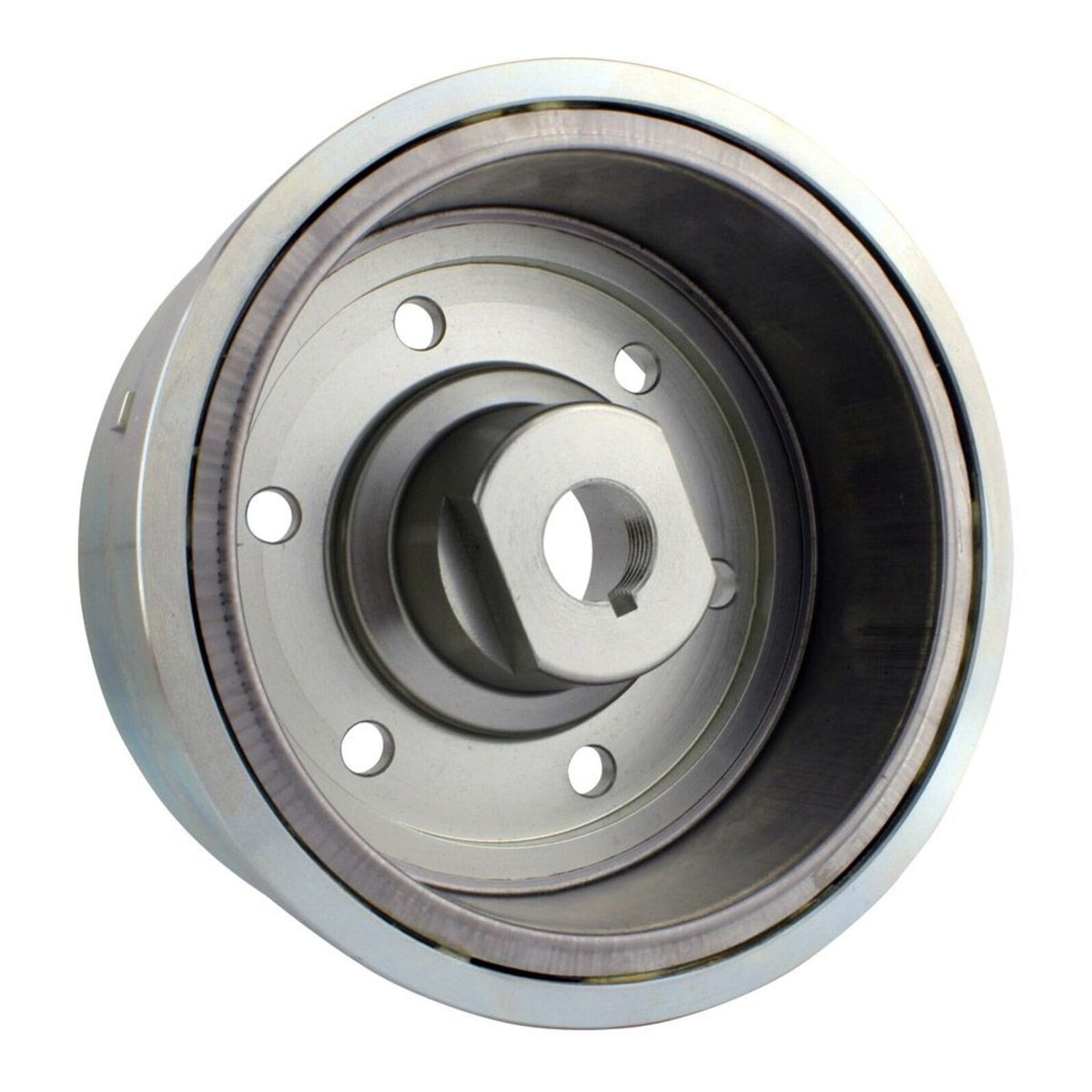

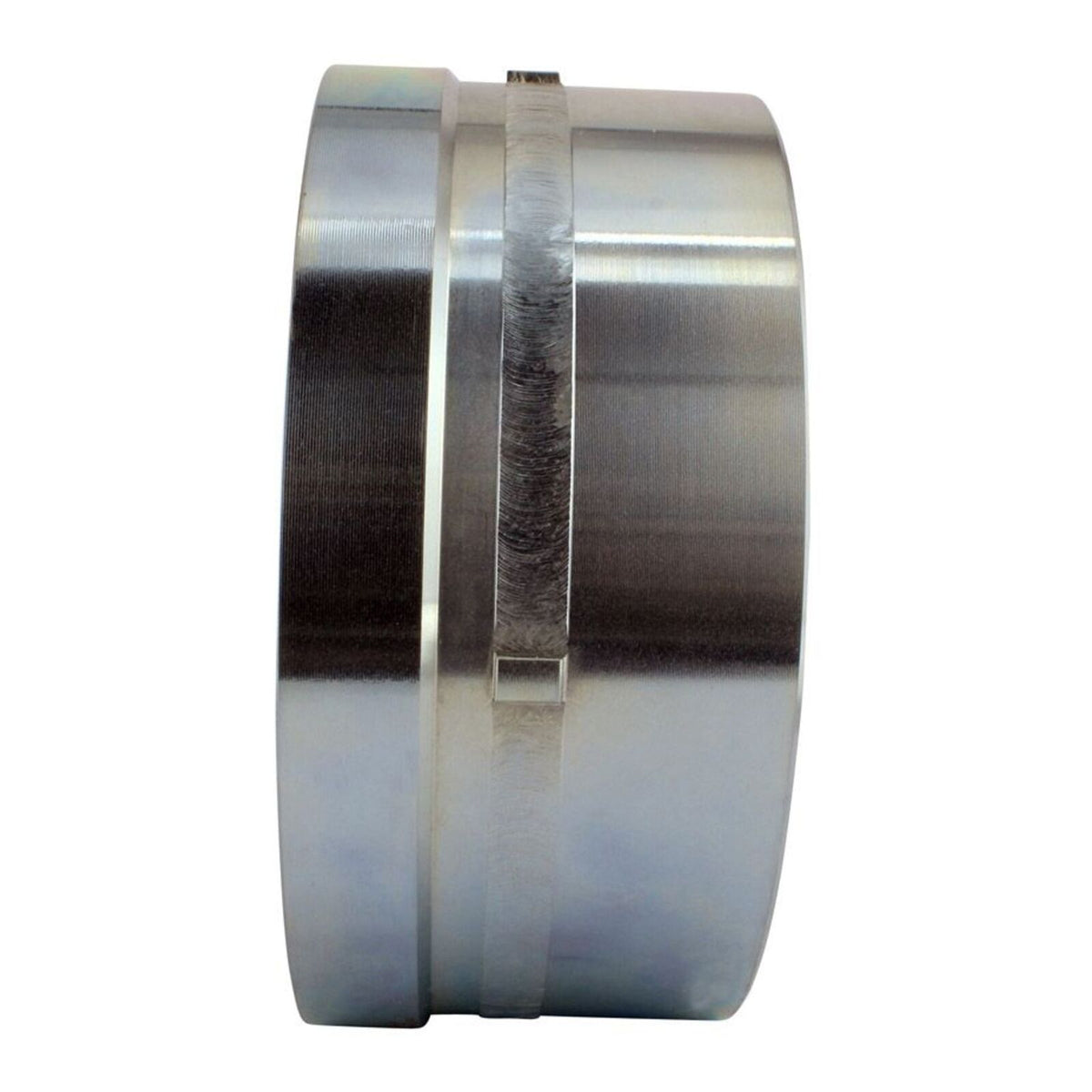

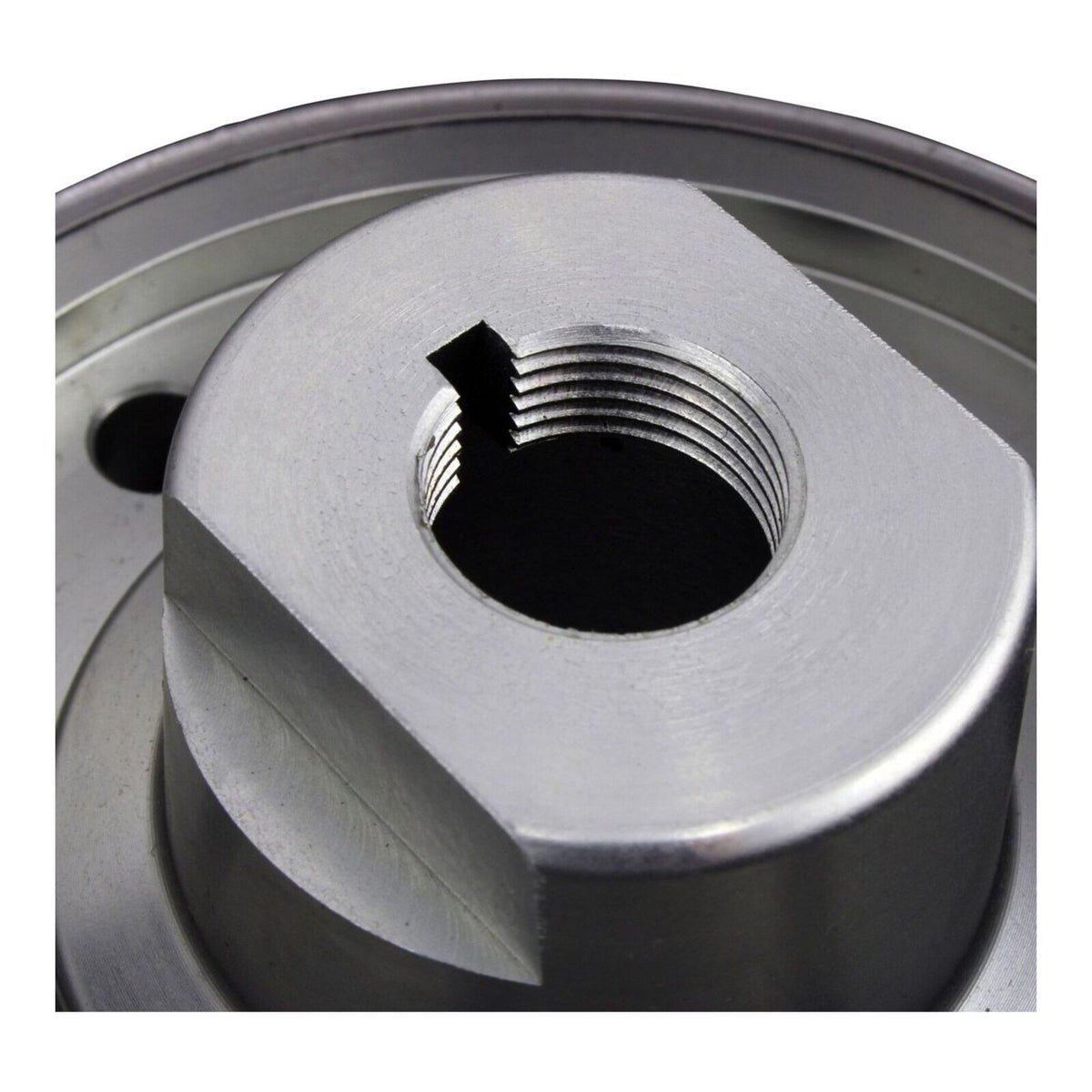

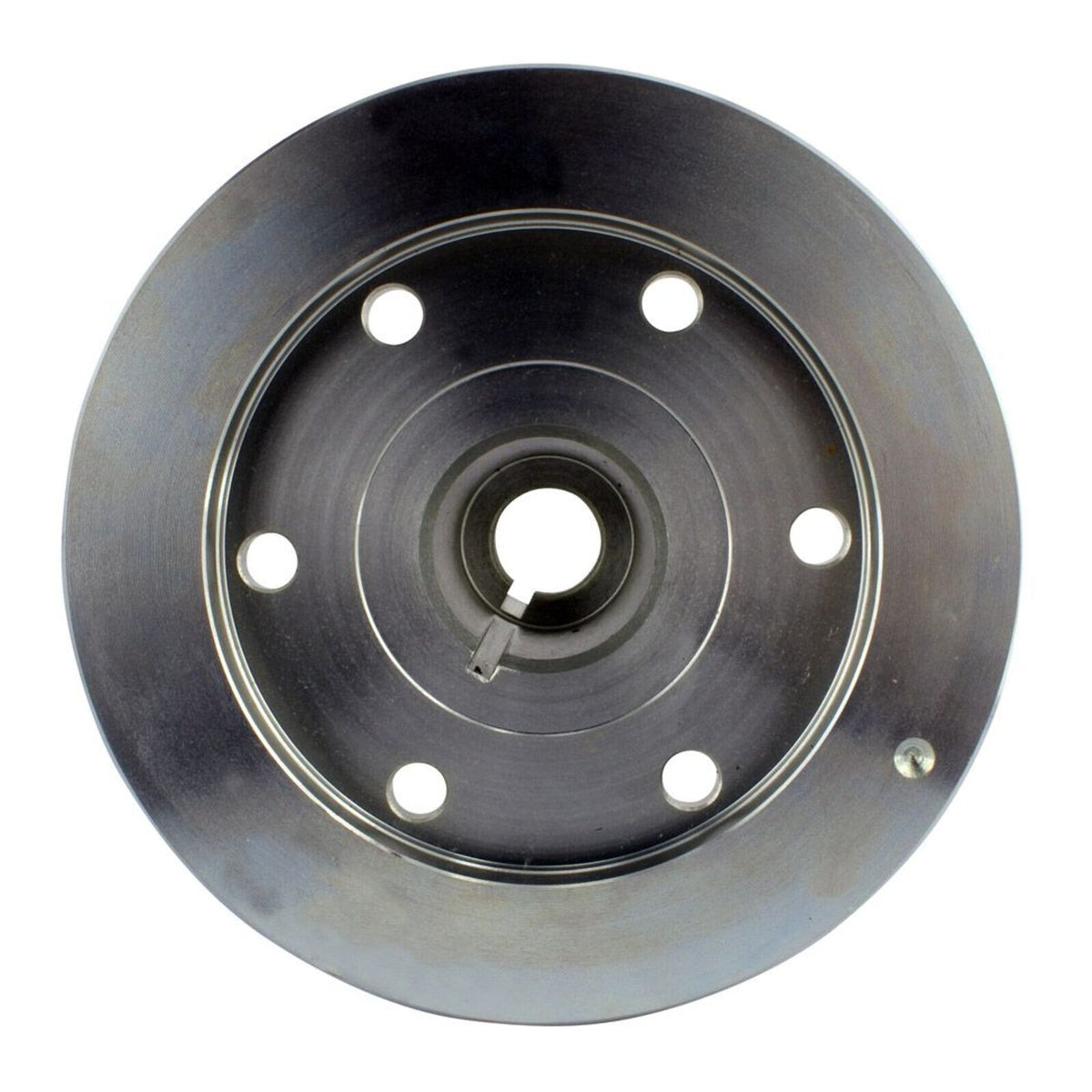

Flywheel:

  • Dimensions:
    • Inner Diameter: 120 mm
    • Outer Diameter: 149 mm
    • Total Height: 65 mm
    • Inside Height: 46 mm
    • Center Housing Depth: 35 mm
    • Center Housing Widest: 35 mm
    • Center Housing Thickness: 26 mm
