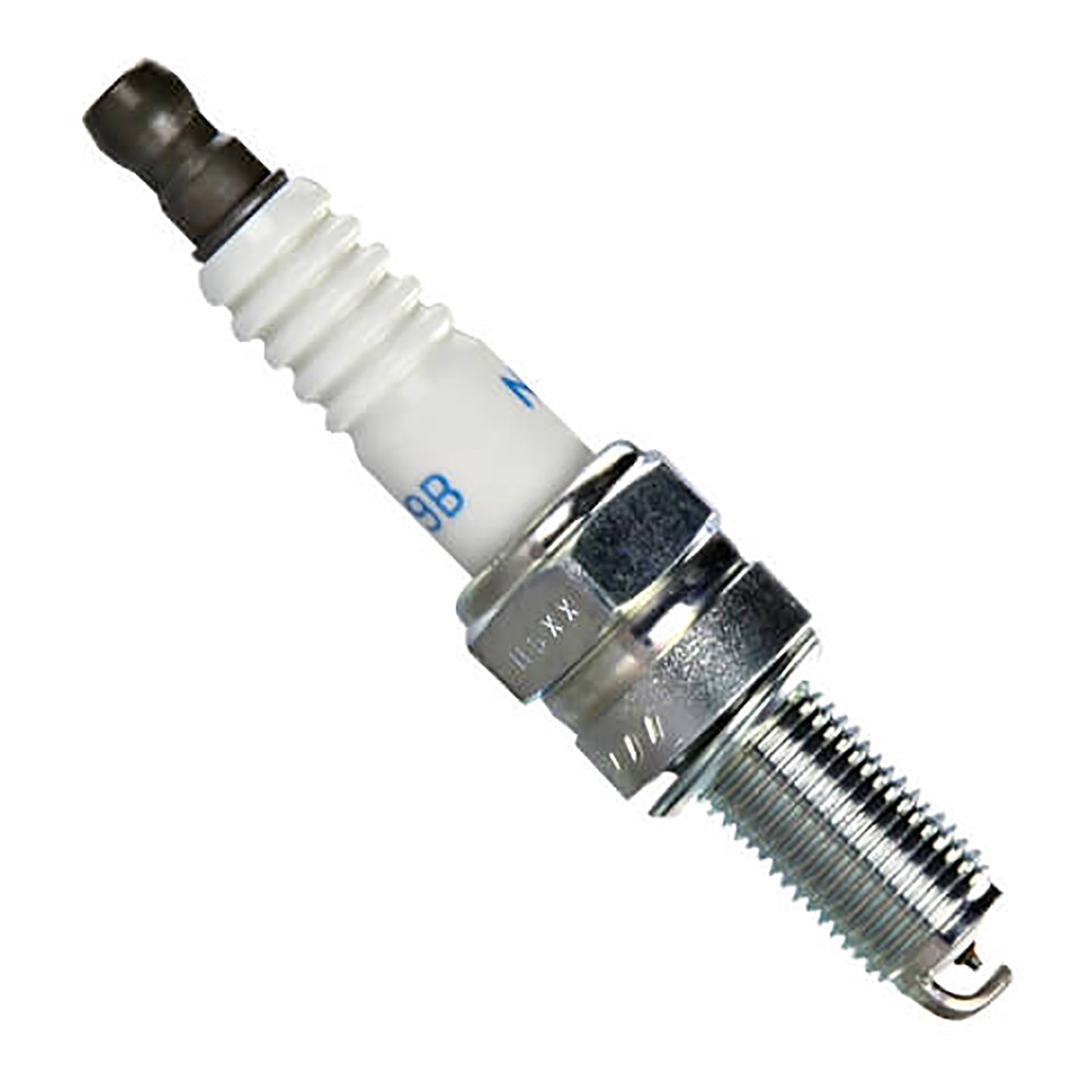

NGK Spark Plug - PMR9B (4717)

NGK Spark Plugs are world renowned for excellence & are designed to the highest standard. The fitment range is extensive, covering virtually all popular models. NGK Plugs are available in many variations including Standard, Resistor, Iridium & Platinum options – depending on model & OEM specification requirements. Please follow manufacturer’s guidelines for plug service life.

NGK have over 80 years of experience in spark plug manufacturing and are the world leader in spark plug technology. NGK has an extensive range of spark plugs, each with their own unique characteristics specifically engineered to its application and designed to suit a broad range of motorcycles, ATVs & UTVs in Australasia. With NGK's dedication to quality, outstanding reliability and state of the art manufacturing techniques, you can rely on your NGK Spark Plugs.

Don’t just ask for a spark plug, insist on NGK.

Laser Platinum spark plugs are equipped with a platinum plate on the middle electrode, which ensures a more constant output of the spark plug over the entire service life, even under difficult conditions. Based on its narrow middle electrode, it emits very little spark voltage, discharges the ignition coil, and ensures optimal combustion.

Shell

• Thread Size: 10mm
• Thread Pitch: 1.0mm
• Seat Type: Gasket
• Resistor Value: 5K Ohm
• Reach: 19mm (3/4")
• Hex Size: 16mm (5/8")
• Terminal Type: Solid
• Overall Height: Bantam
• Gap: 0.7mm (0.028")

Centre Electrode

• Material: Platinum
• Type: Fine Wire
• Size: 1.0mm
• Projection: Non-Projected

Ground Electrode

• Material: Platinum
• Type: Standard
• Quantity: 1

Specifications

• Heat Range: 9
