Oxford Battery Monitor

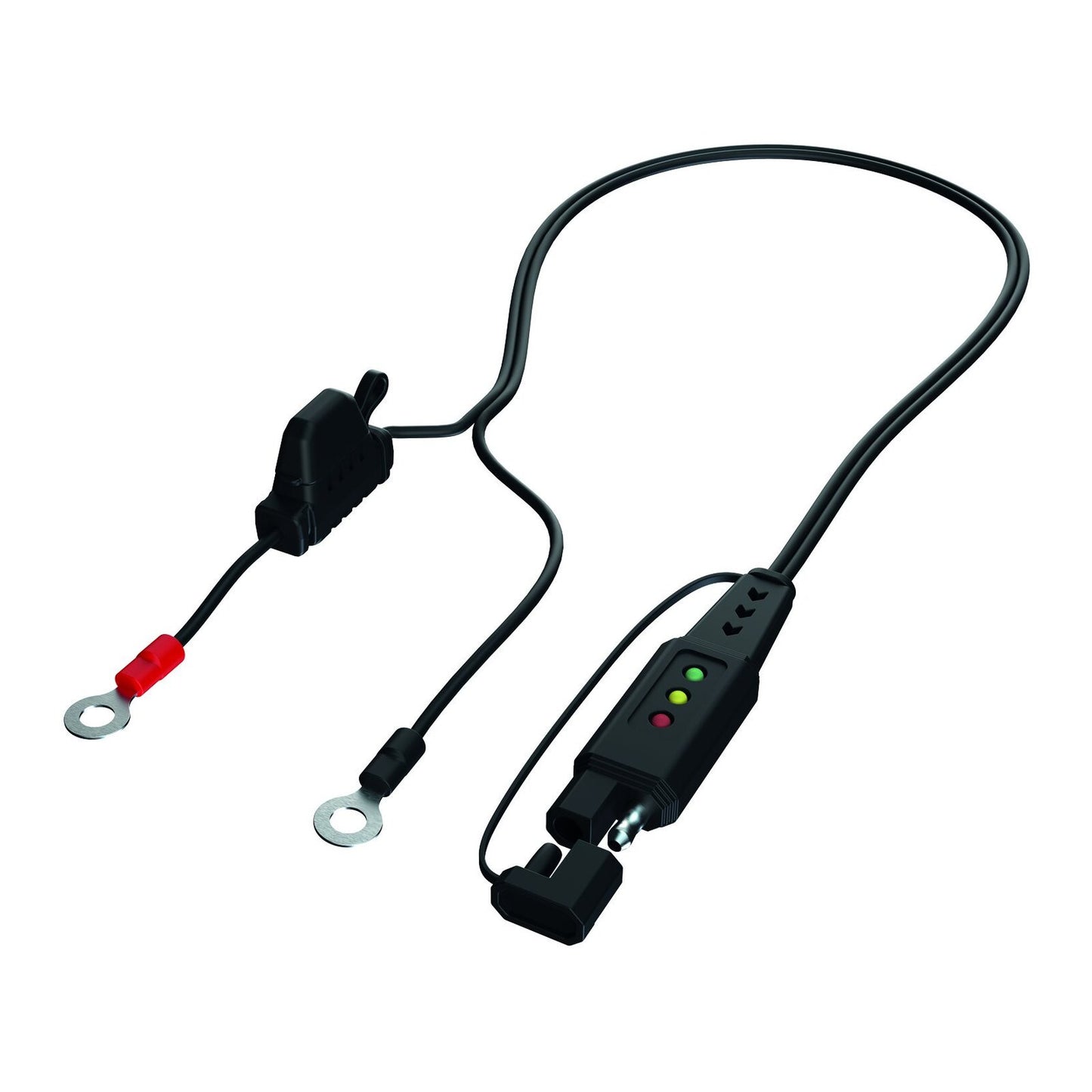

The easy-to-read battery charger uses a M6 ring connector to connect to the Lead acid battery. A traffic light system allows the user to easily tell if the battery is healthy or requires charging. The SAE connector then allows through charging, reducing the need for another permanent battery charger cable on the battery.

Supplied with 3 different fuses to work with every charger in the Oximiser Pro range (7.5A / 4A / 2A). Made from high quality 18AWG cable.

Features:

• Allows the health of a battery to be determined with an easy to read traffic light system: Green WEAK = >12.6V, Yellow CHARGE = 12.2V - 12.6V, Red STRONG = <12.2V.
• Flashes every 5 seconds to reduce power consumption.
• Can be used in conjunction with Oximiser Pro optimiser range, using the supplied micro blade fuses: 900/1250 = 2A, 2000 = 4.0A, 5000 = 7.5A.
• Connects to SAE connectors.
• Dimensions: 0.5m length, 18AWG cabling.
• To be used with 12V Lead Acid batteries (not Lithium).
