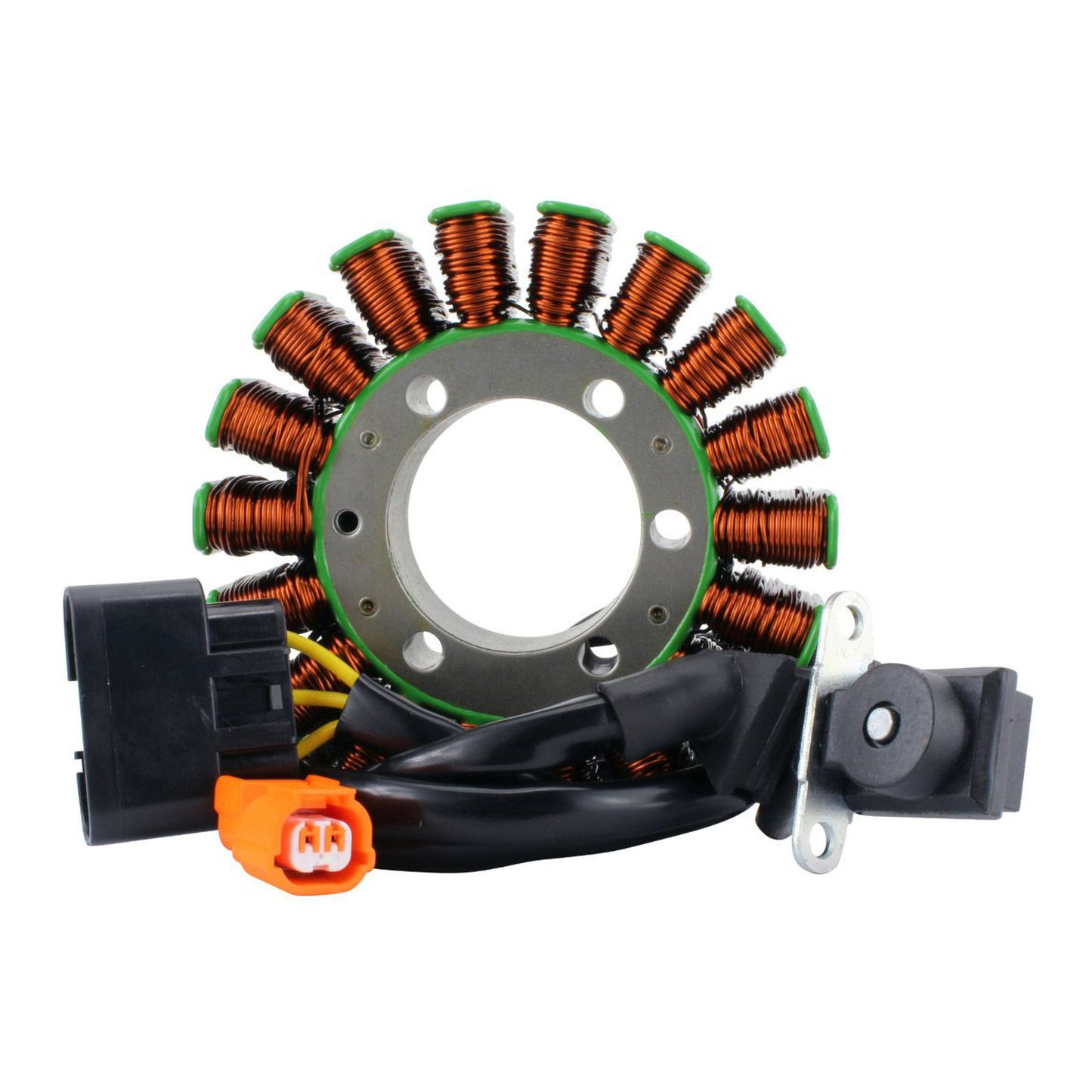

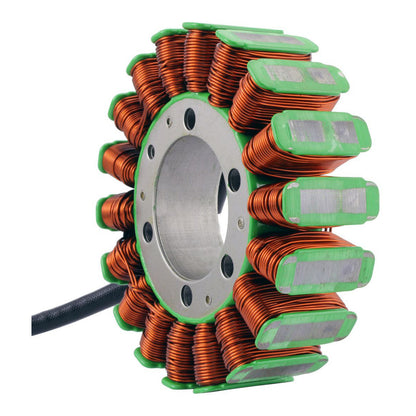

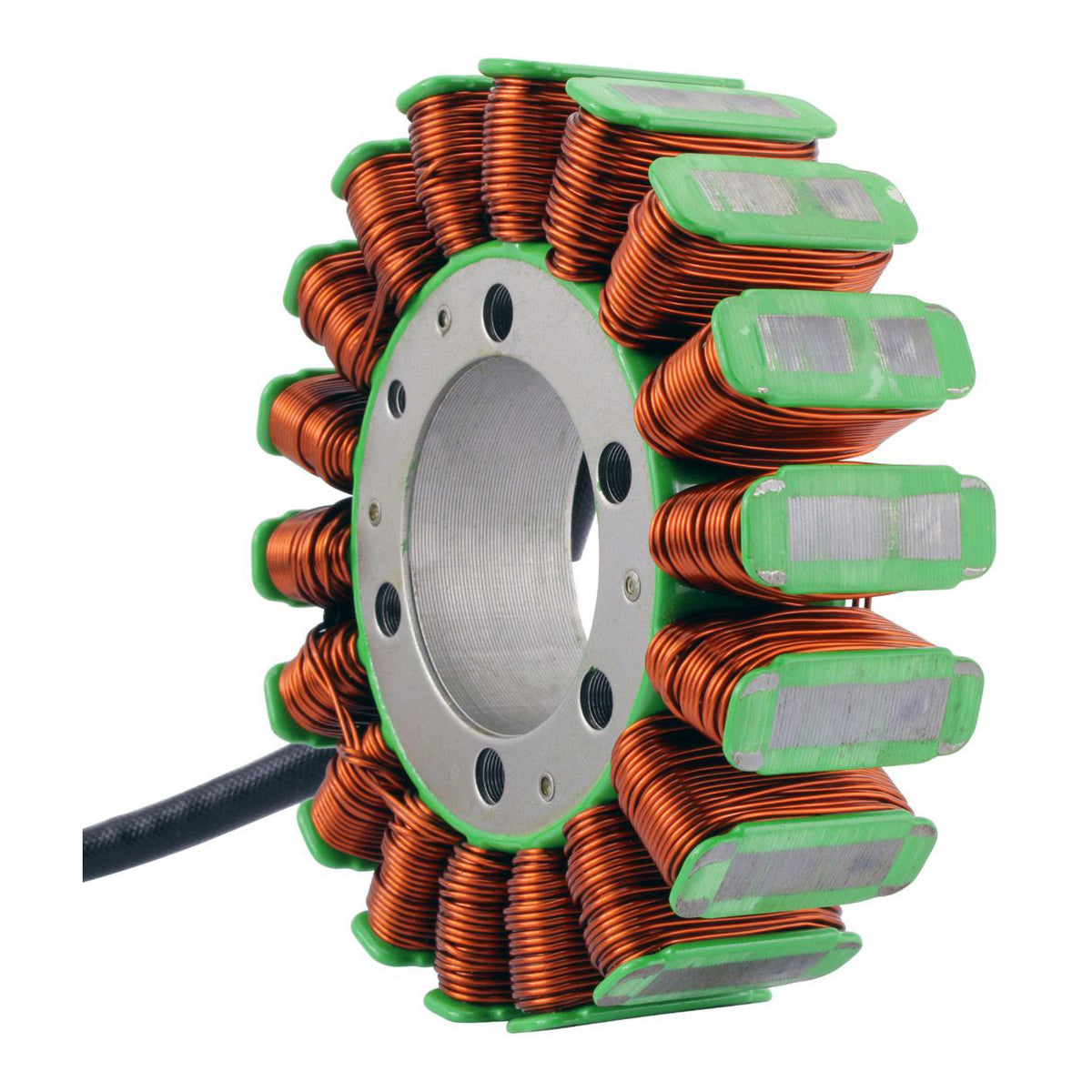

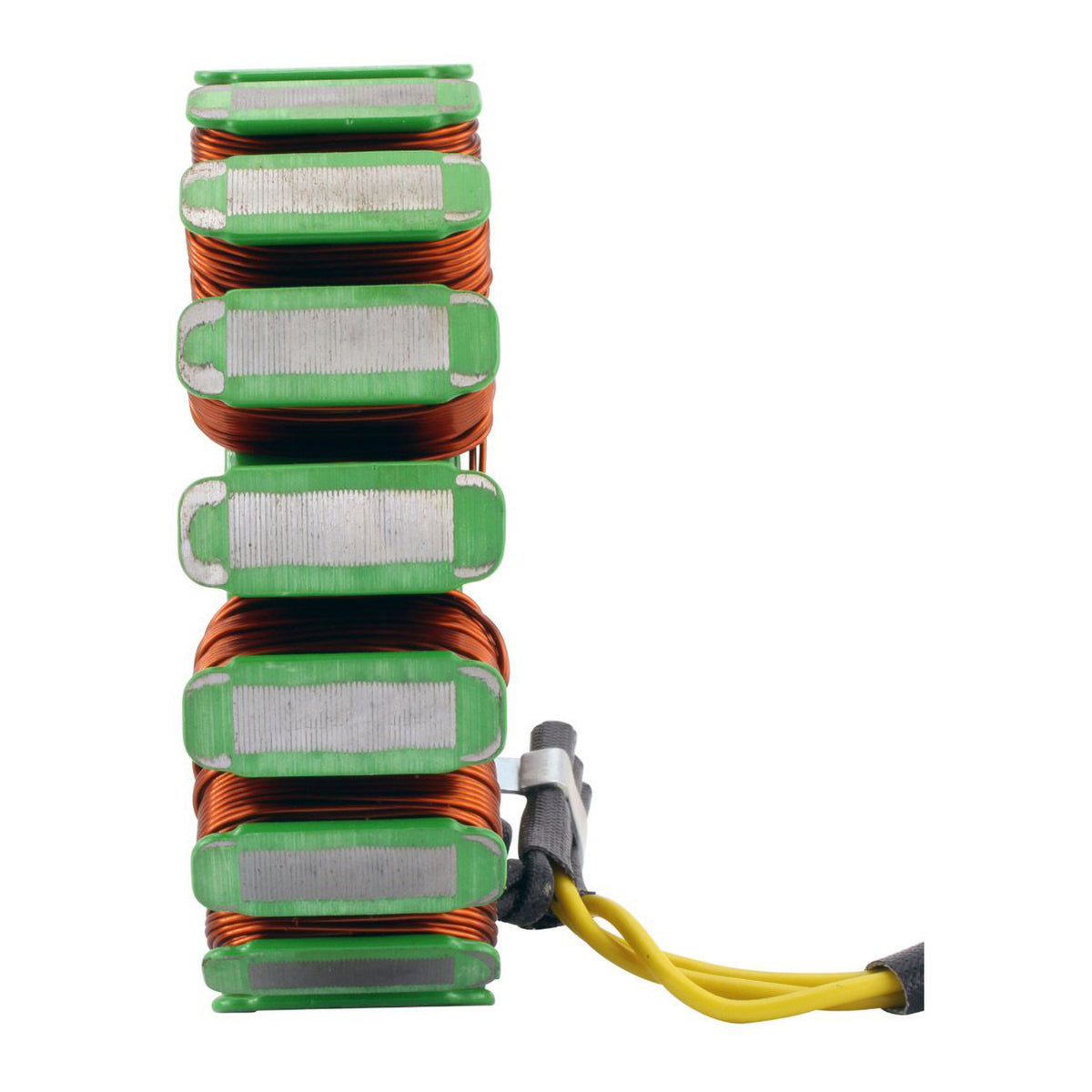

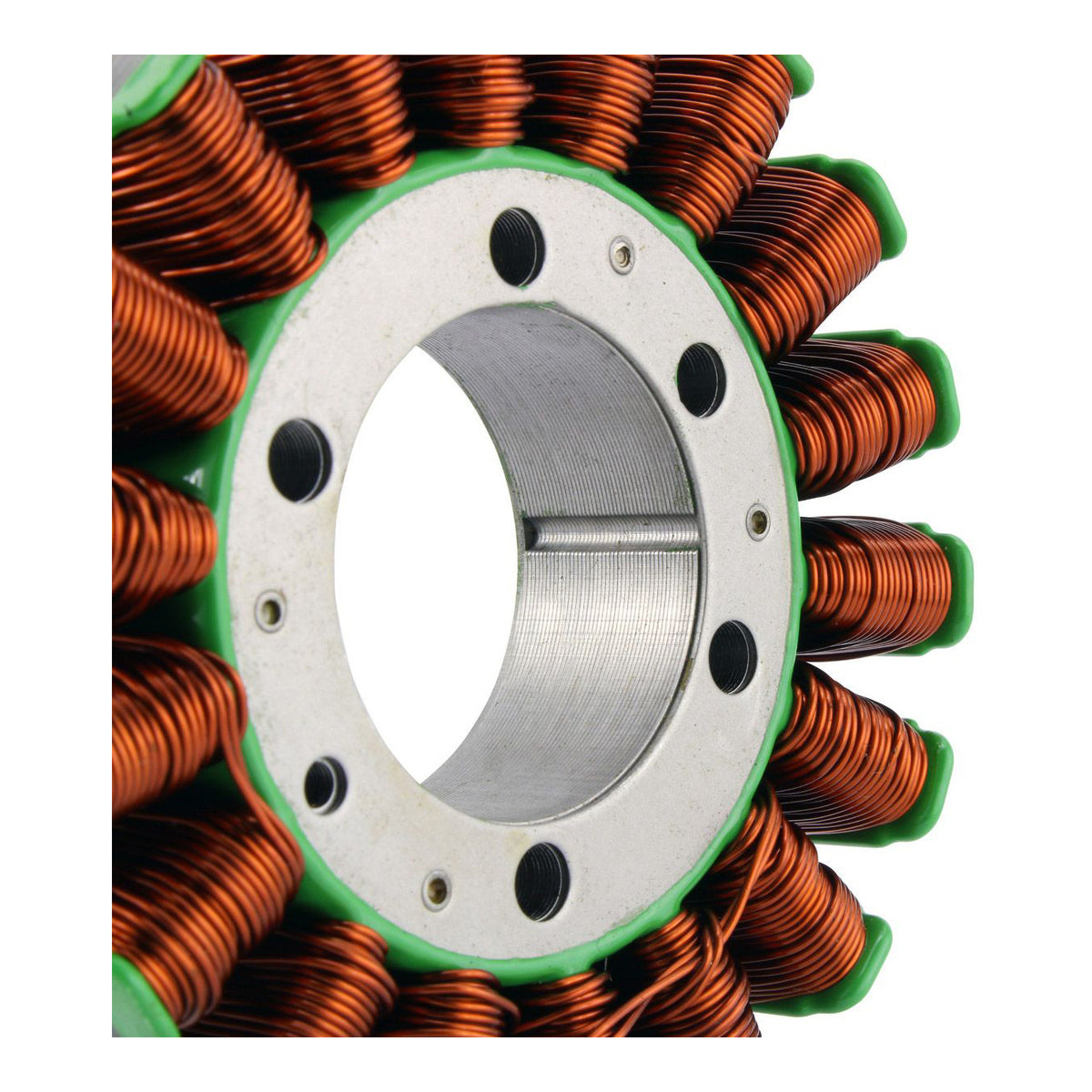

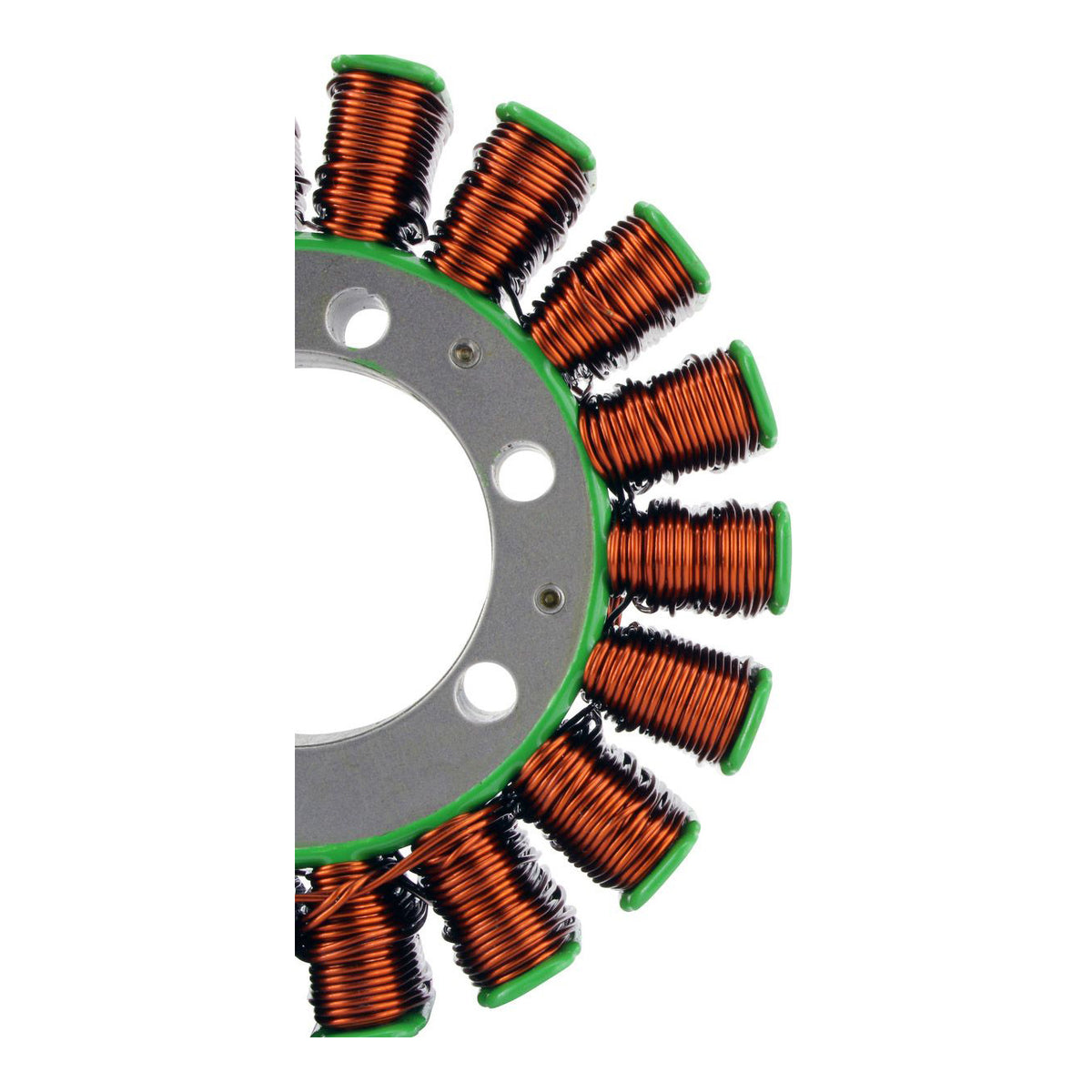

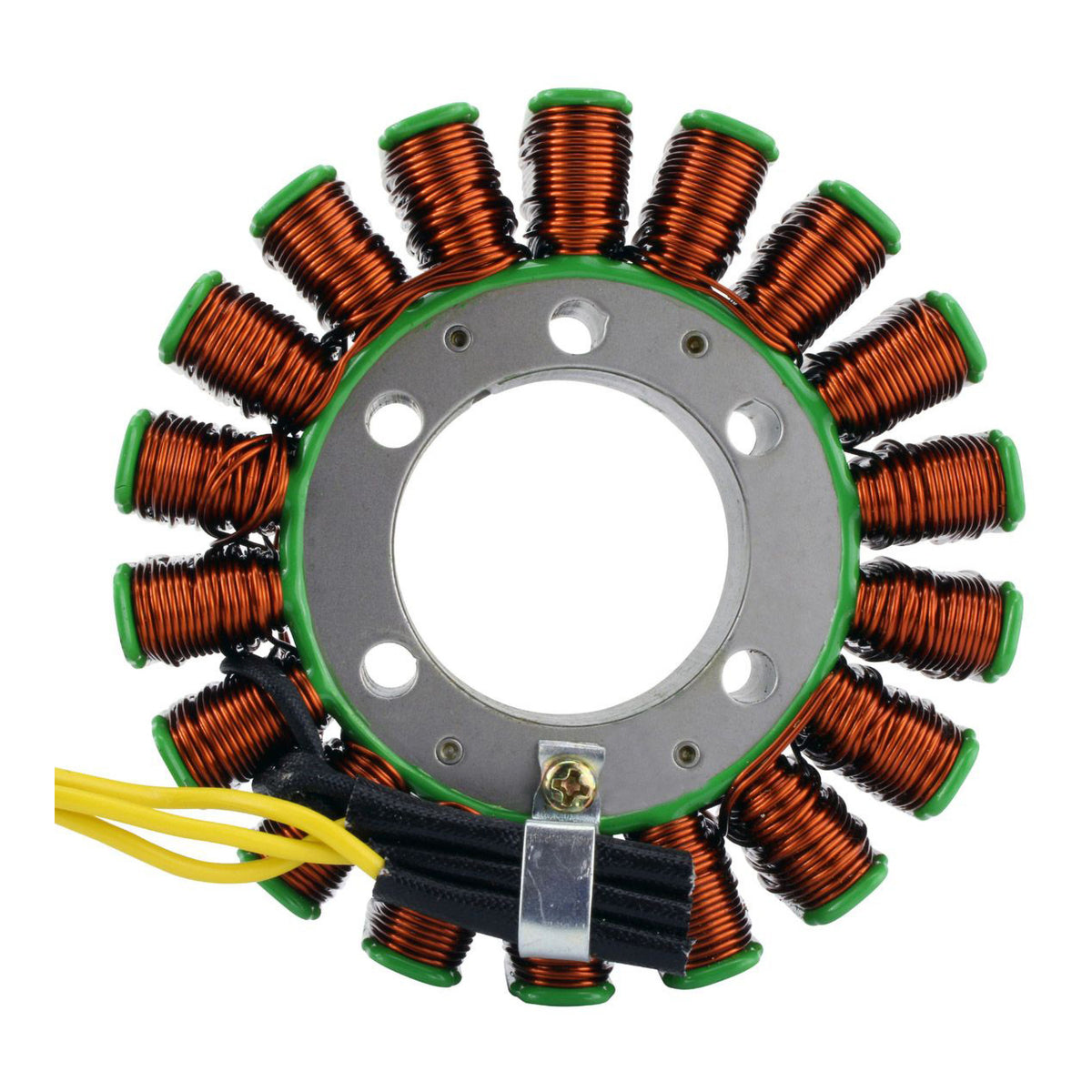

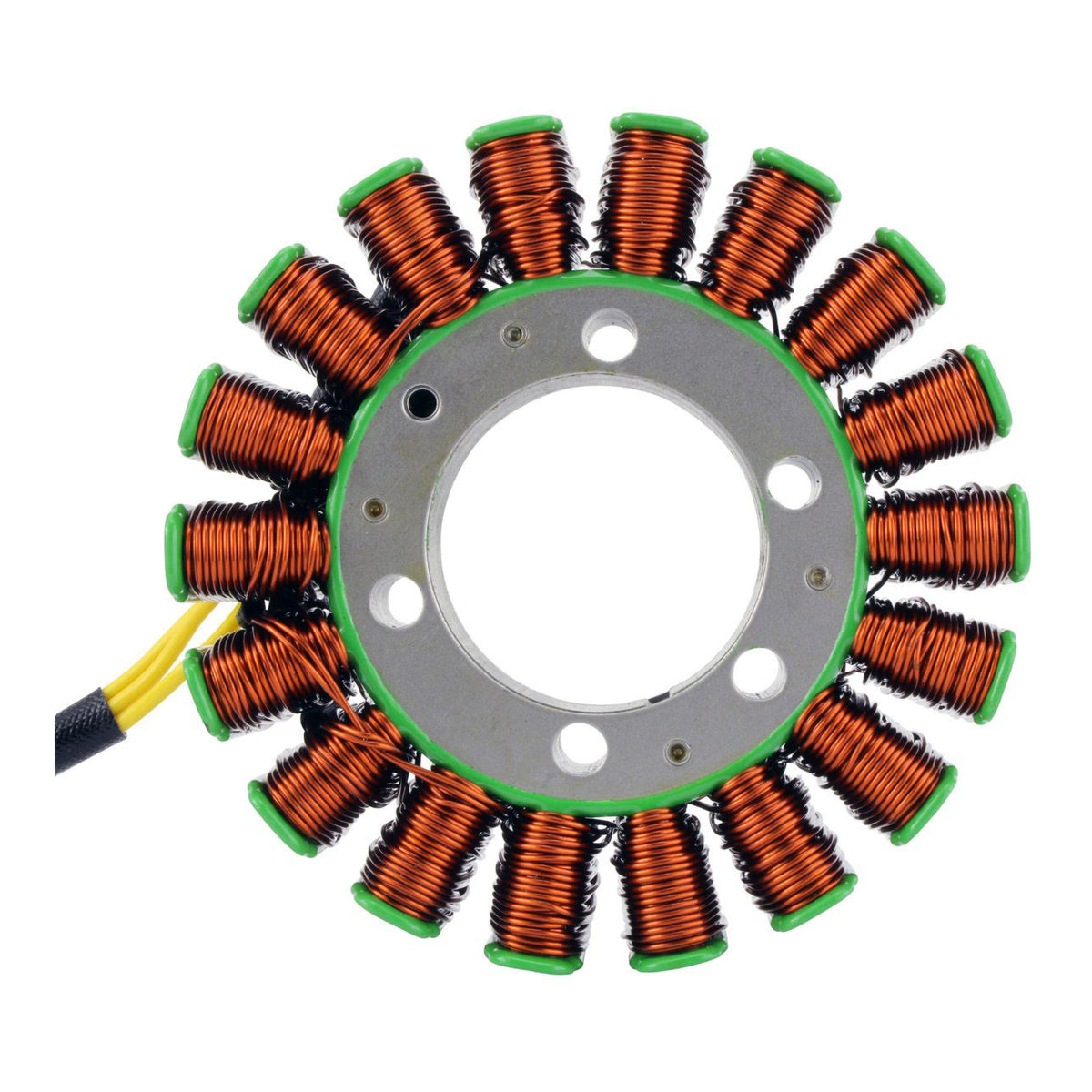

GENERATOR STATOR HONDA TRX420FA 14-21 (RMS010-107116)

GENERATOR STATOR HONDA TRX420FA 14-21 (RMS010-107116)

Regular price $239.90 NZD
Regular price Sale price $239.90 NZD
Sale Sold out
Tax included.
Title

Plug-and-play replacement generator stator from RM Stator. See fitment guide for model details.



Dimensions:

  • Interio r diameter: 42 mm
  • Exterior diameter: 107 mm
  • Thickness: 24 mm
  • Length of wires stator to grommet: 110 mm
  • Length of wires grommet to plug: 370 mm & 835 mm
  • Length of pickup coil's wire to grommet: 80 mm





Other specifications:

  • Number of wires: 5
  • Number of plugs: 2
  • Number of pins: 5
  • Number of poles: 18
  • Wire to wire resistance:
  • Alternator: Between each Yellow = 0.6 ohms +-20%
  • Pickup: Blue/Yellow to Green = 116 ohms +-20%



Details:

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius

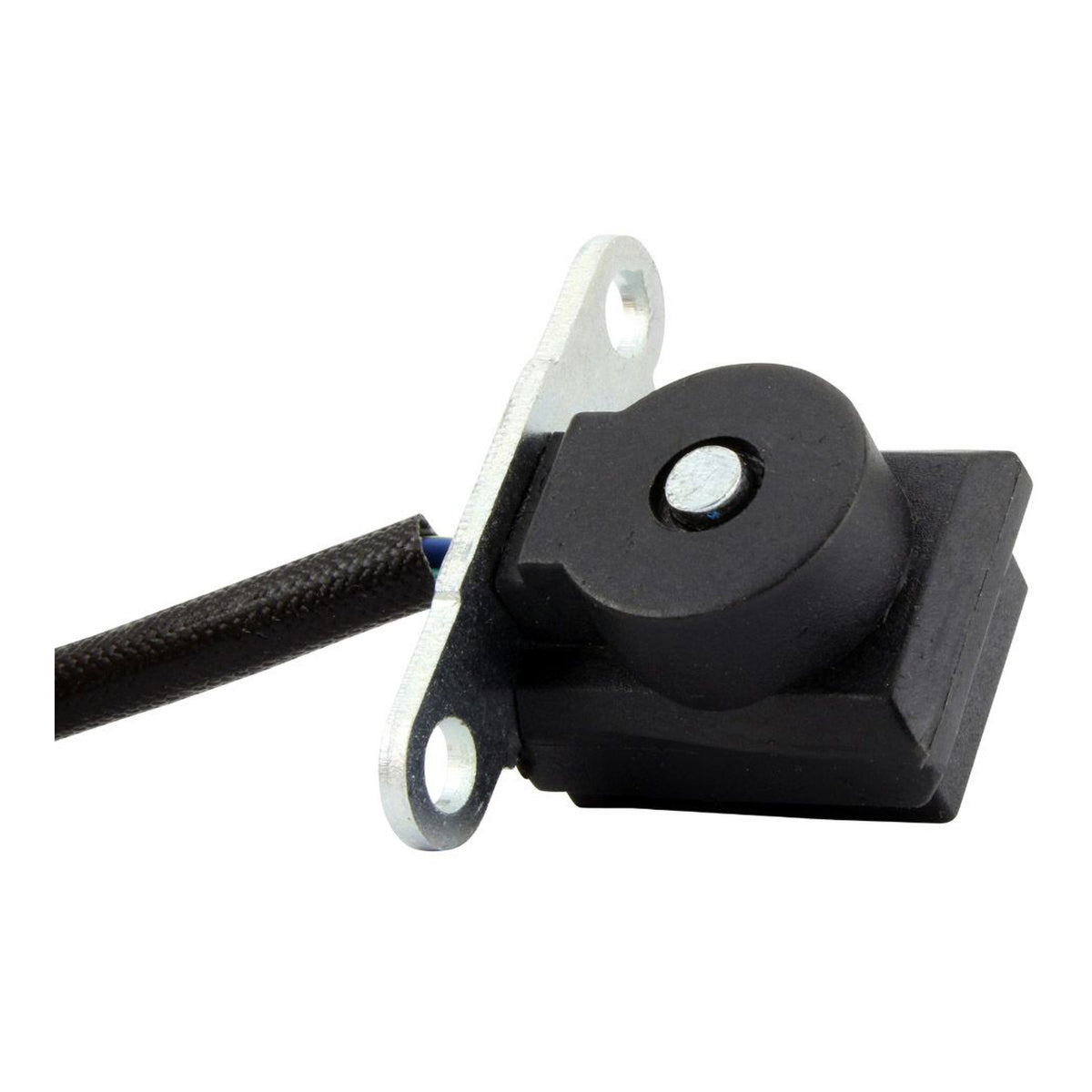

  • Pick up pulsar coil included

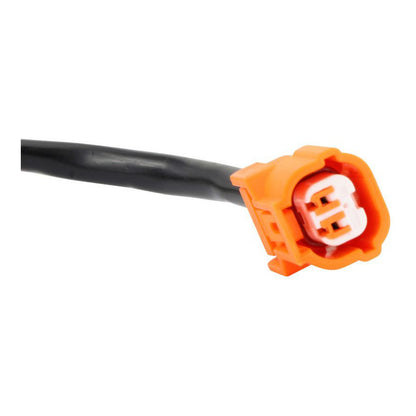

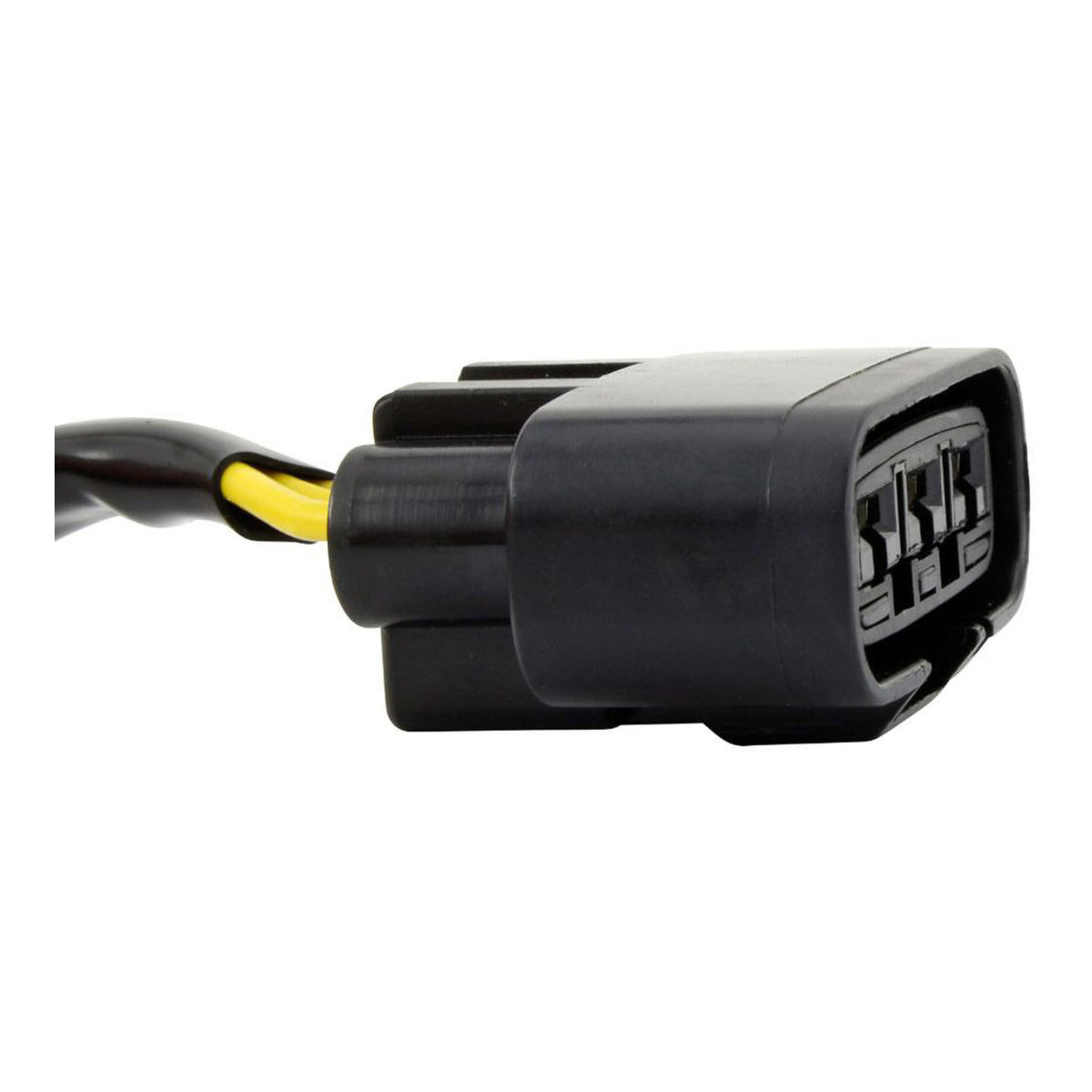

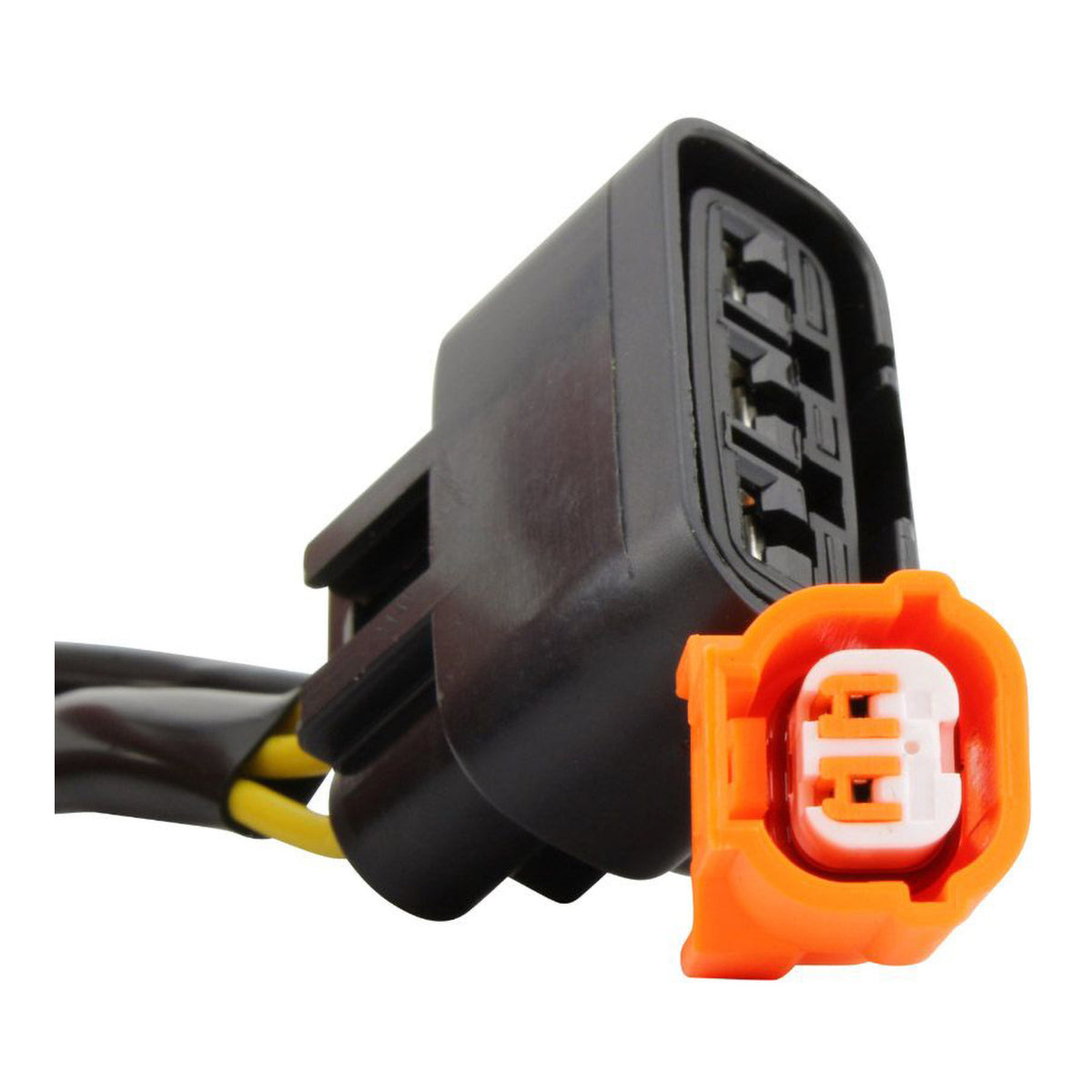

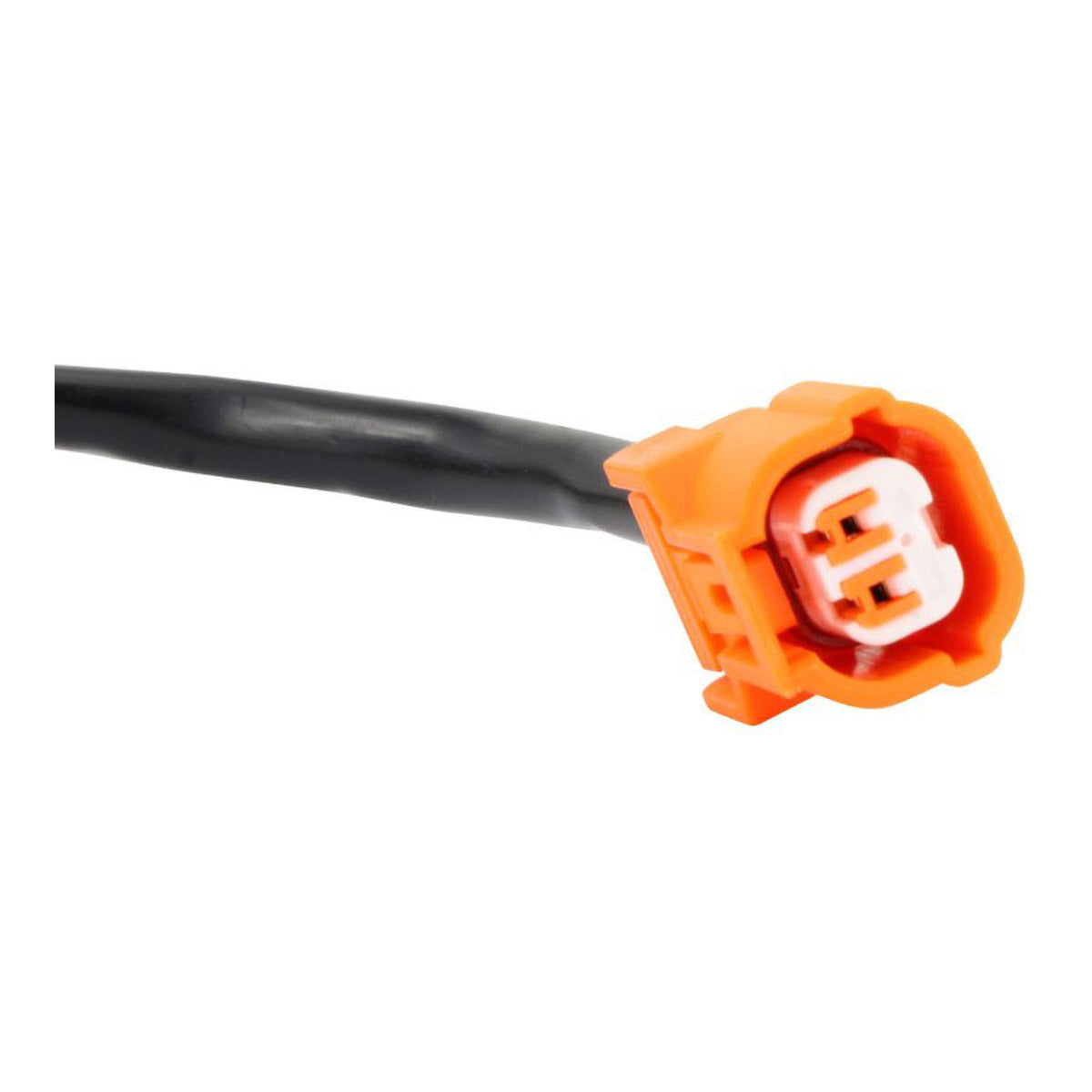

  • Connectors included

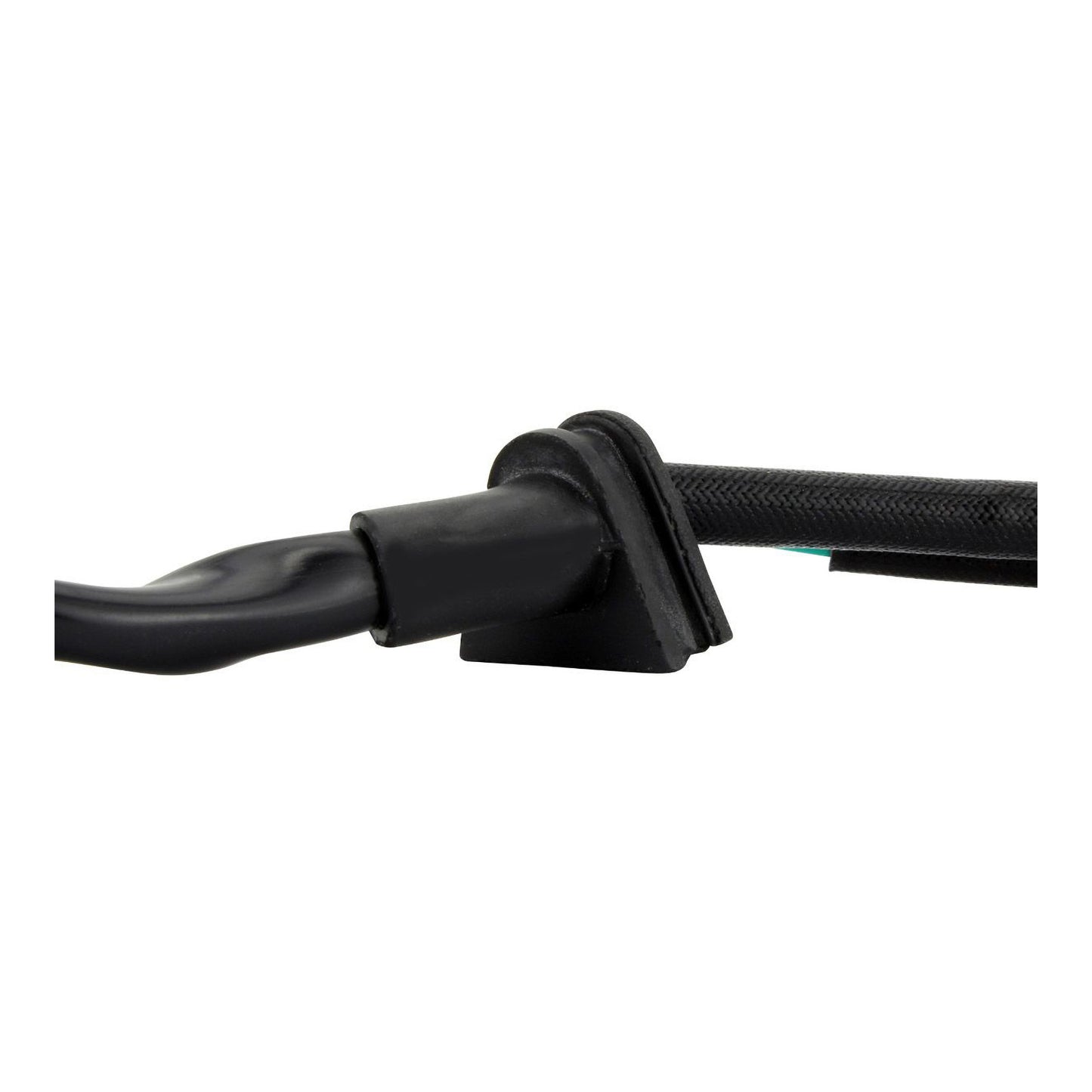

  • Rubber grommet included
  • All products shipped are tested
