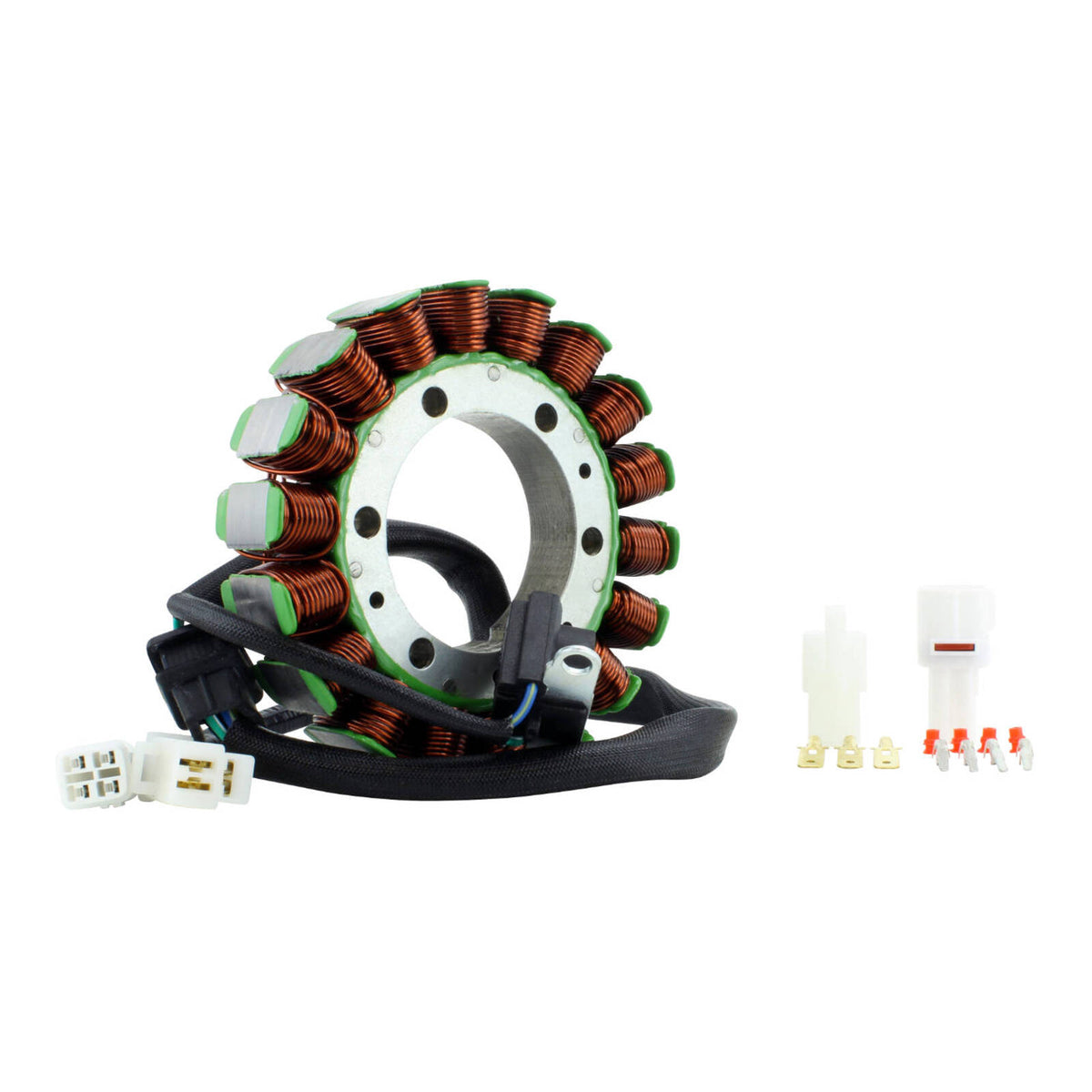

GENERATOR STATOR VARIOUS ARCTIC CAT (RM01285)

GENERATOR STATOR VARIOUS ARCTIC CAT (RM01285)

Regular price $349.90 NZD
Regular price Sale price $349.90 NZD
Sale Sold out
Tax included.
Title

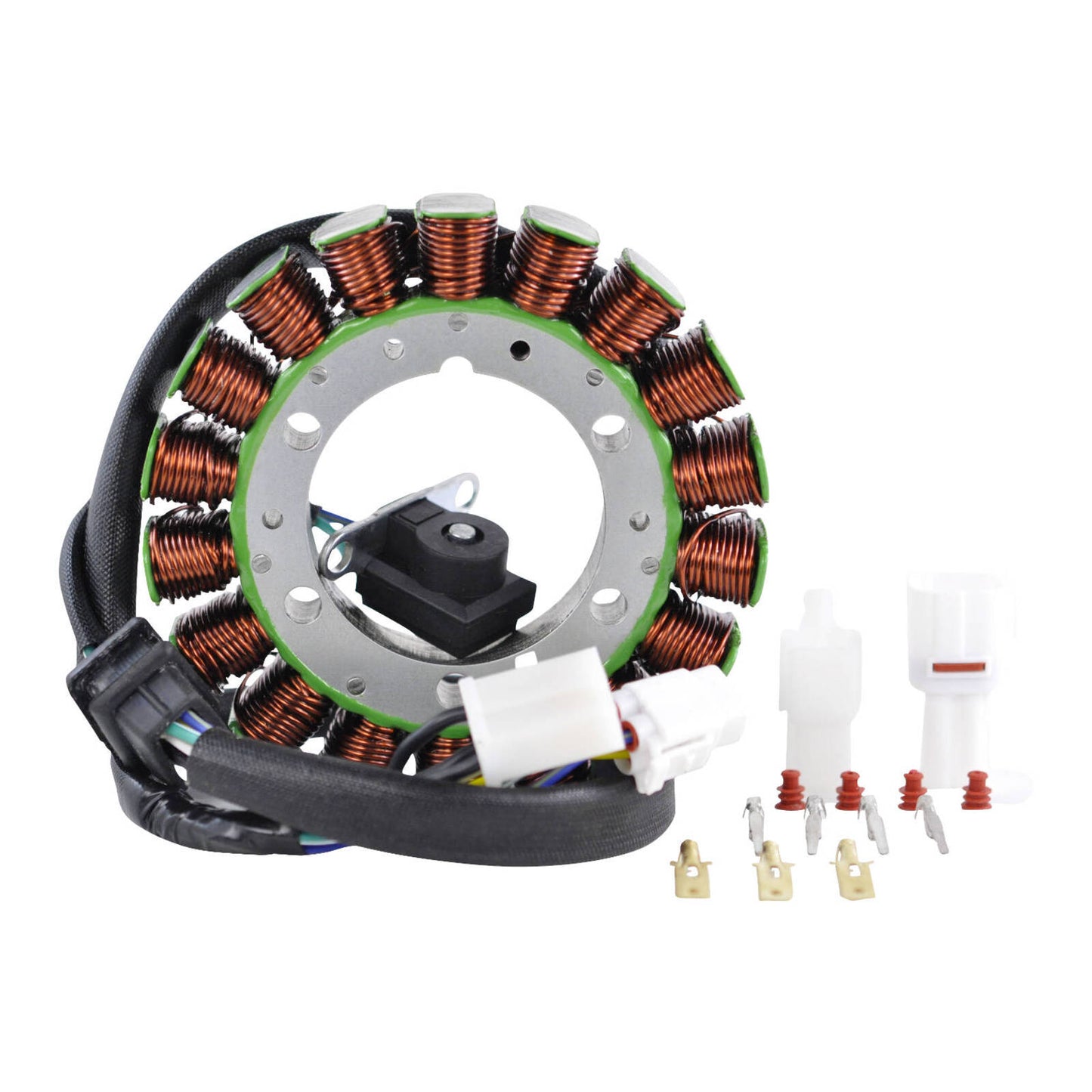

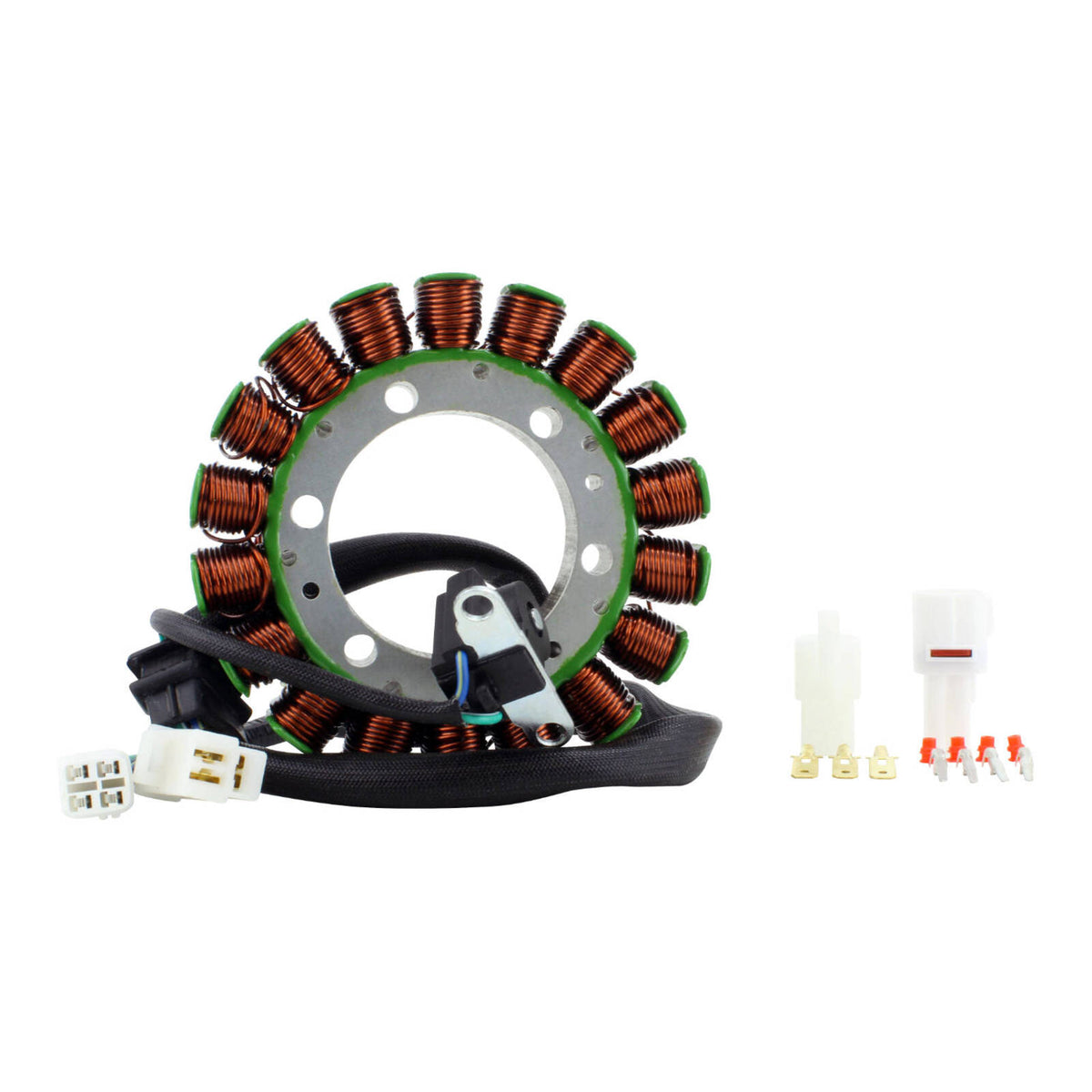

Plug-and-play replacement generator stator from RM Stator.



Dimensions:

  • Interior diameter: 54mm
  • Exterior diameter: 114mm

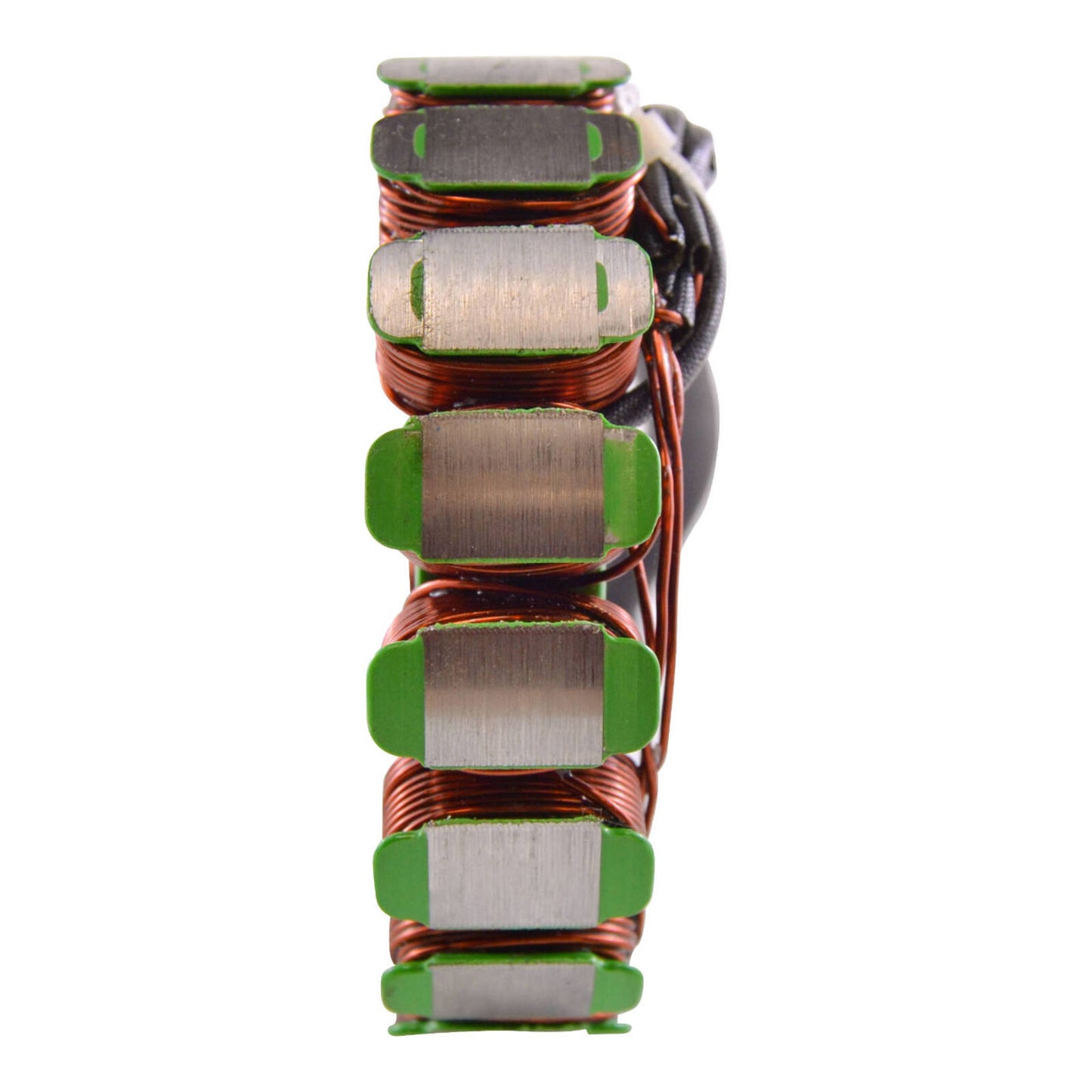

  • Thickness: 18mm
  • Length of wires stator to grommet: 140mm
  • Length of wires grommet to plug: 320mm
  • Length of pickup coil's wire to grommet: 95mm



Other specifications:

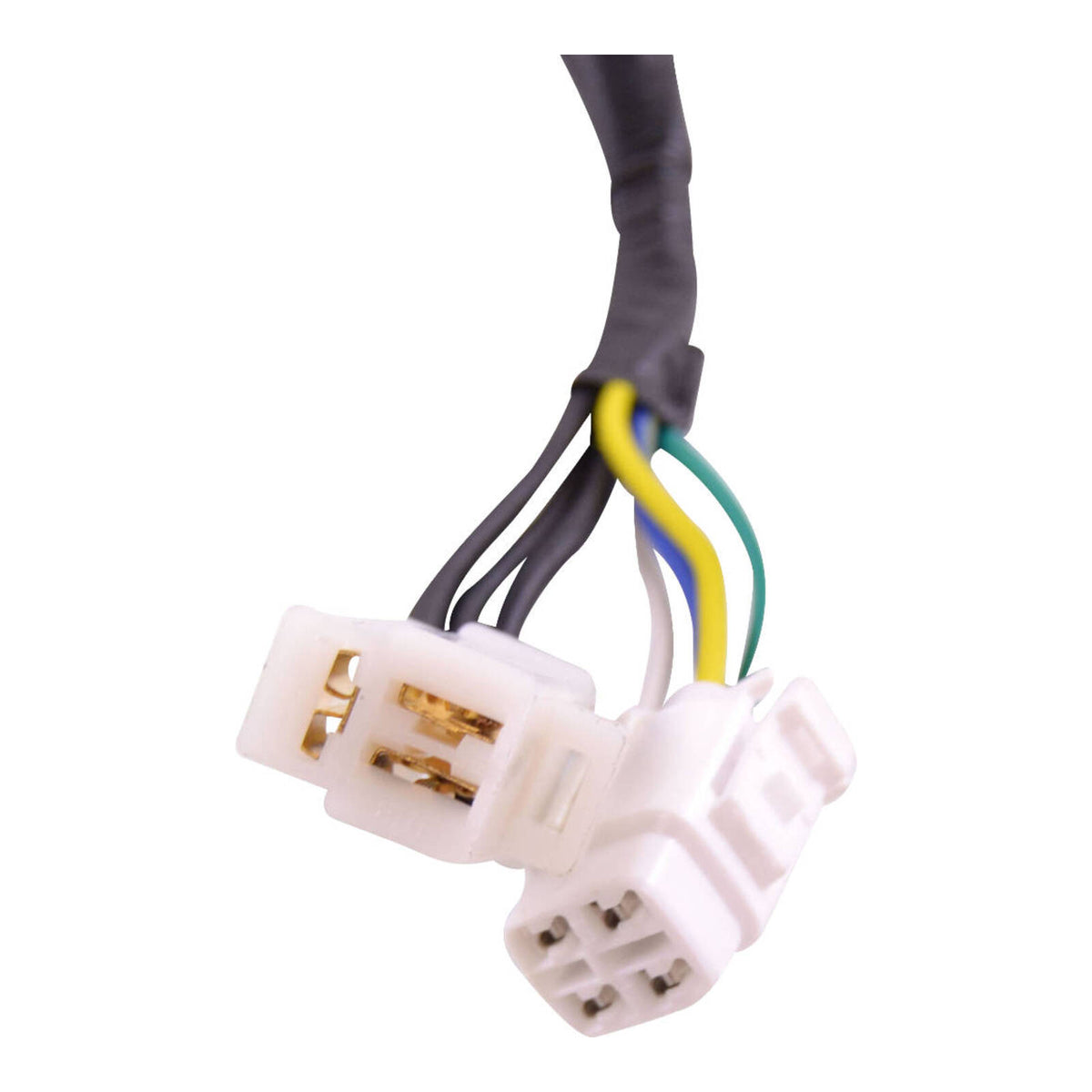

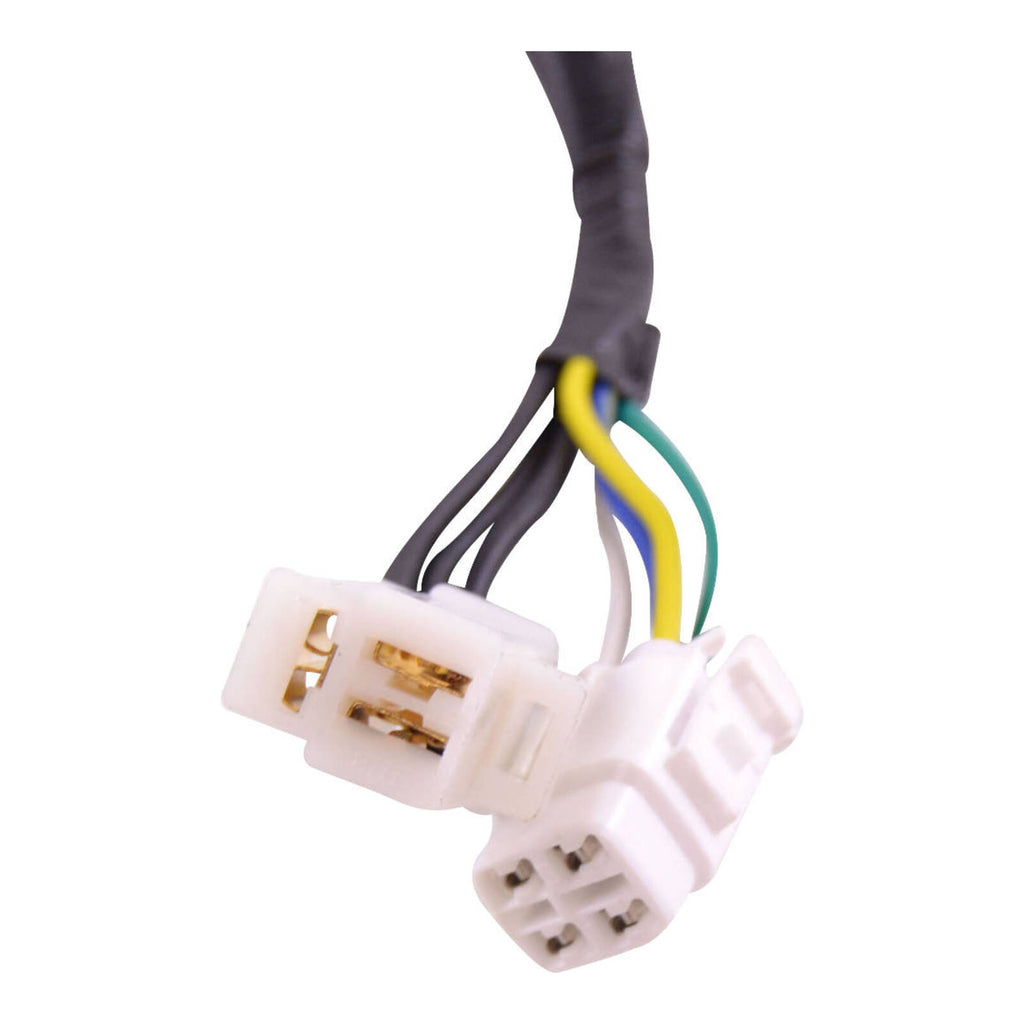

  • Number of wires: 7
  • Number of plugs: 2
  • Number of pins: 7
  • Wire to wire resistance:
    • Alternator: Black between each Black = 0.4 ohms +-20%
    • Pickup: Blue to Green = 185 ohms +/-20%
    • Position Sensor: White to Yellow = 0.2ohms +/-20%



Details:

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation

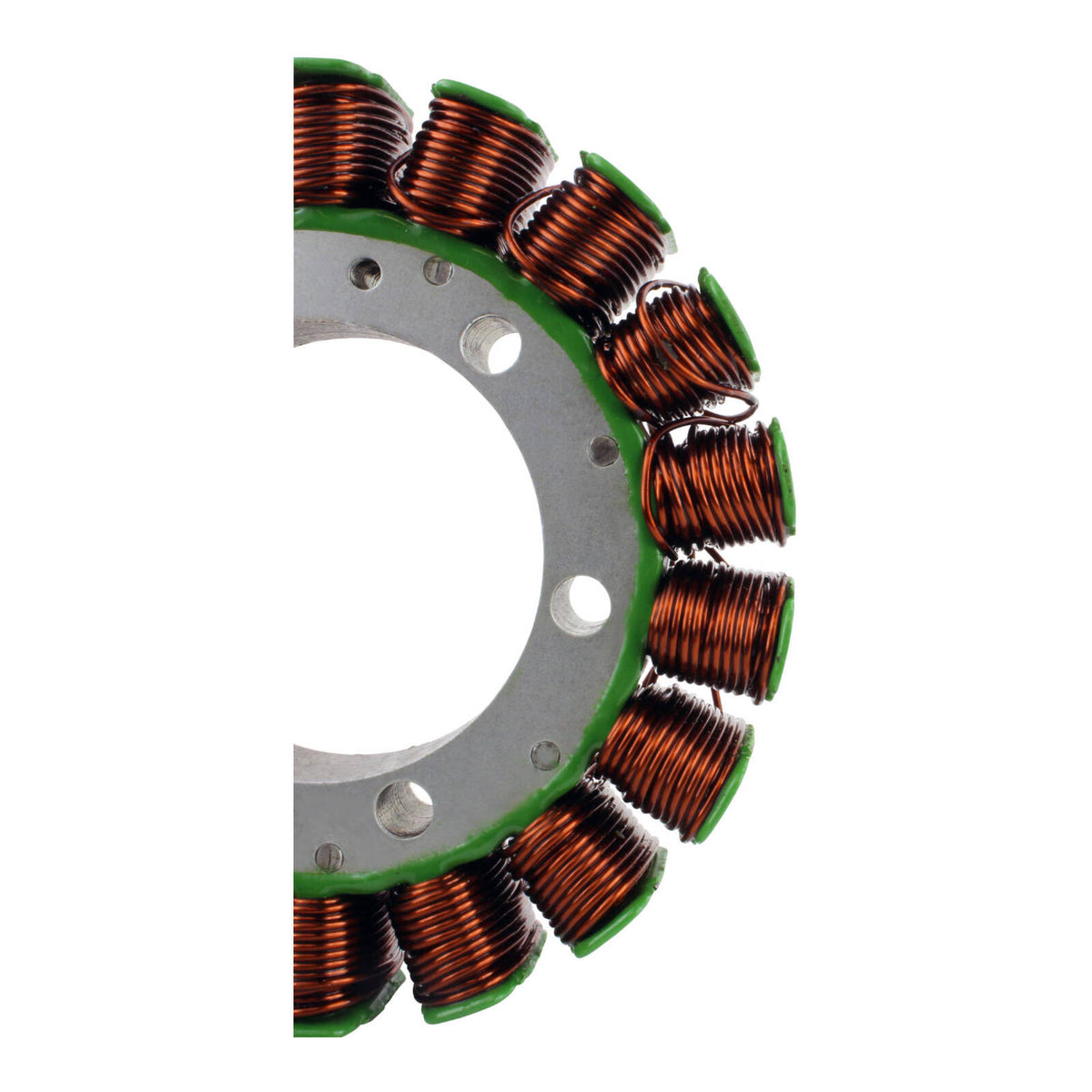

  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius
  • Pick up pulsar coil included

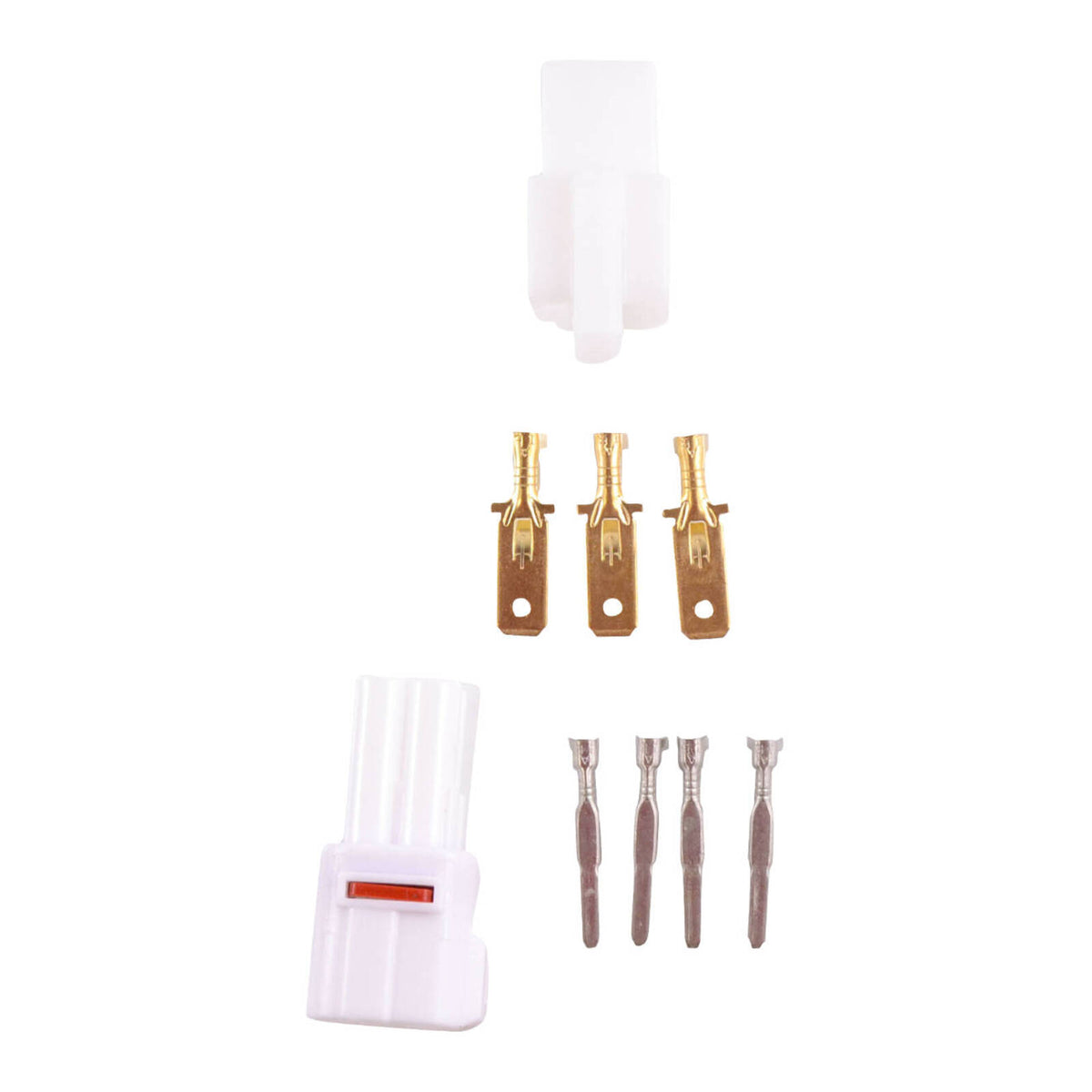

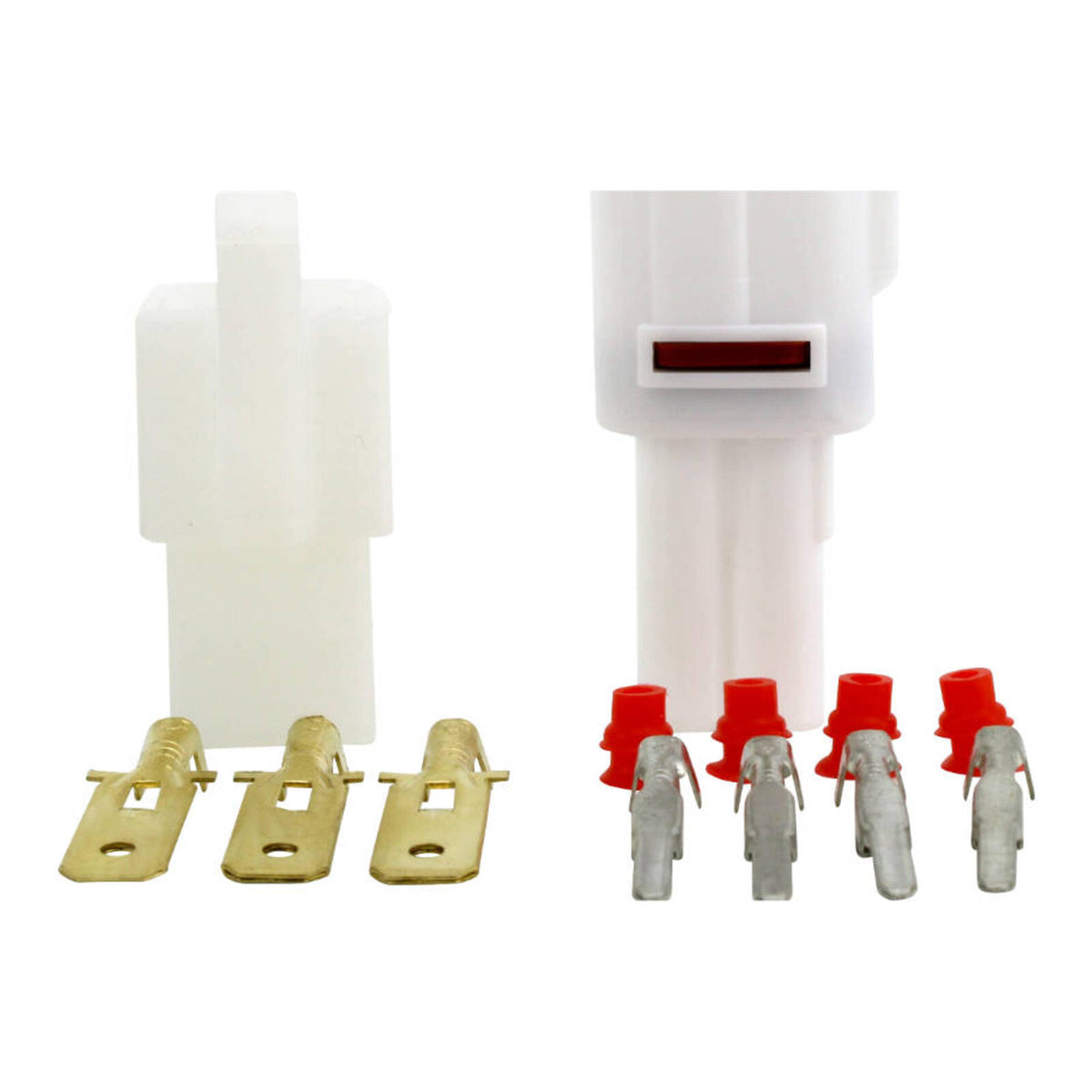

  • Connector included
  • Rubber grommet included
  • All products shipped are tested
