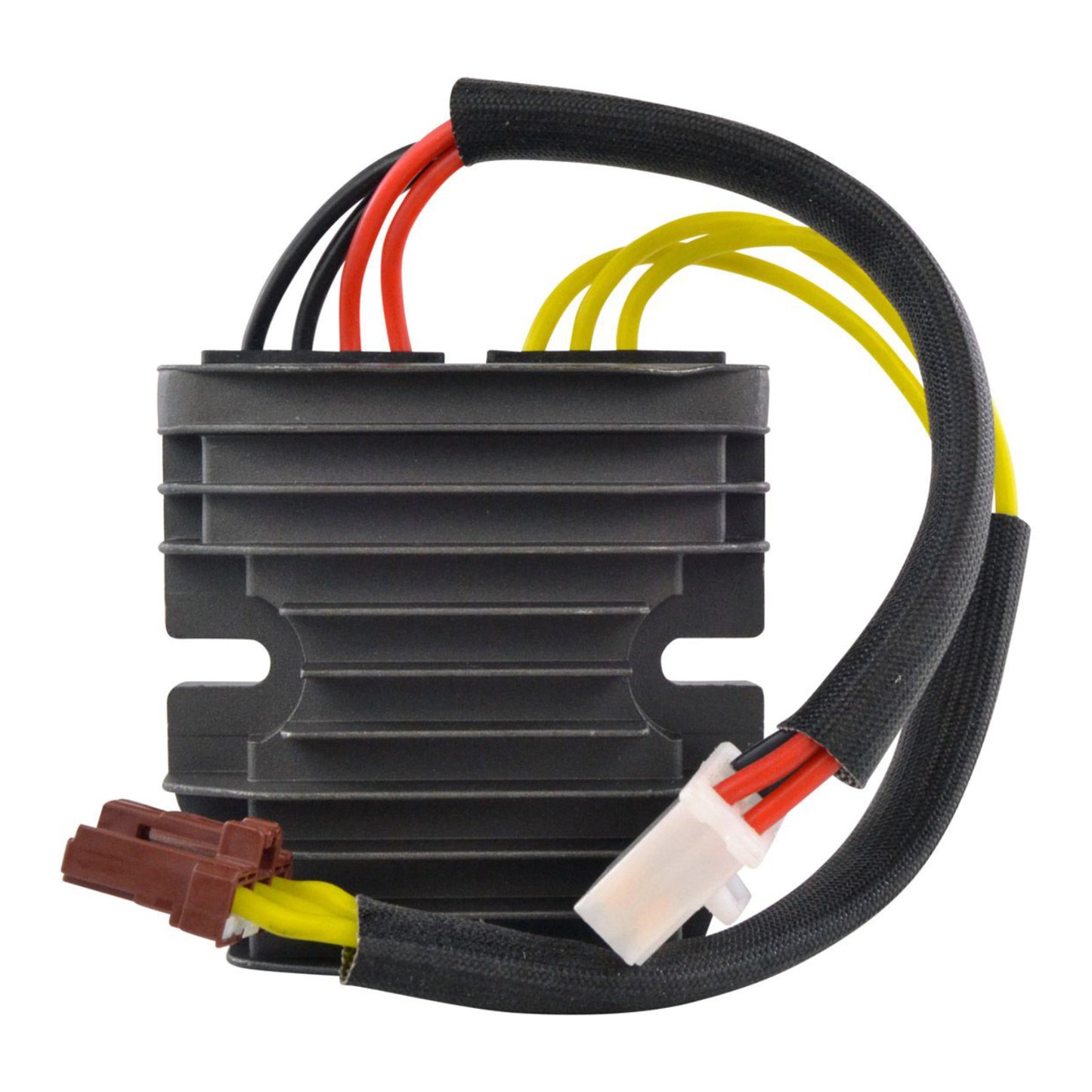

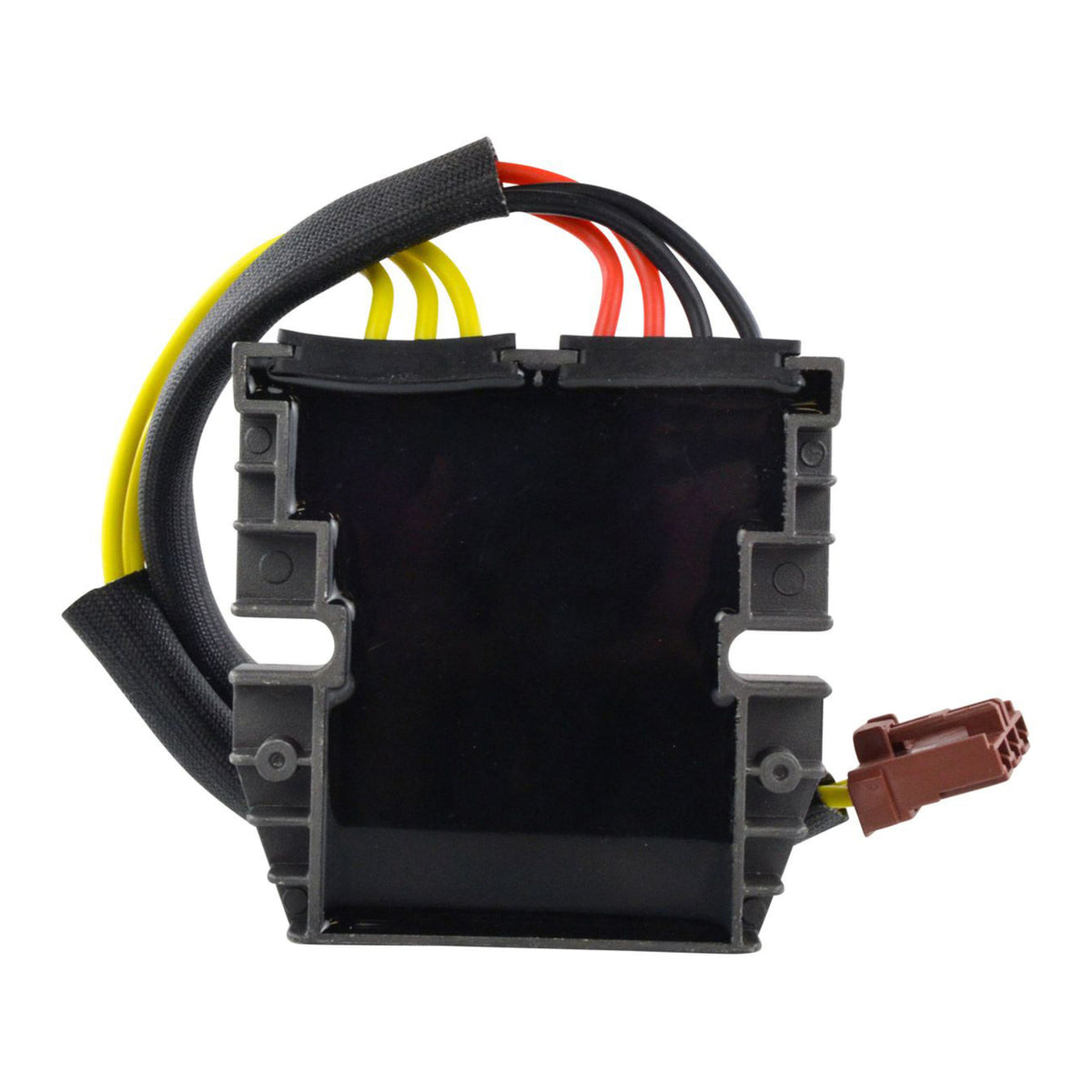

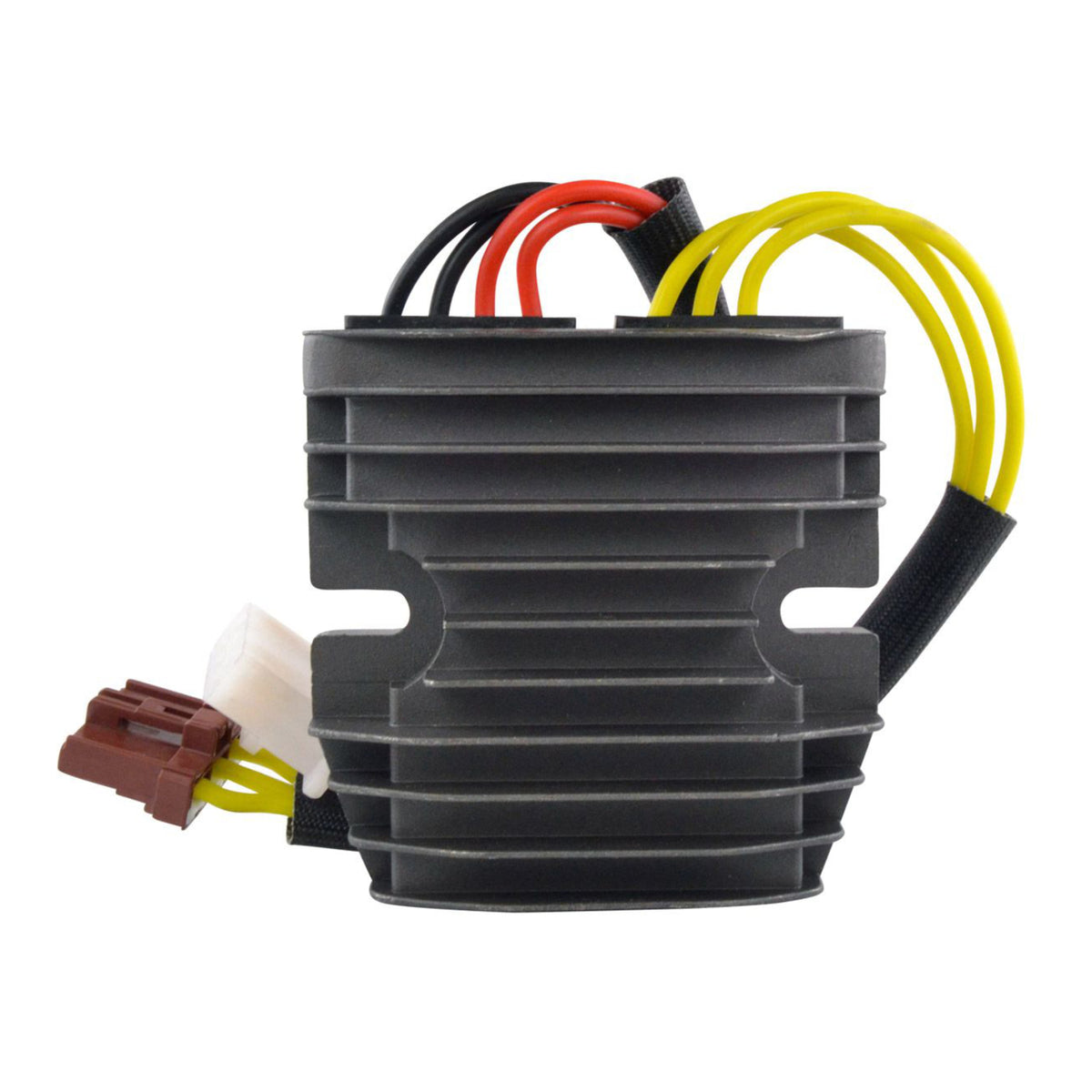

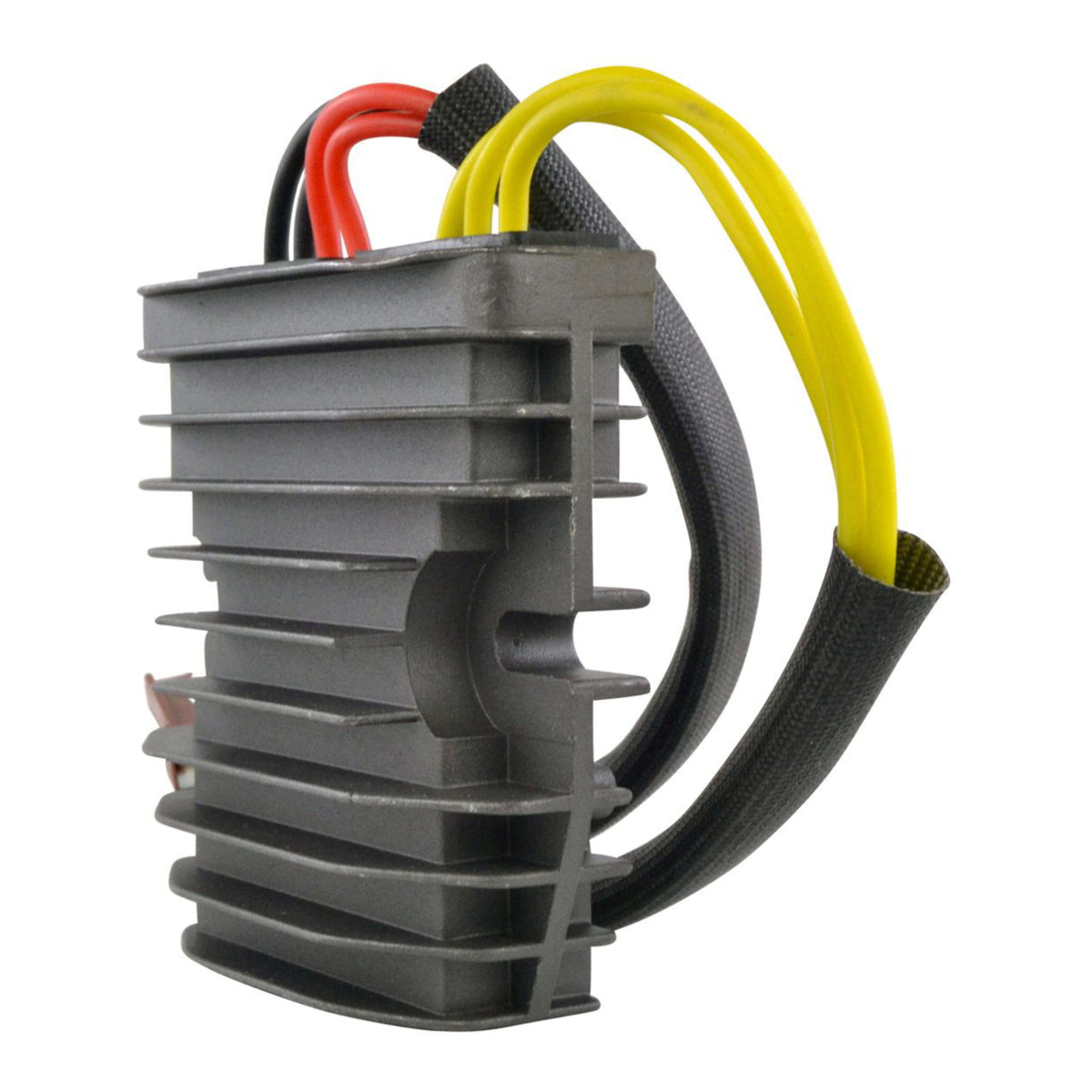

VOLTAGE REGULATOR APR SL 1000

Brand new Mosfet voltage regulator rectifier

STOP BURNING YOUR REGULATOR RECTIFIER !
It is time to update or replace your voltage regulator with the advanced MOSFET type.
It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• The quality exceeds the OEM equipment

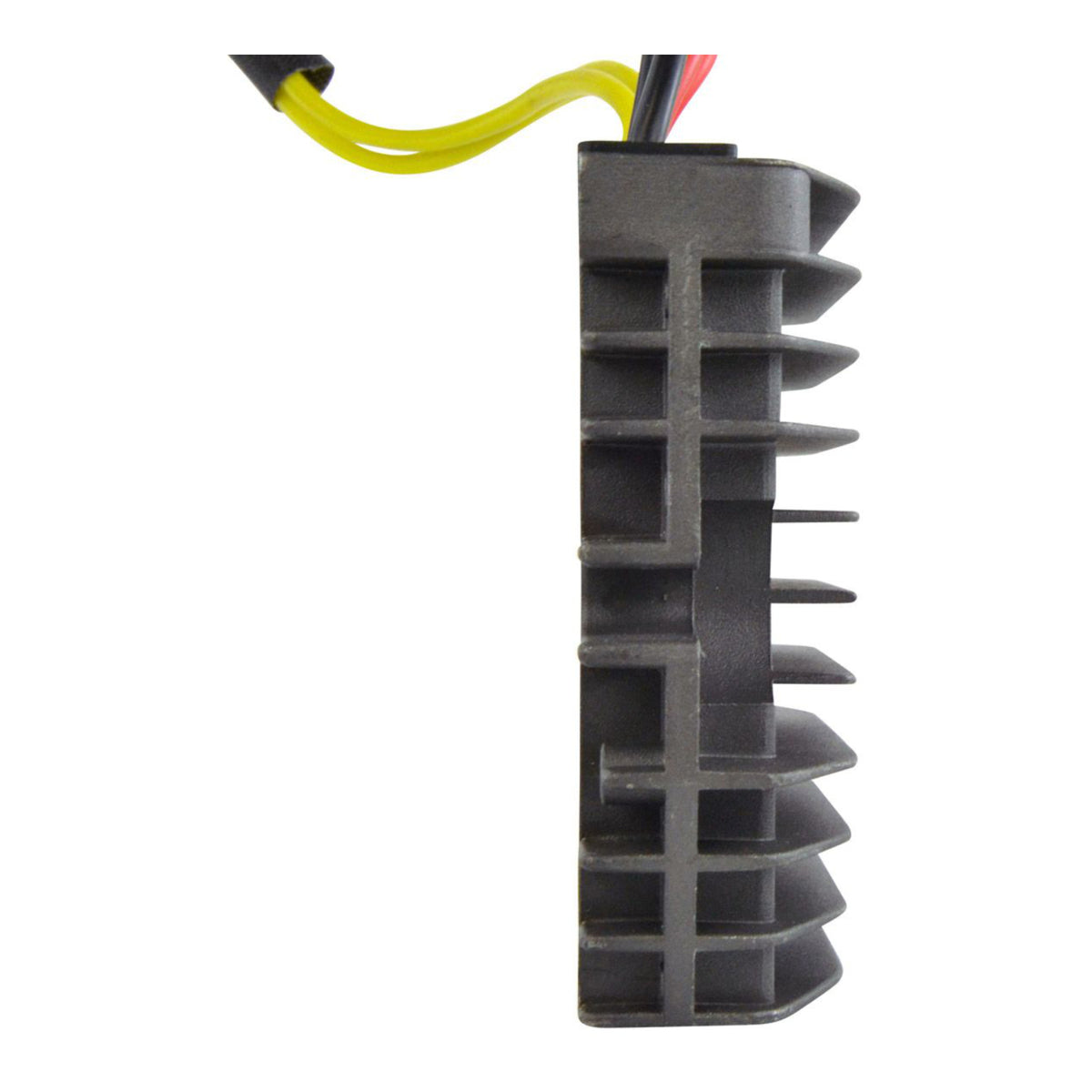

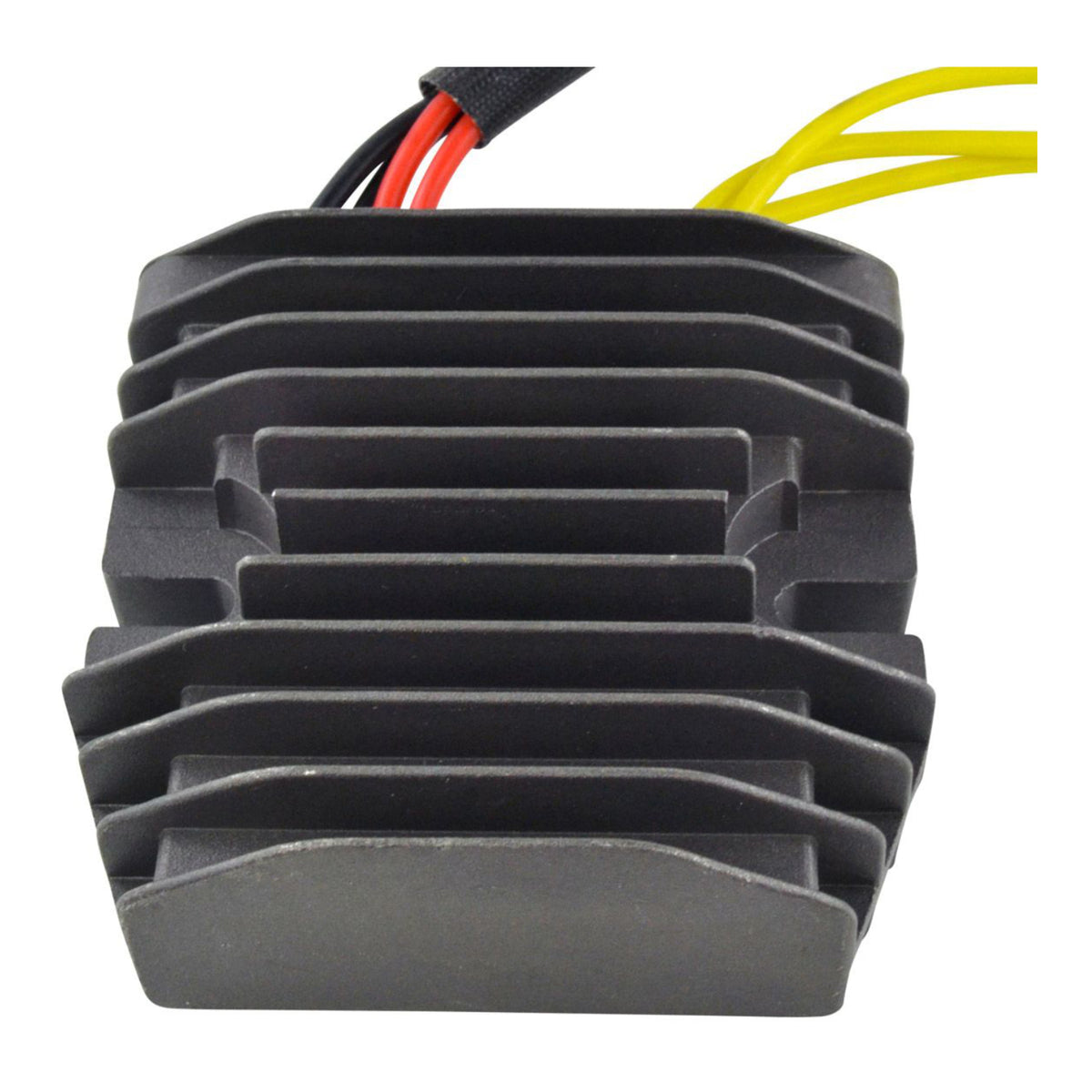

• Improved heat sink and charging capabilities
• Higher grade of electric components.
• All shipped products are tested

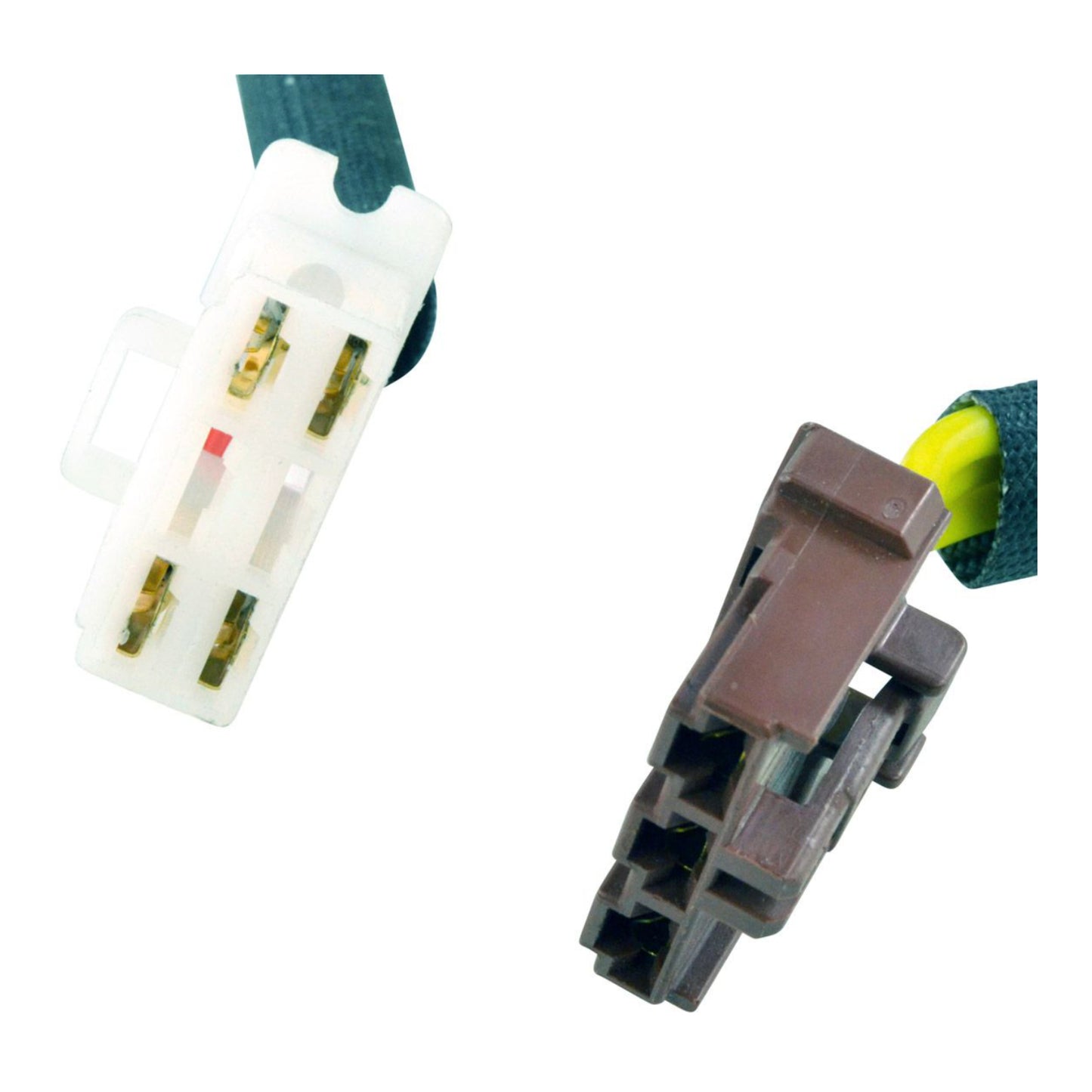

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.

*All item pictures are accurate, if in doubt, do not hesitate and compare our item to your original part.

Why use Mosfet Enhanced technology?

• Runs cooler: Runs much cooler than the traditional Shunt voltage regulator rectifier.
• Saves gas: Less load on the stator, less work, less fuel is used and you save.
• Regulated energy: The power charging your battery is steadier and smooth.
• Extended battery life: Extends the battery’s life and cold cranking capacity.
• More engine power: Removes stator load resulting in more engine power.
• Optimized power: Optimize power delivery by switching the stator coils on or off.

With Enhanced Technology Design

This product is an advanced design that lowers operating temperatures for extended longevity and better performance than the OEM part.

Specifications:

Dimensions:

• W idth: 86 mm
• Length: 90 mm
• Height: 32 mm
• Wires length: 200 mm & 240 mm
• Fixation holes center to center: 75 mm

Other specifications:

• Number of plugs: 2
• Number of pins: 7
• Number of wires: 7
• Minimum Charging Voltage: 14.5 V +- 0.5 V
• Maximum Charging Current: 50 A / 500 W
• Open Circuit Voltage: 15 V
• Operation Temperature: -20° to 85°

Note: Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY

Direct replacement to your original unit.

• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius.
• Pick up pulsar coil included
• Connector included
• Rubber grommet included
• All products shipped are tested

Dimensions:

• Width: 86 mm
• Length: 90 mm
• Height: 32 mm
• Wires length: 200 mm & 240 mm
• Fixation holes center to center: 75 mm

Other specifications:

• Number of plugs: 2
• Number of pins: 7
• Number of wires: 7
• Minimum Charging Voltage: 14.5 V ± 0.5 V
• Maximum Charging Current: 50 A / 500 W
• Open Circuit Voltage: 15 V
• Operation Temperature: -20°C to 85°C
