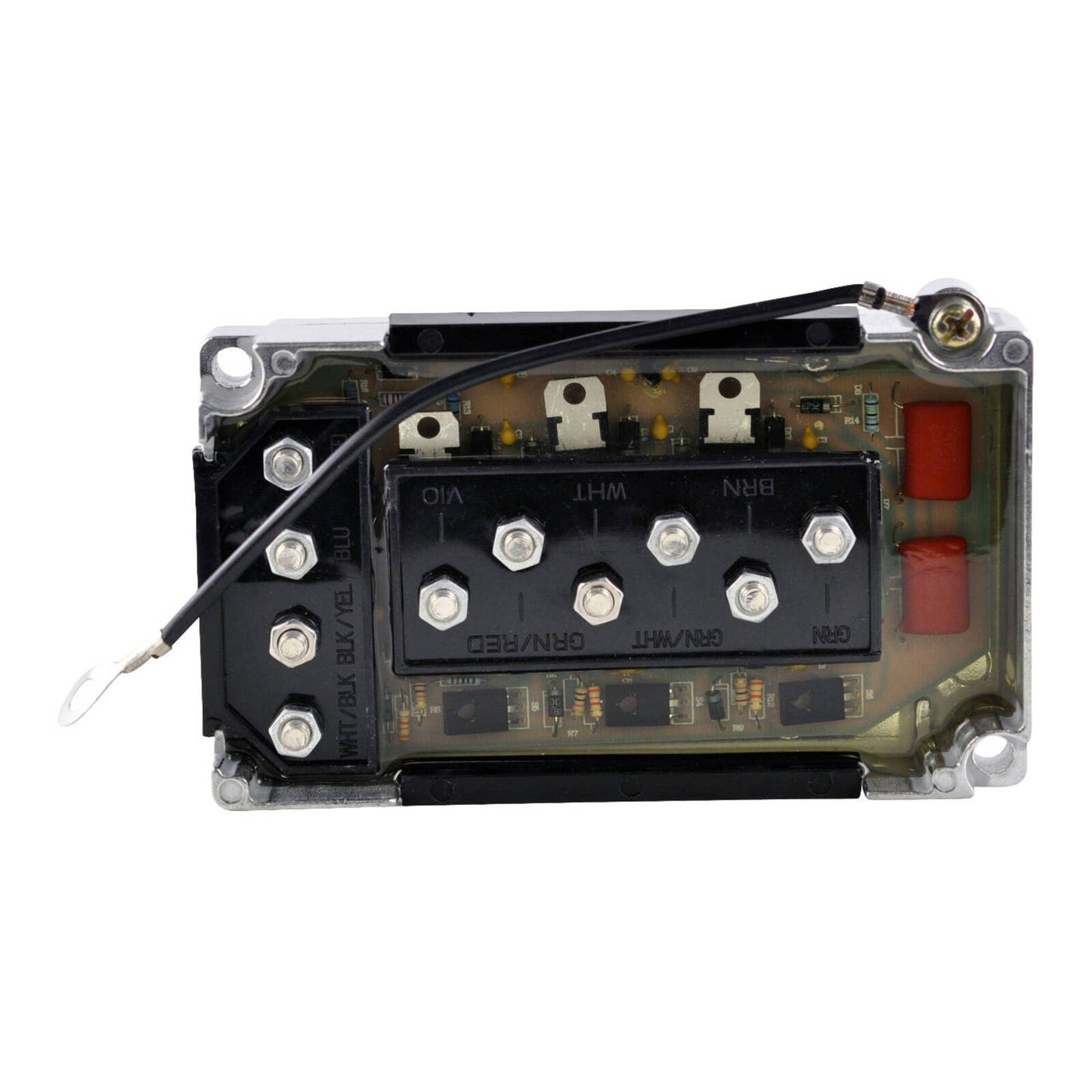

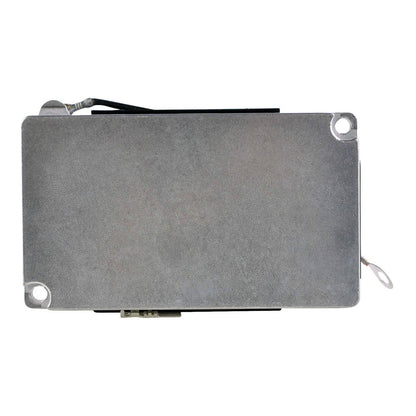

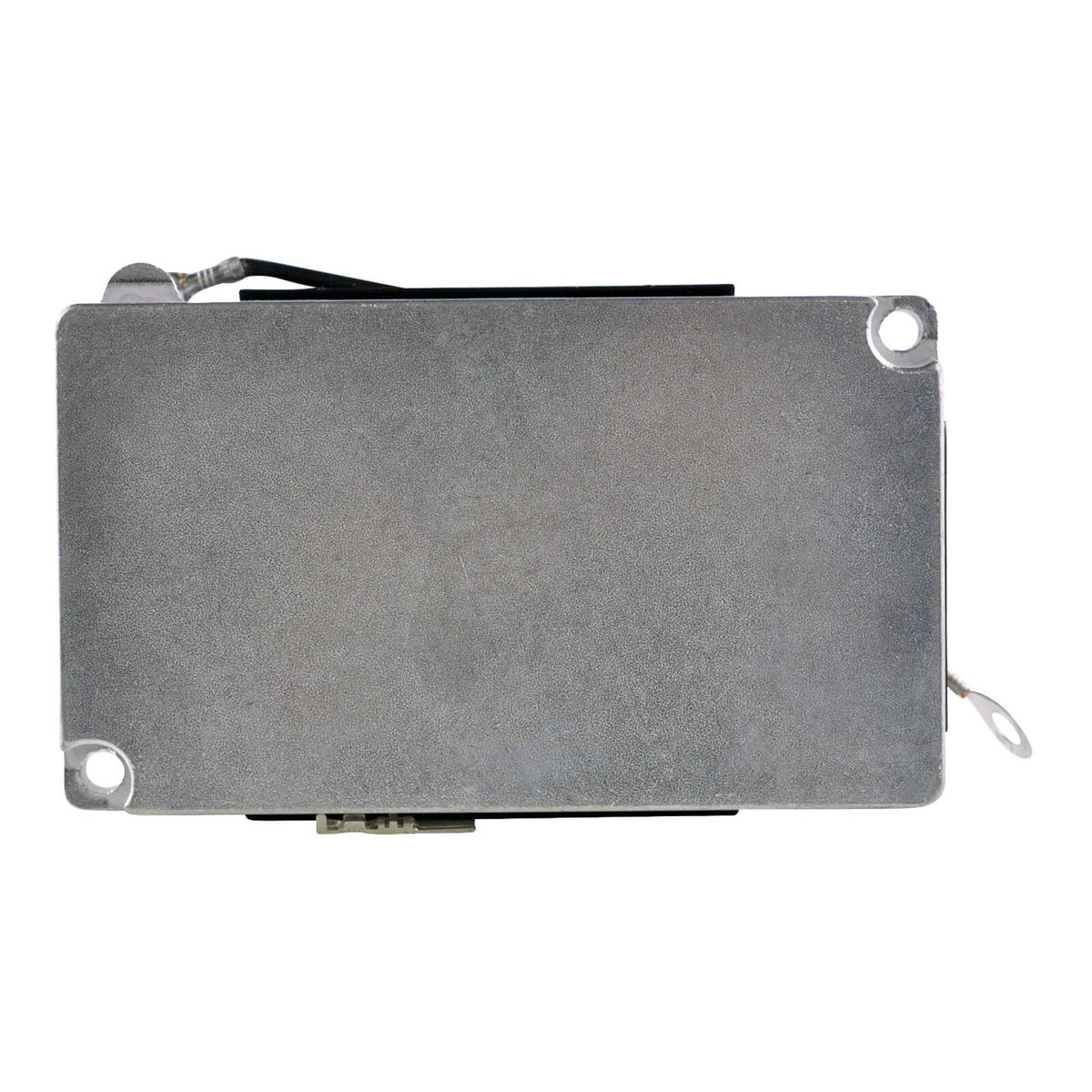

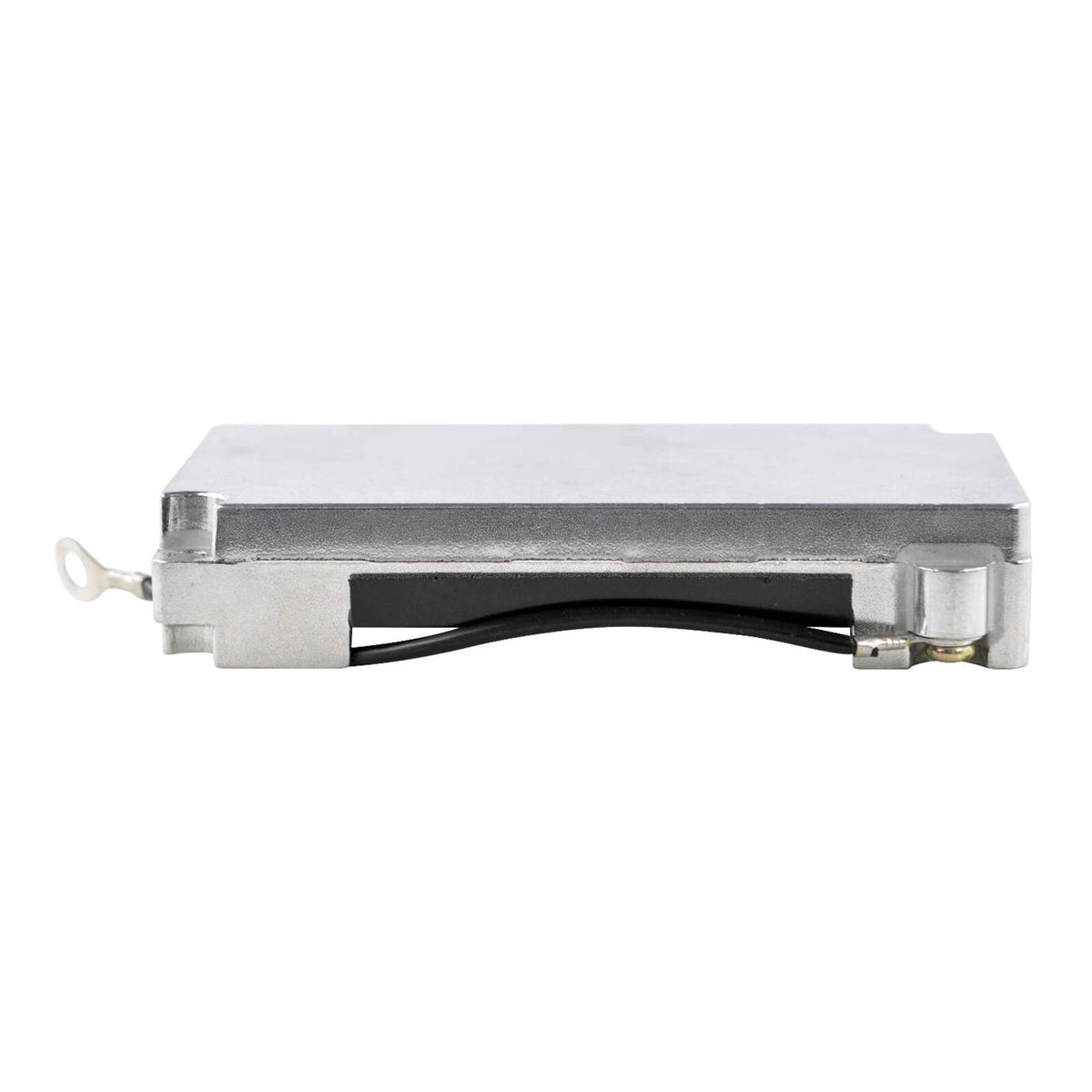

CDI BOX MERCURY OUTBOARD RFR FITMENTS (RMS030-100048)

Plug-and-play, aftermarket replacement CDI box for Mercury outboard motors from RM Stator. Refer to fitment guide for models.

Dimensions:

• Width: 79mm
• Length: 136mm
• Height: 26mm
• Fixation holes, centre to centre: 143mm

Installation:

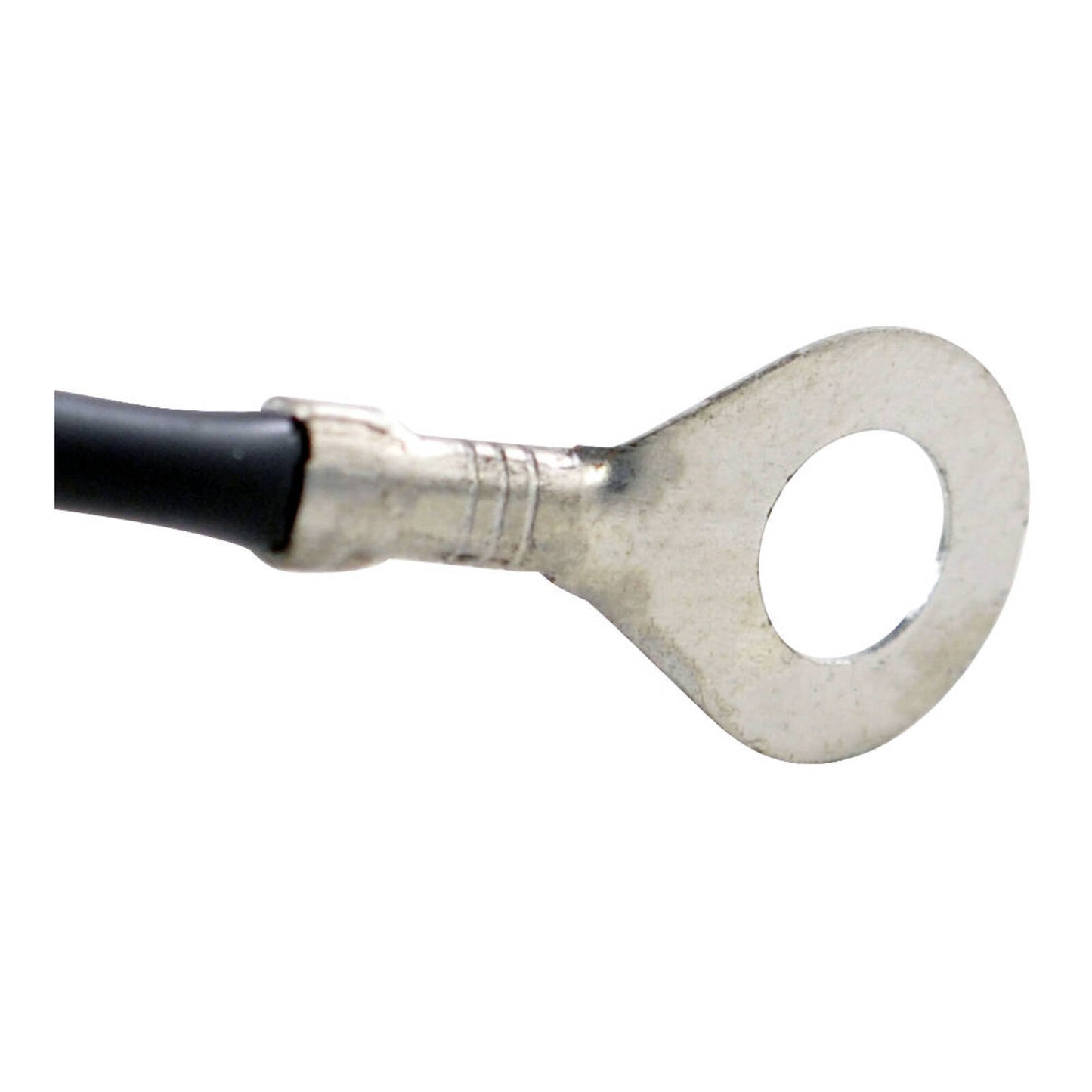

• If the Black Ground Wire is Not Already Connected to the CDI Box, fasten to One of the 4 Mounting Holes on the Outside of the Box
• Fasten the Other End of This Black Wire to a Good Ground Spot on the Engine.
• If the Engine Uses an Orange Colored Lead That is Connected to the Box, Connect This to the "Black/Yellow" Stud on the New Box.
