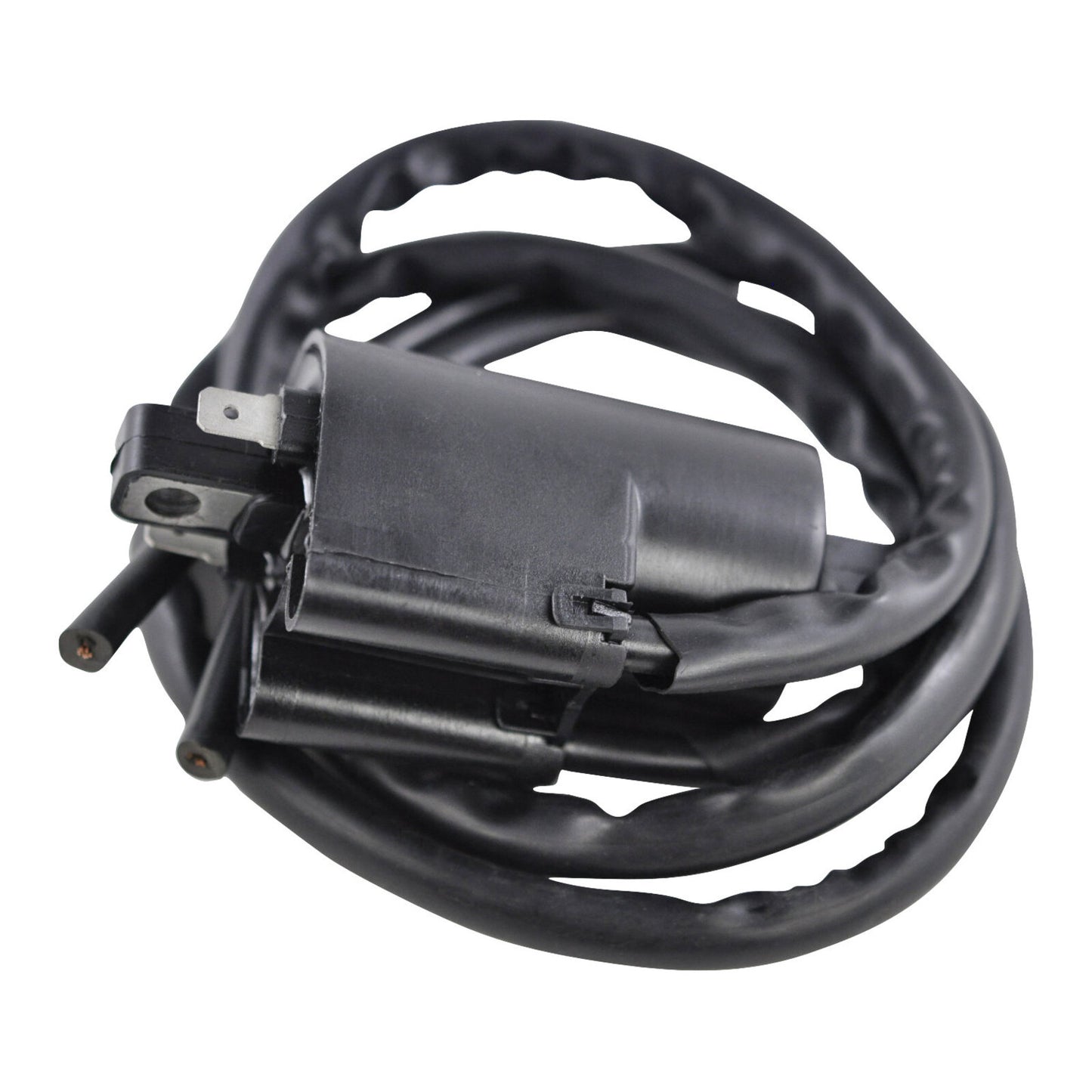

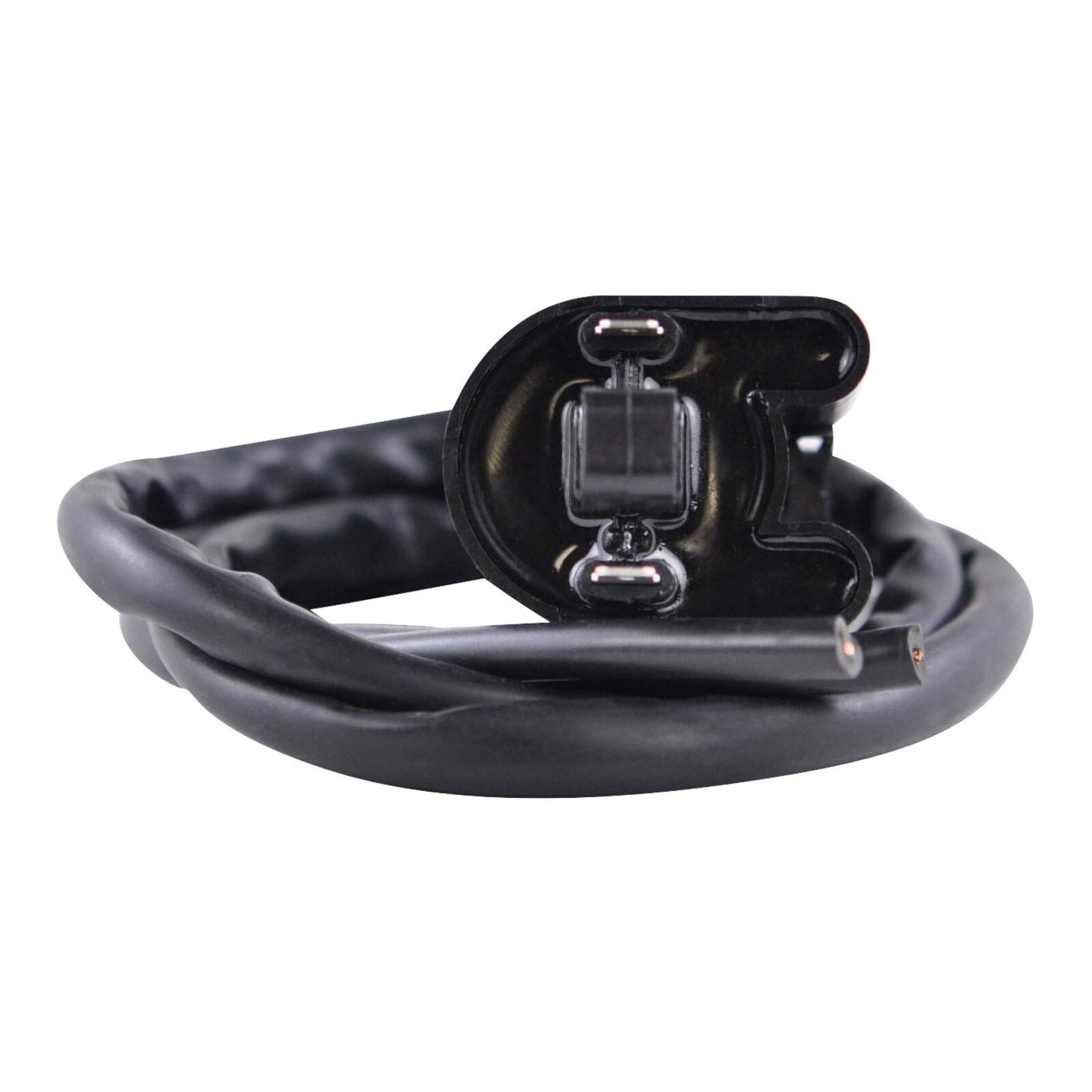

External Ignition Coil - Assorted Yamaha Models

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• All products shipped are tested

Dimensions:

Width: 95 mm
Length: 150 mm
Height: 50 mm
Wires length: 375 mm
Fixation holes centre to centre: 90 mm
Primary resistance: 2.8 ohms
Secondary resistance: 13.8 ohms (200K)

Please note: There are two different external ignition coil used for the 2008-2014 Road star models. The main difference between the two is the length of the wires and the primary resistance. Please look at our specifications section for the complete specification of this part. This part has a primary resistance of 2.8 ohms, if your part has a primary resistance of 4.3 ohms please look for RMS060106010.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.
