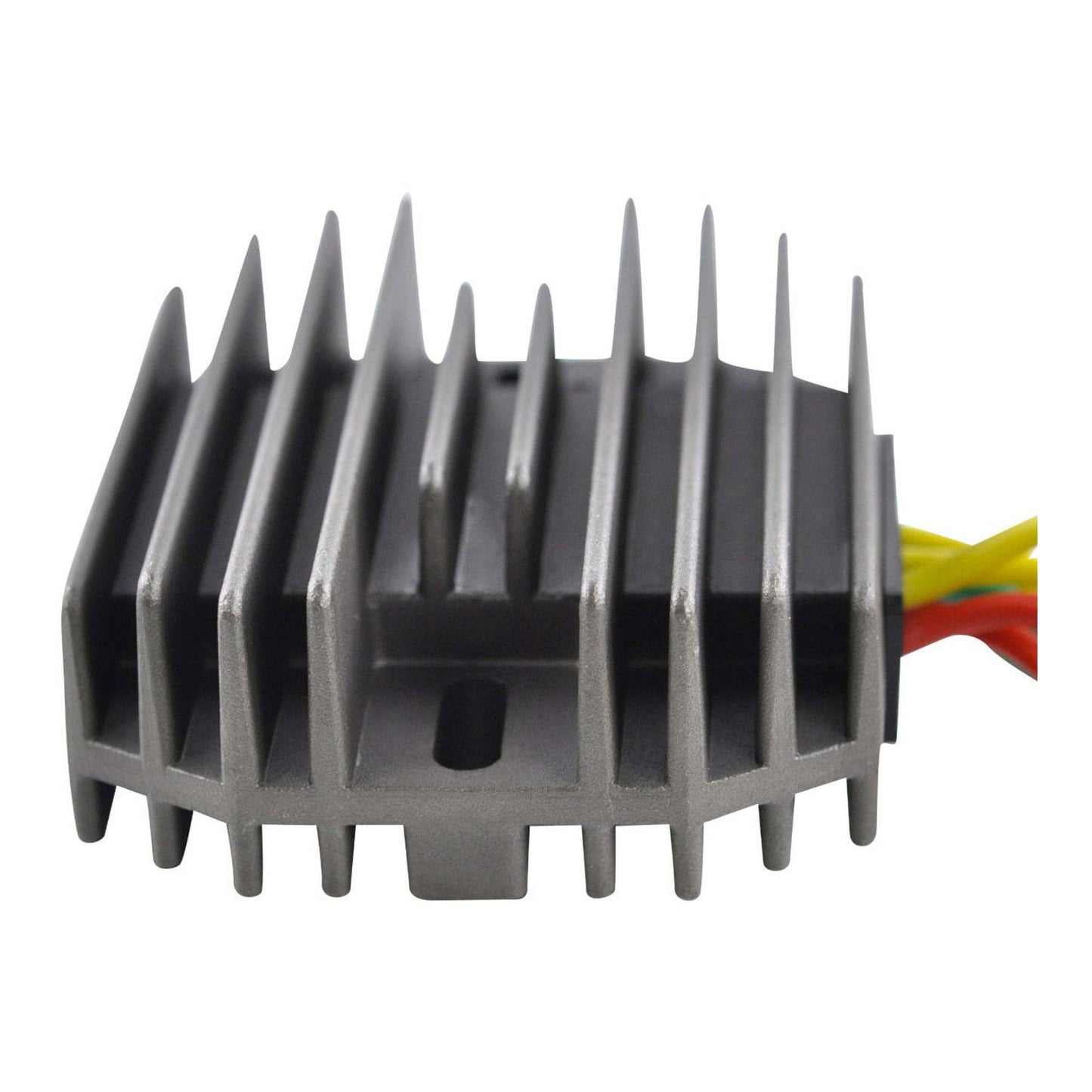

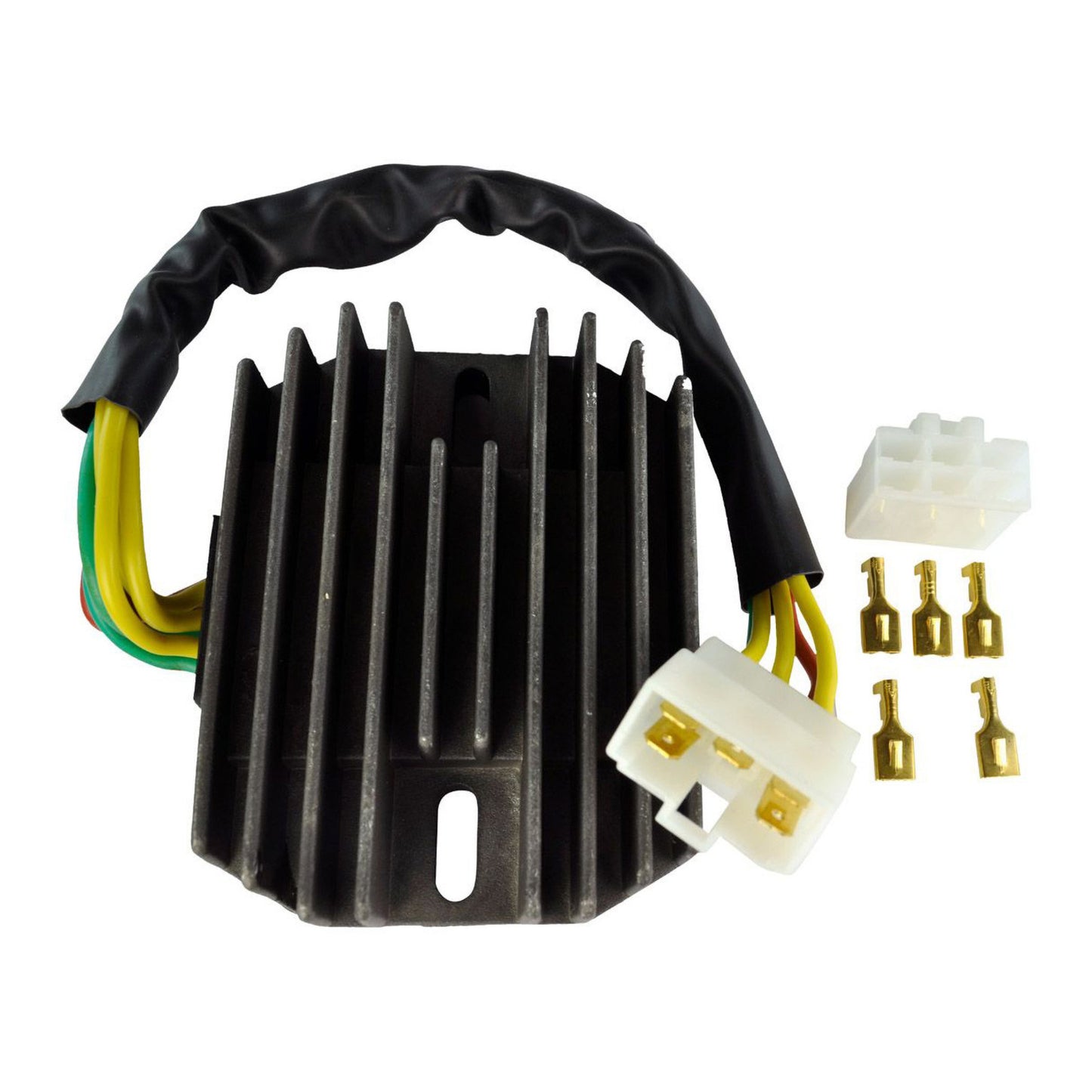

REG TRI BONNEVILLE 900 2001-2010 (RM30405)

Brand new voltage regulator rectifier

BEWARE: 1996 and early 1997 454 Bearcat 4x4 has a different plug. Please consult installation instruction before buying this product. Arctic Cat split the year on certain models; the RM30405 replaces OEM parts #3430-037 and #3430-016.

• Direct replacement to your original unit.
• Plug-and-play, direct fit, easy installation.
• No assembly required
• Quality exceeds the OEM equipment
• Improved heat sink and charging capabilities
• Higher grade of electric components.
• All products shipped are tested

Dimensions:

• Width: 80mm
• Length: 115mm
• Height: 54mm
• Fixation holes centre to centre: 80mm
• Wires length: 275mm

Other specifications:

• Number of plugs: 1
• Number of pins: 5
• Minimum Charging Voltage: 14.5V +/- 0.5V
• Maximum Charging Current: 25A-35A/300W-500W
• Open Circuit Voltage: <15V
• Operation Temperature: -20° to 85°

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.
4. There are multiple regulators for some Triumph vehicles. Please refer to the note below to make sure you purchase the right part:
• Bonneville 2017 to 2020: This part will only fit on Bonneville with a VIN HIGHER than 513325. If you have a LOWER VIN you should look for parts # RM30506 / RM30506H / RMS022-105928 / RMS023 106203 / RMS023-107140.
• Thruxton from 2008 to 2020 This part will only fit Thruxton with a VIN HIGHER than 513322. If your vehicle has a VIN inferior to 513321, refer to OEM T1300890.
