SPLYT TECHNOLOGY STATOR + TWIN REGULATOR KIT (RMS900-106254)

As featured by Dirt Trax Television, RMSTATOR SPLYT Technology provides a reliable solution to well-known charging system failures. Using a dual output stator with two completely separate stator windings, this system splits the power generated by the stator into two separate voltage regulators. These regulators then each operate with only half of the load of the original system, allowing them to maintain a lower temperature and increase reliability.

Ultimate reliability

With a stock charging system, voltage regulators are consistently operating within 5% of their maximum capacity, leading to heat and stress-related failure. With the RMSTATOR SPLYT system, both SERIES voltage regulators are operating with 40% overhead for long life and stable output.

Better design

Contrary to the original OEM stator that uses one three-phase stator winding, the SPLYT stator contains two completely separate three-phase coil windings. Each of these two windings then produces half of the power of the stock stator lowering the temperature in each individual coil.

Easy to install

All parts use a Plug-and-Play design, just like the original OEM ones, so no special tool or knowledge is needed to install this system.

Harnesses included

Relocation wiring harnesses allow relocating the regulators anywhere on your vehicle to get better air flow and easier access.

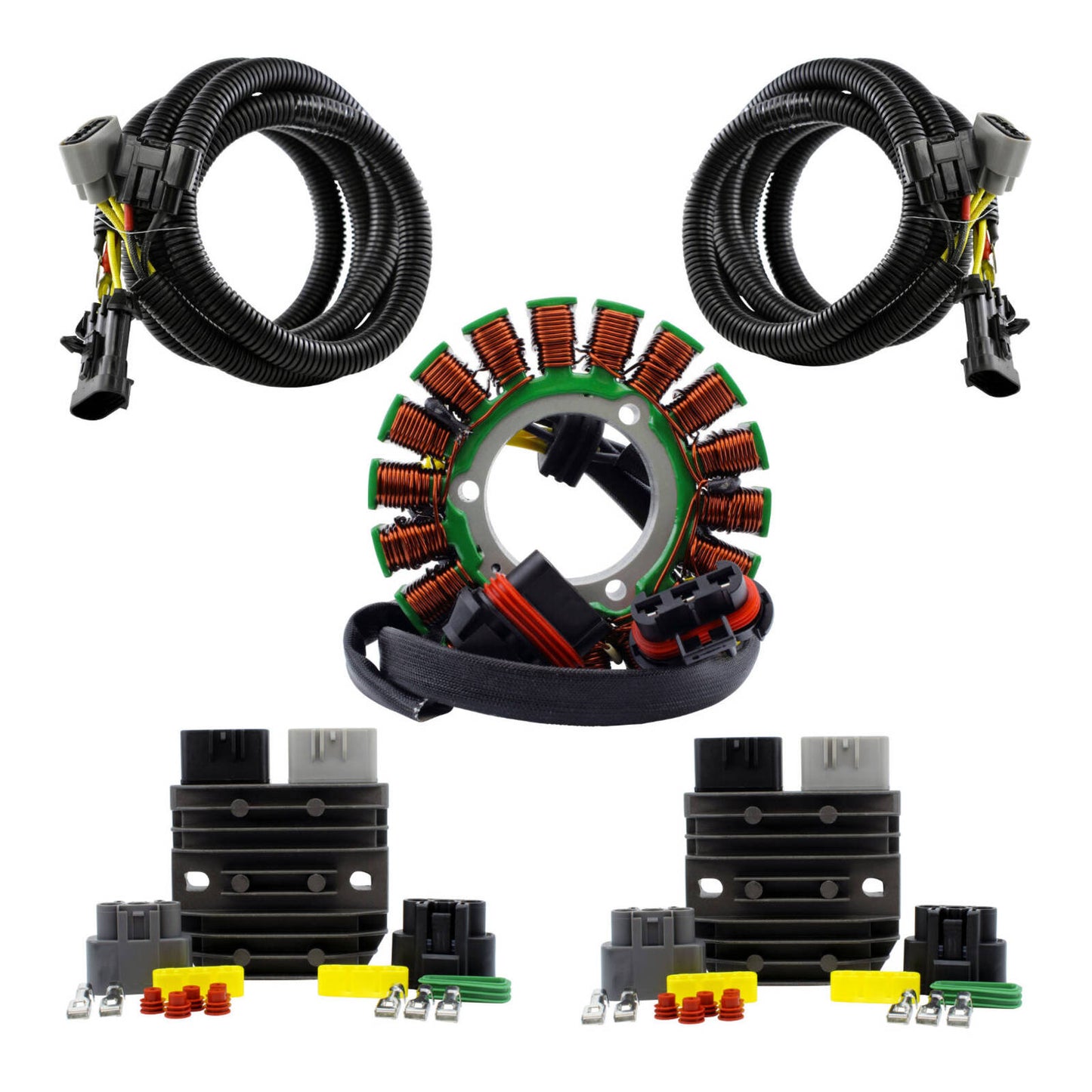

This kit includes:

• Dual output stator
• Two SERIES voltage regulators

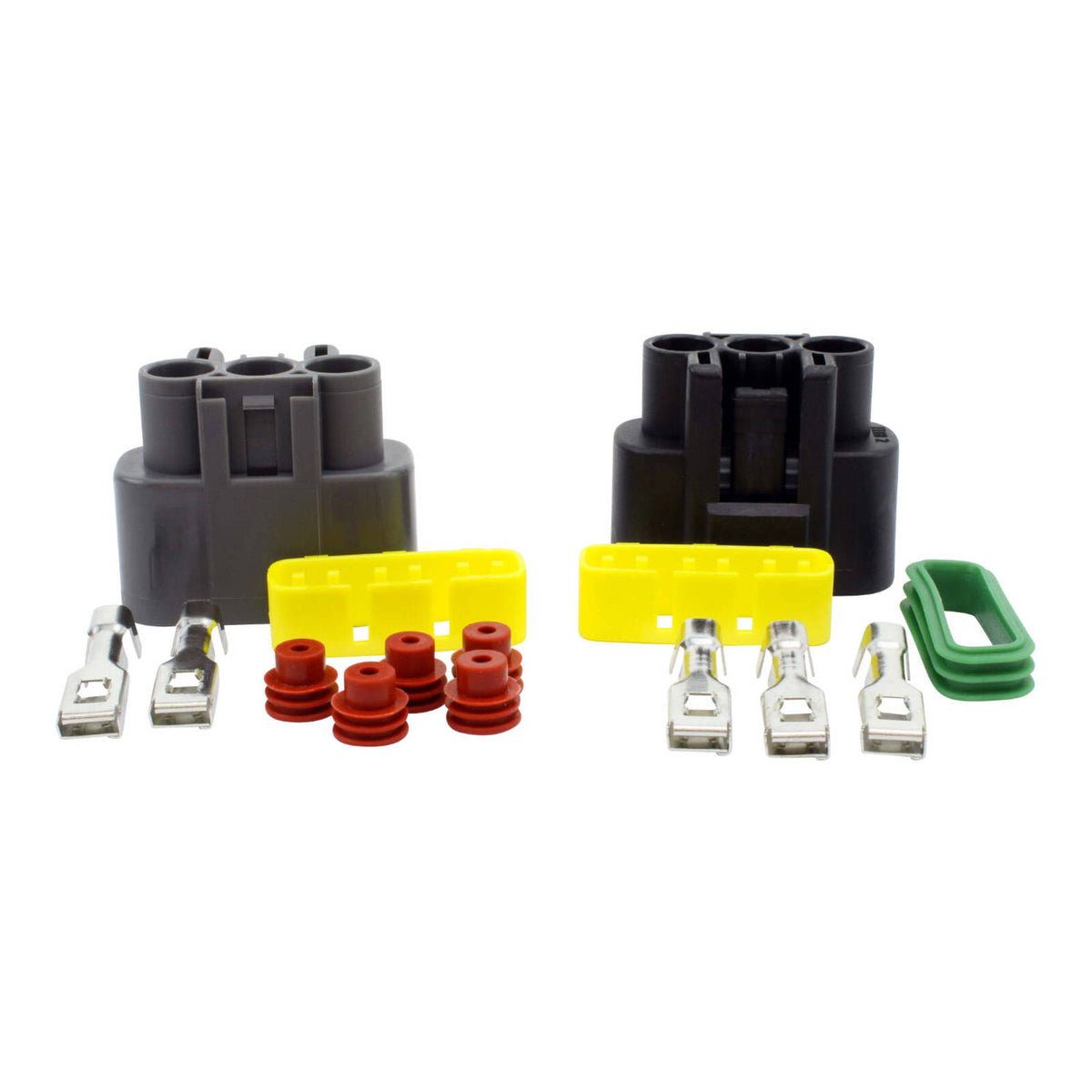

• Two automotive grade relocation wiring harnesses with OEM-quality heavy-duty connectors
• Complete instructions for voltage regulator relocation

Solve your Polaris RZR & Sportsman charging system issues today, once and for all, with RMSTATOR!

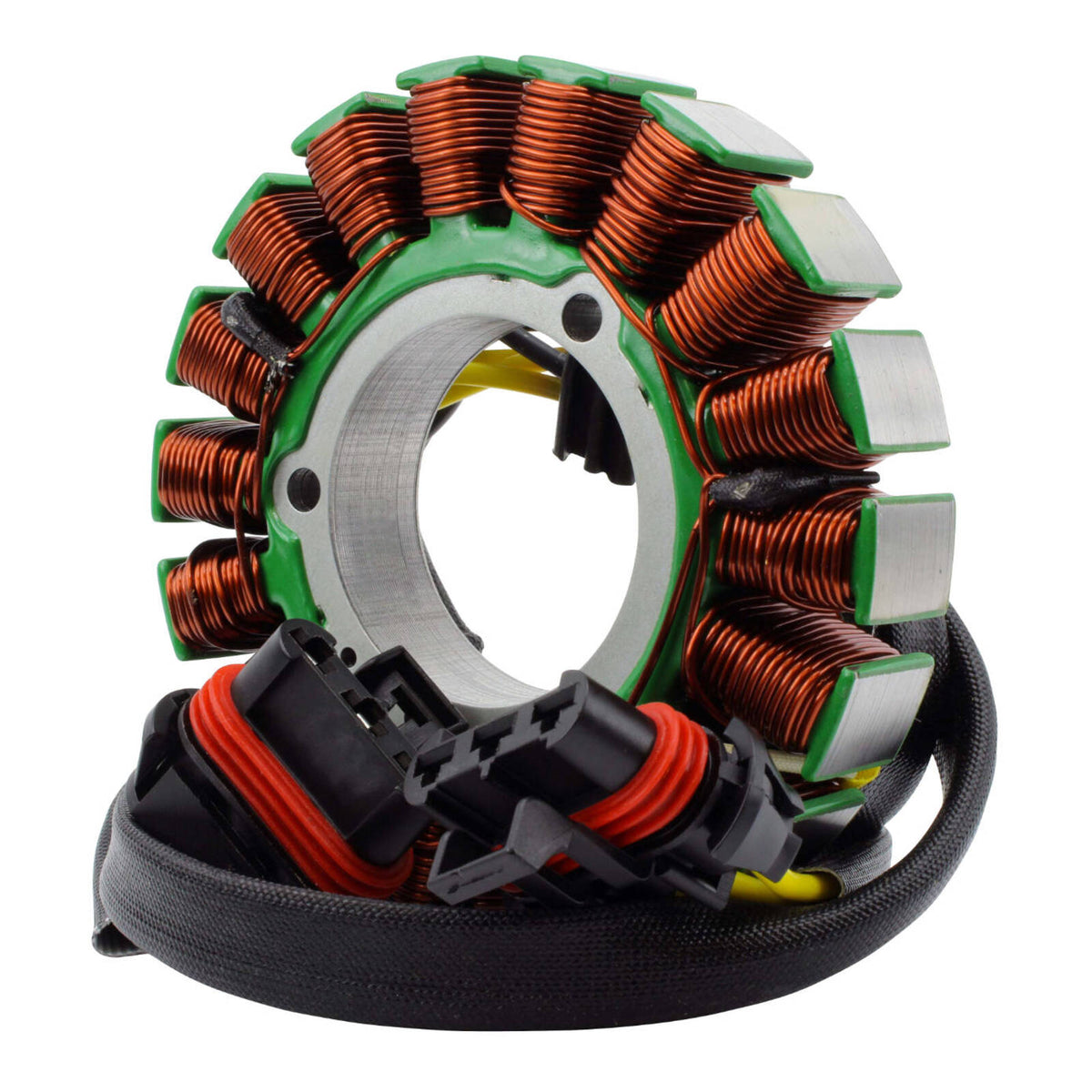

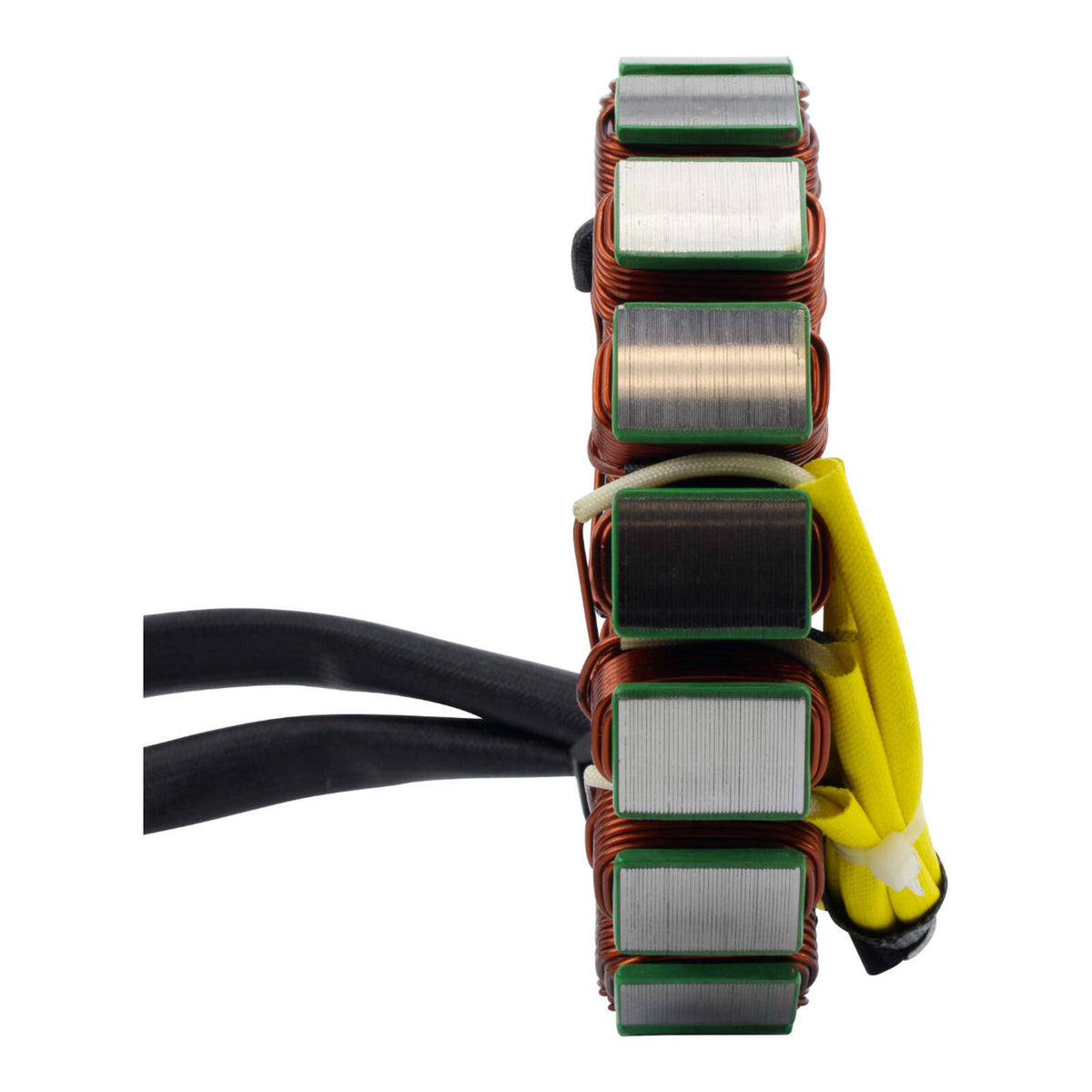

Dual Stator Dimensions
Interior diameter: 53 mm
Exterior diameter: 125 mm
Thickness: 26 mm

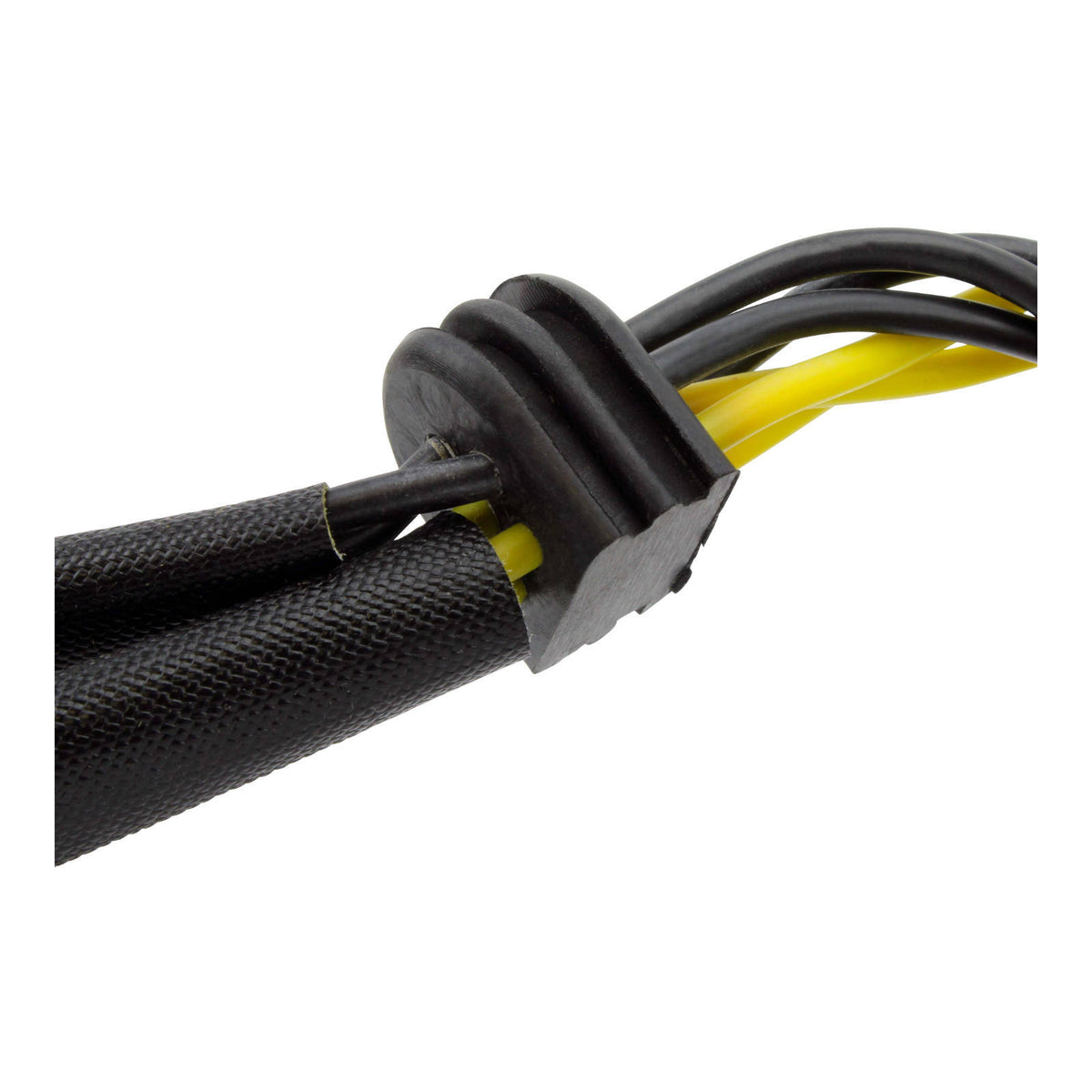

Length of wires stator to grommet: 125 mm
Length of wires grommet to plug: 290 mm & 550 mm

Other specifications:

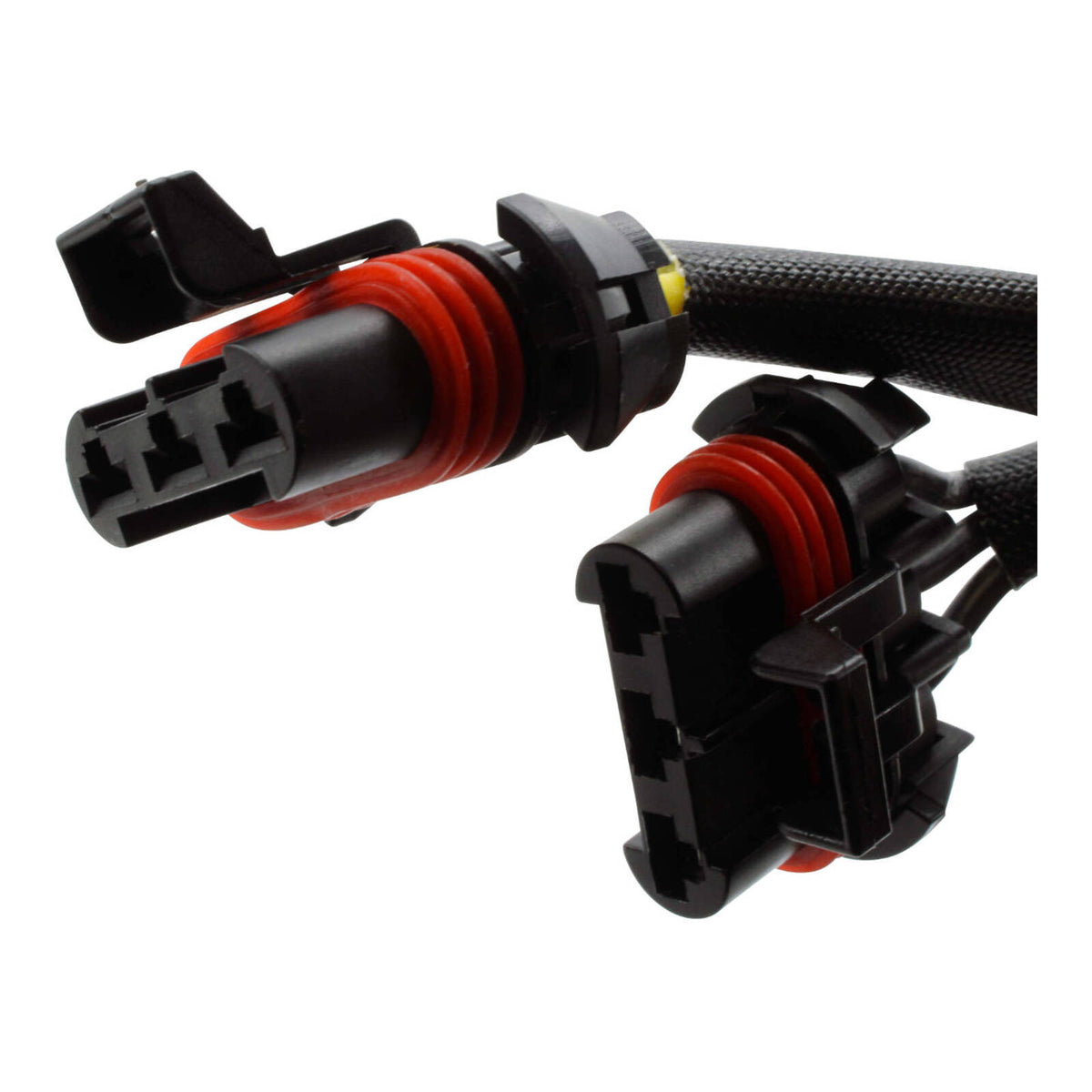

Number of wires: 6
Number of plugs: 2
Number of pins: 6
Number of poles: 18

Wire to wire resistance:
Alternator: Yellow/Black to Yellow/Black = 0.5 ohms +-20%

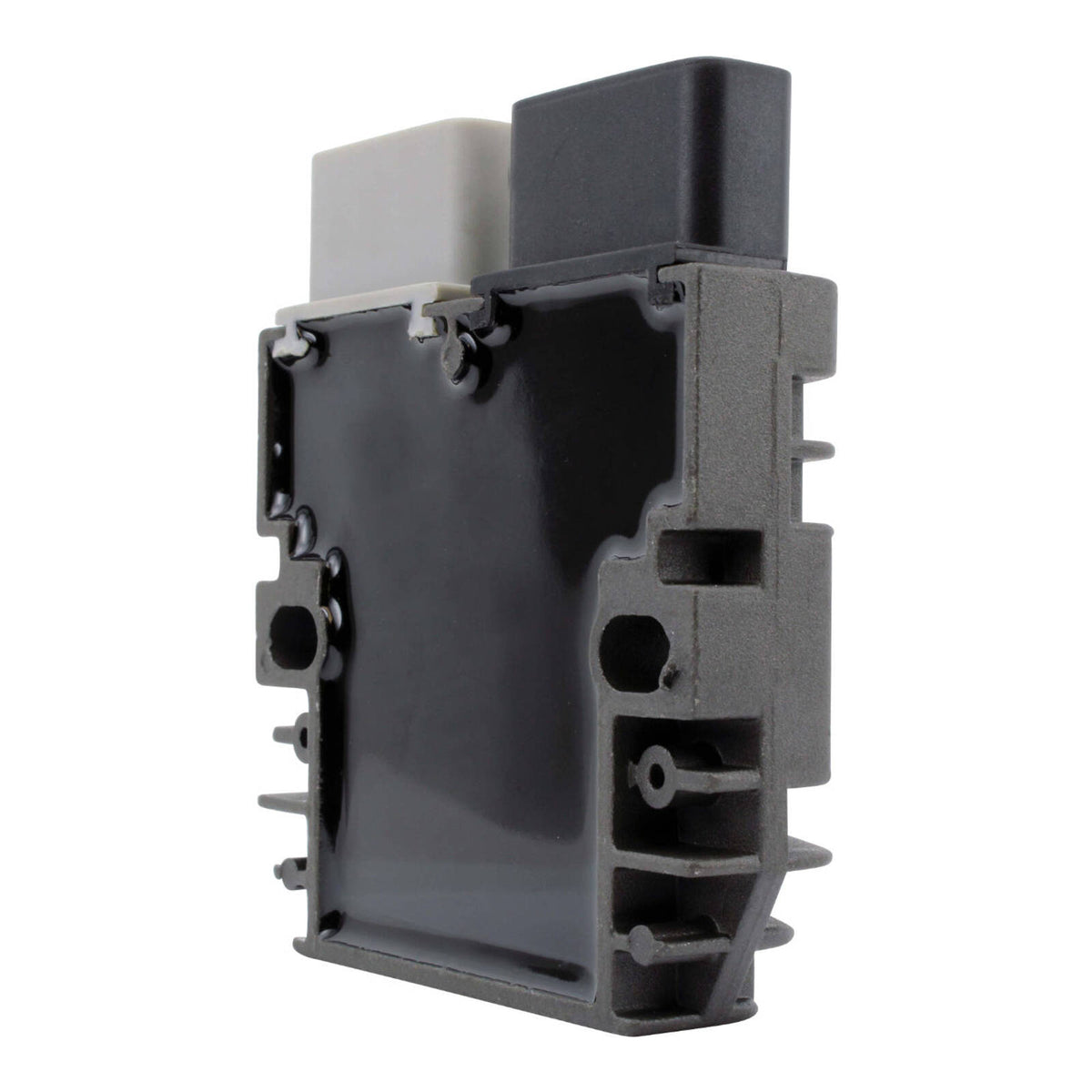

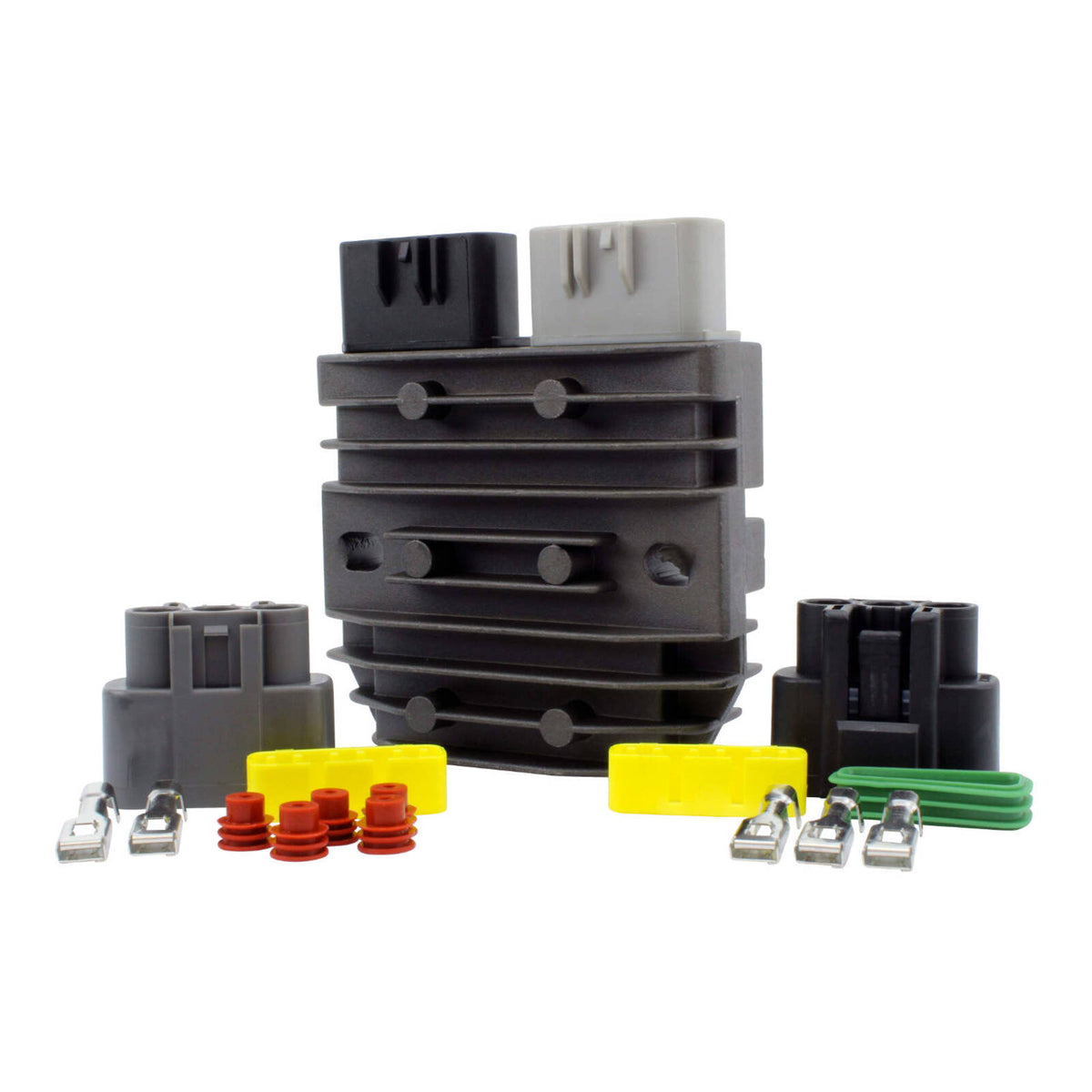

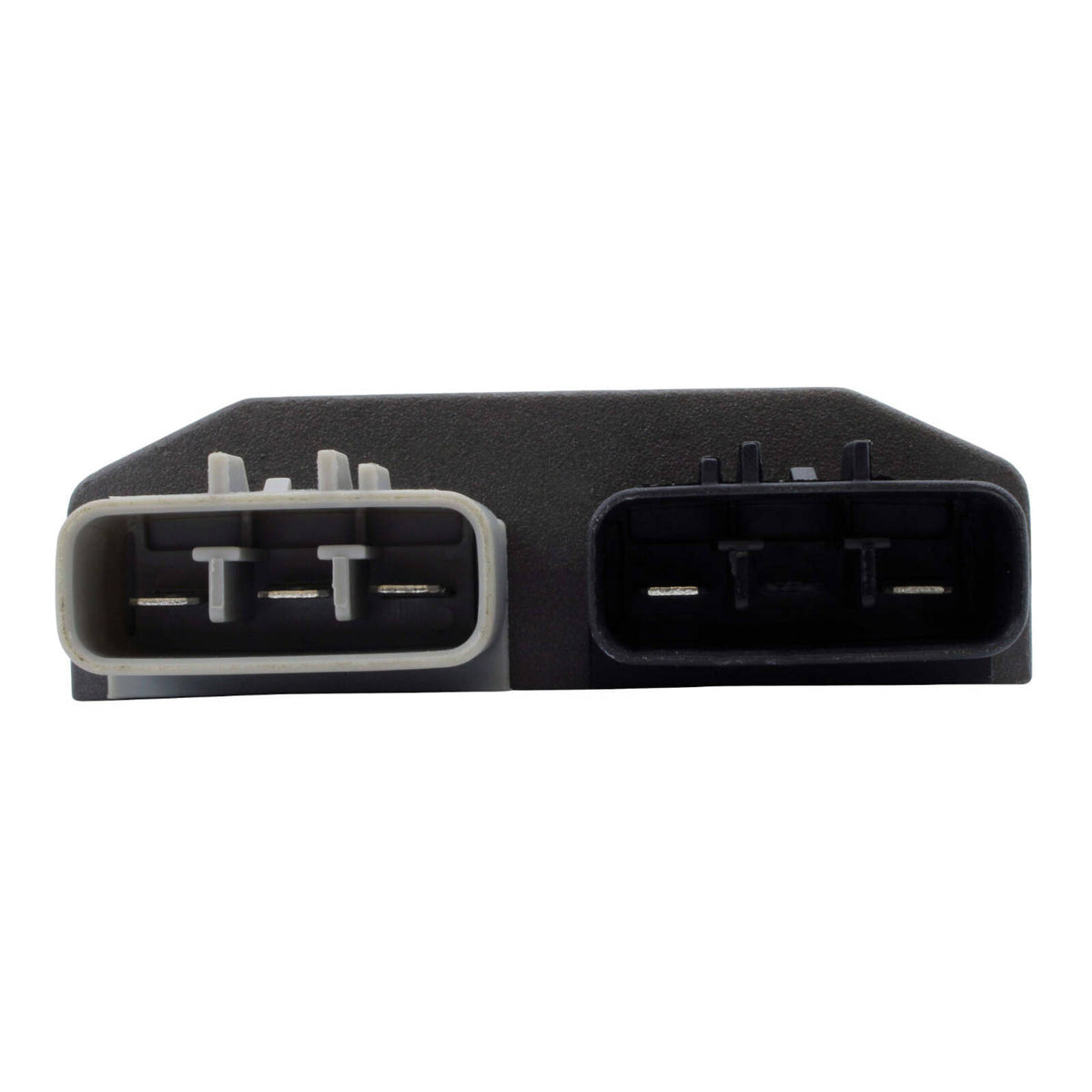

Regulator Dimensions
Width: 84 mm
Length: 90 mm
Height: 32 mm
Fixation holes center to center: 69 mm

Other specifications:
Number of plugs: 2
Number of pins: 5
Minimum Charging Voltage: 14.5 V +- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20º to 85º

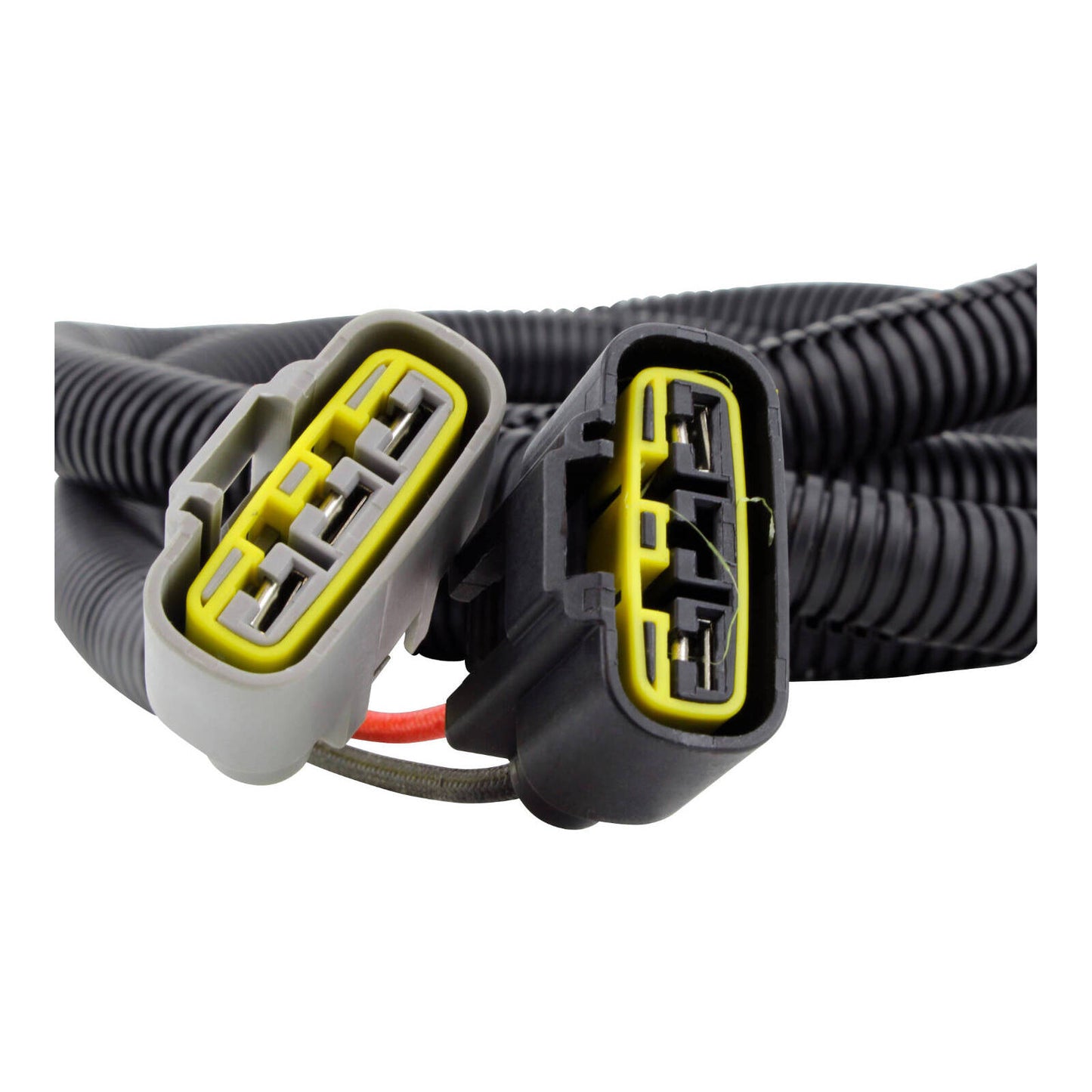

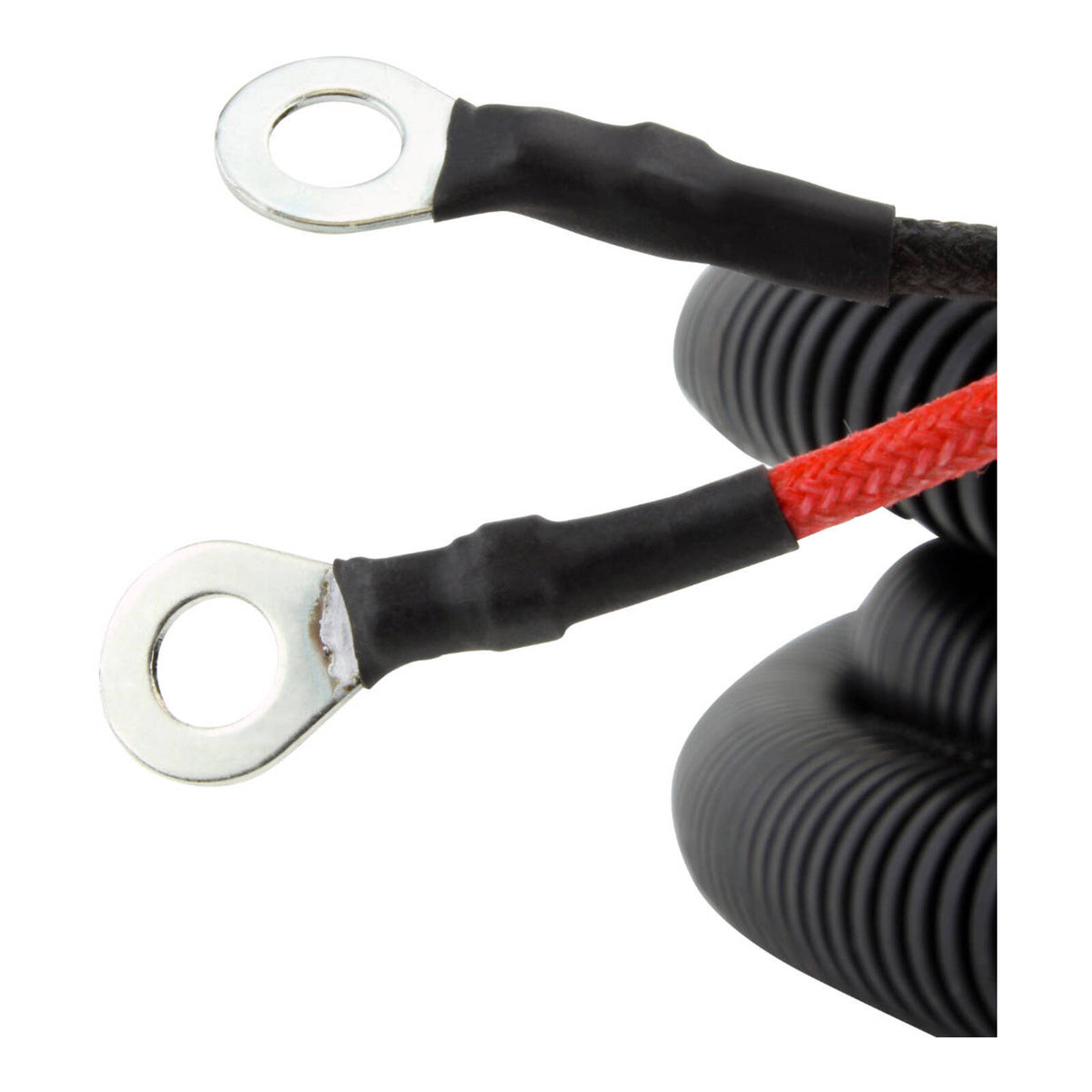

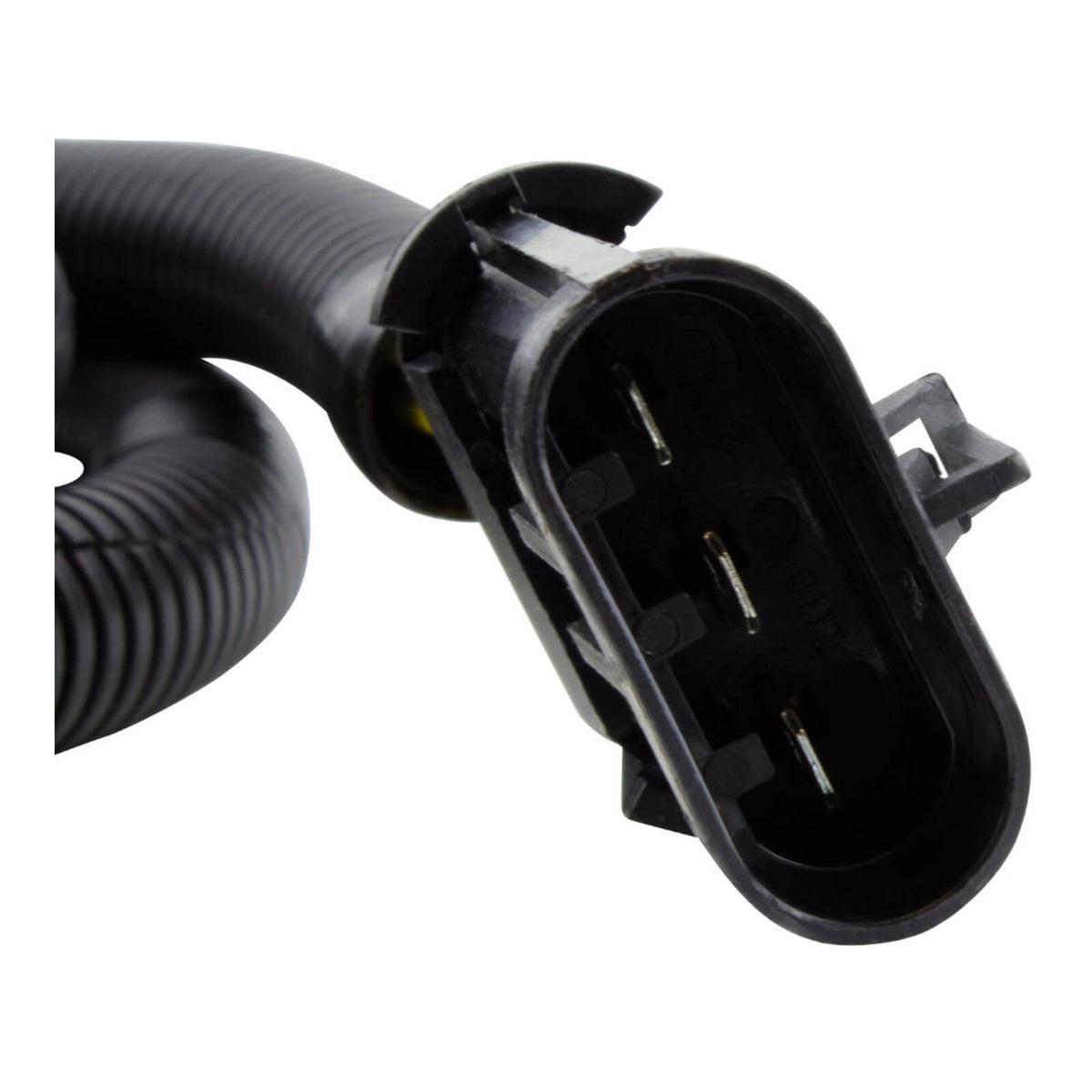

Relocation Harness Dimensions
Wires length: 3400 mm
Number of yellow wires : 3
Number of red wires: 1
Number of black wires: 1
Number of plugs: 2
