STATOR + CNC MOSFET KIT HON TRX420FA 14-19 (RMS900-107352)

STATOR + CNC MOSFET KIT HON TRX420FA 14-19 (RMS900-107352)

$619.90 NZD
$619.90 NZD
Sale Sold out
Tax included.
Title

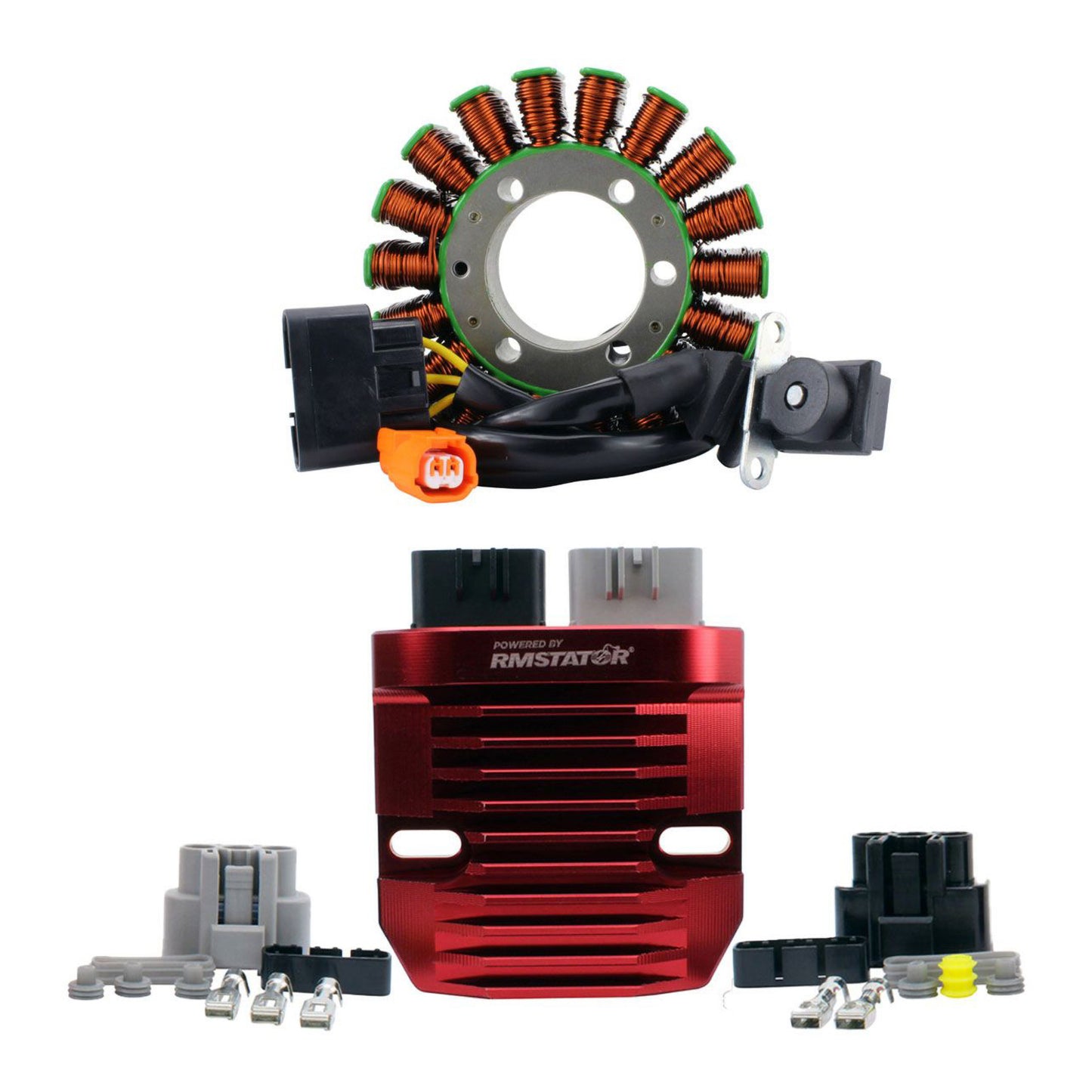

Kit Stator + RMSTATOR Red Machined Aluminum Mosfet Regulator

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • All shipped products are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

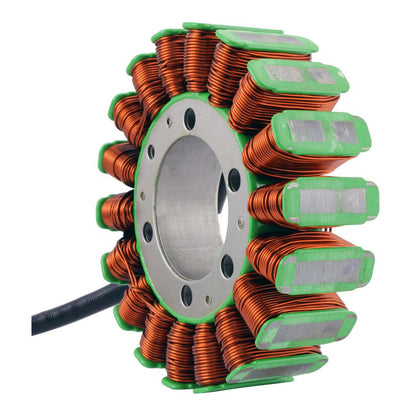

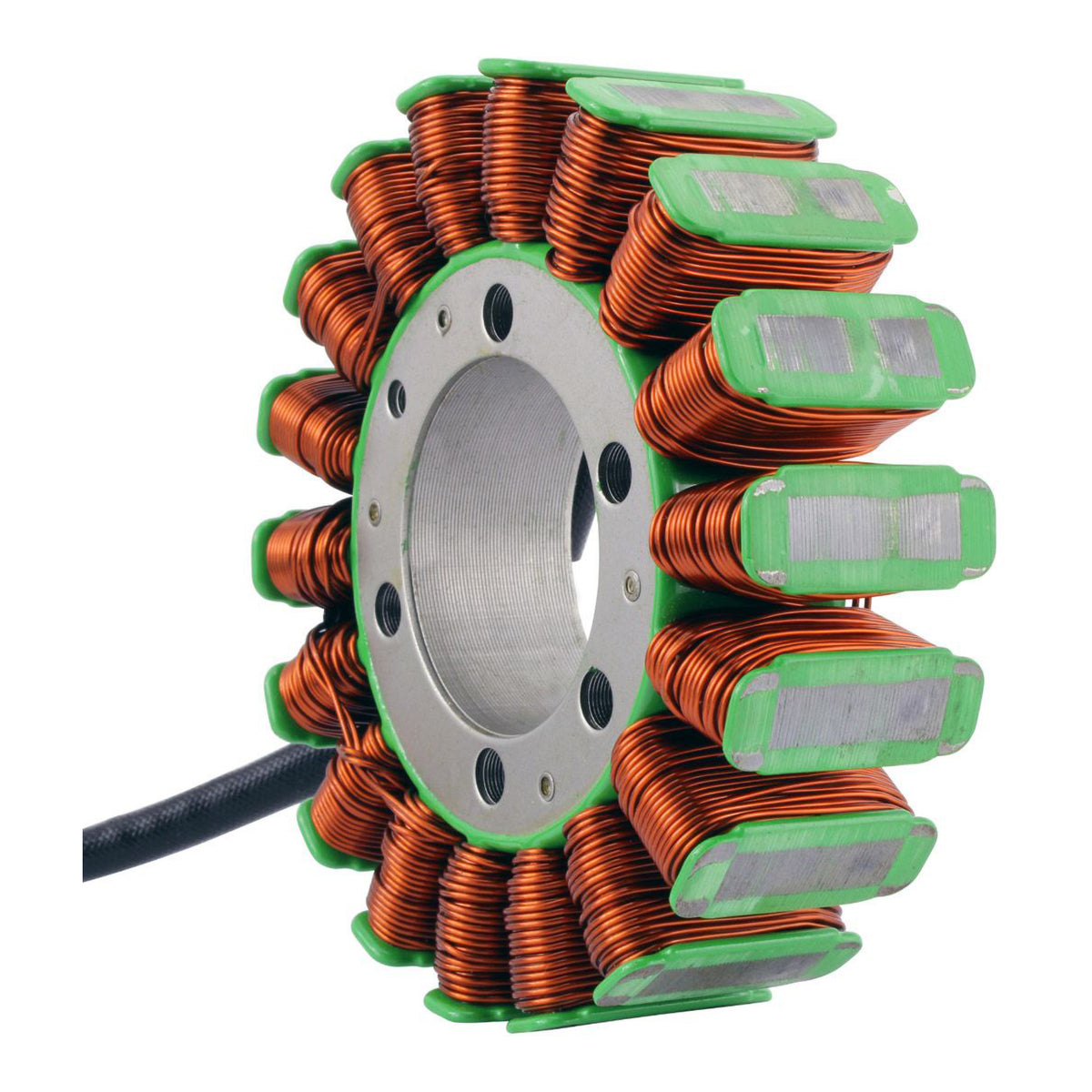

Brand new aftermarket Stator

  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius

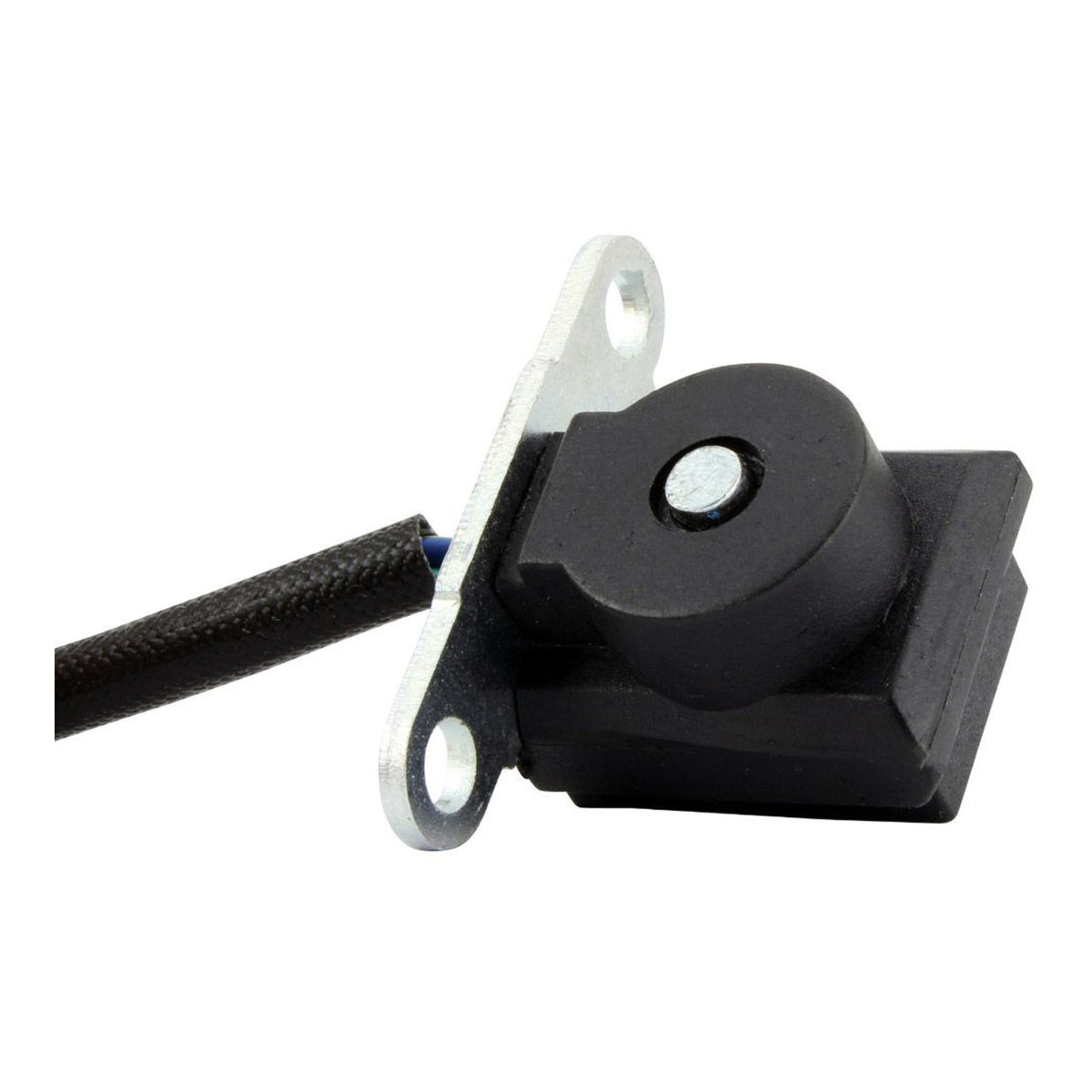

  • Pick up pulsar coil included

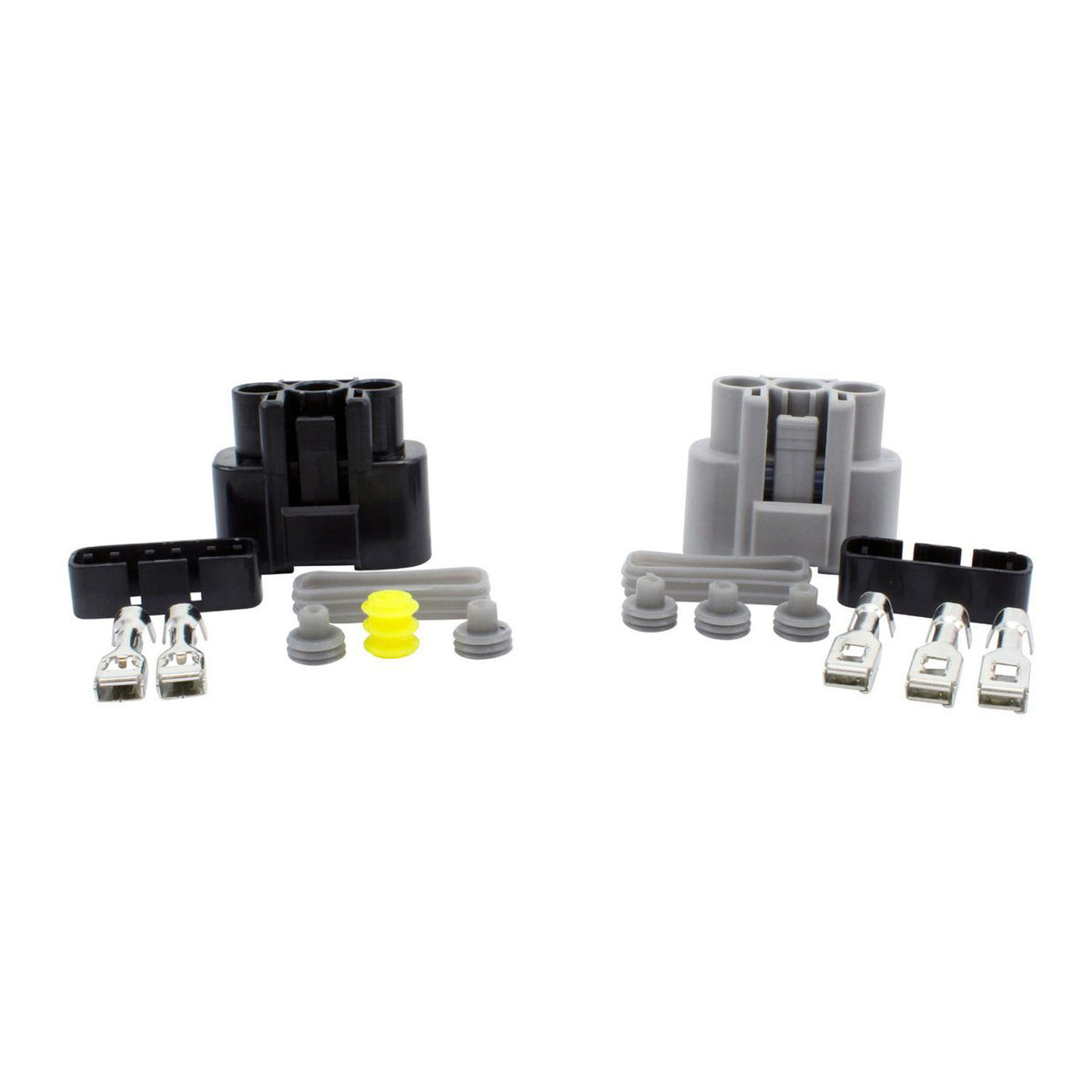

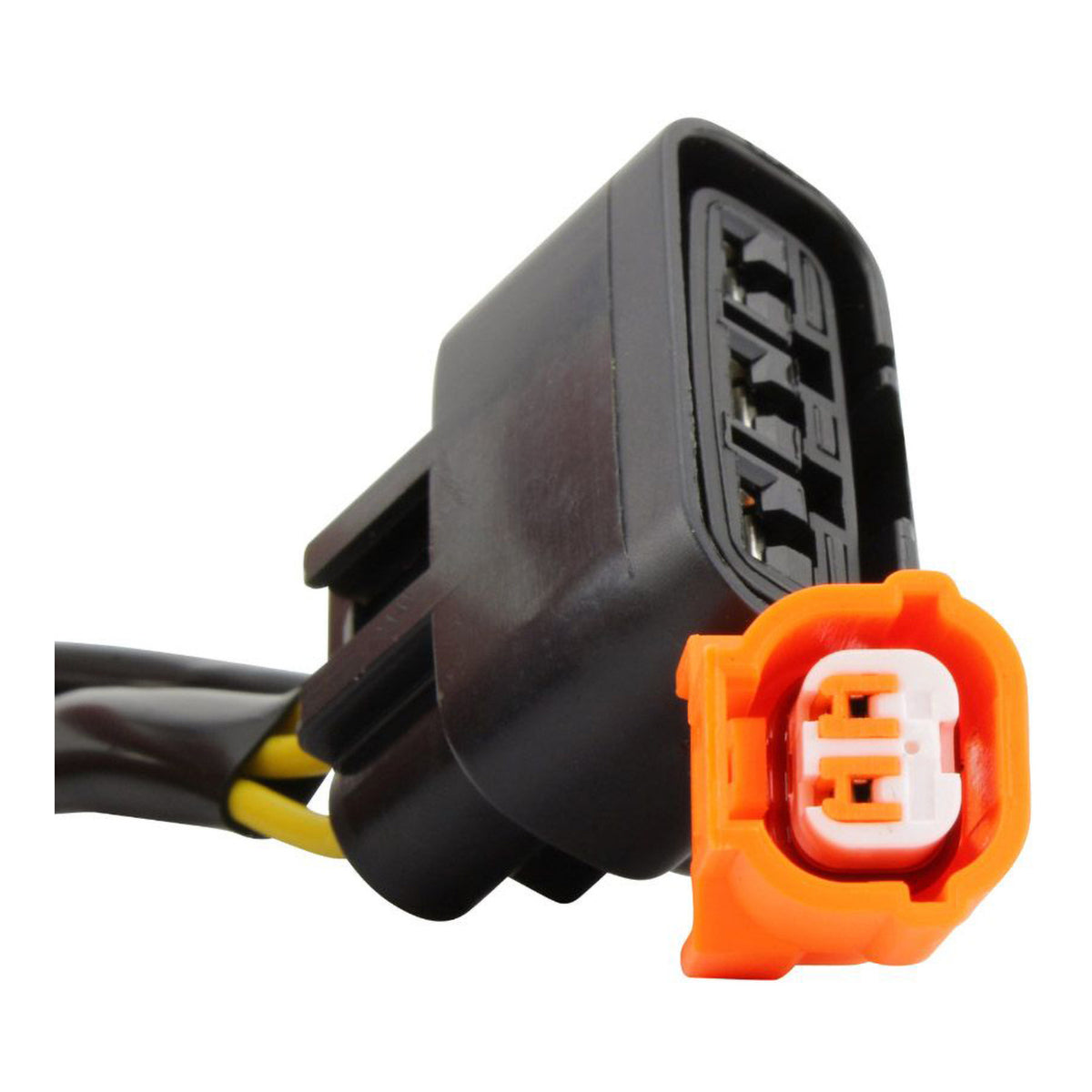

  • Connectors included

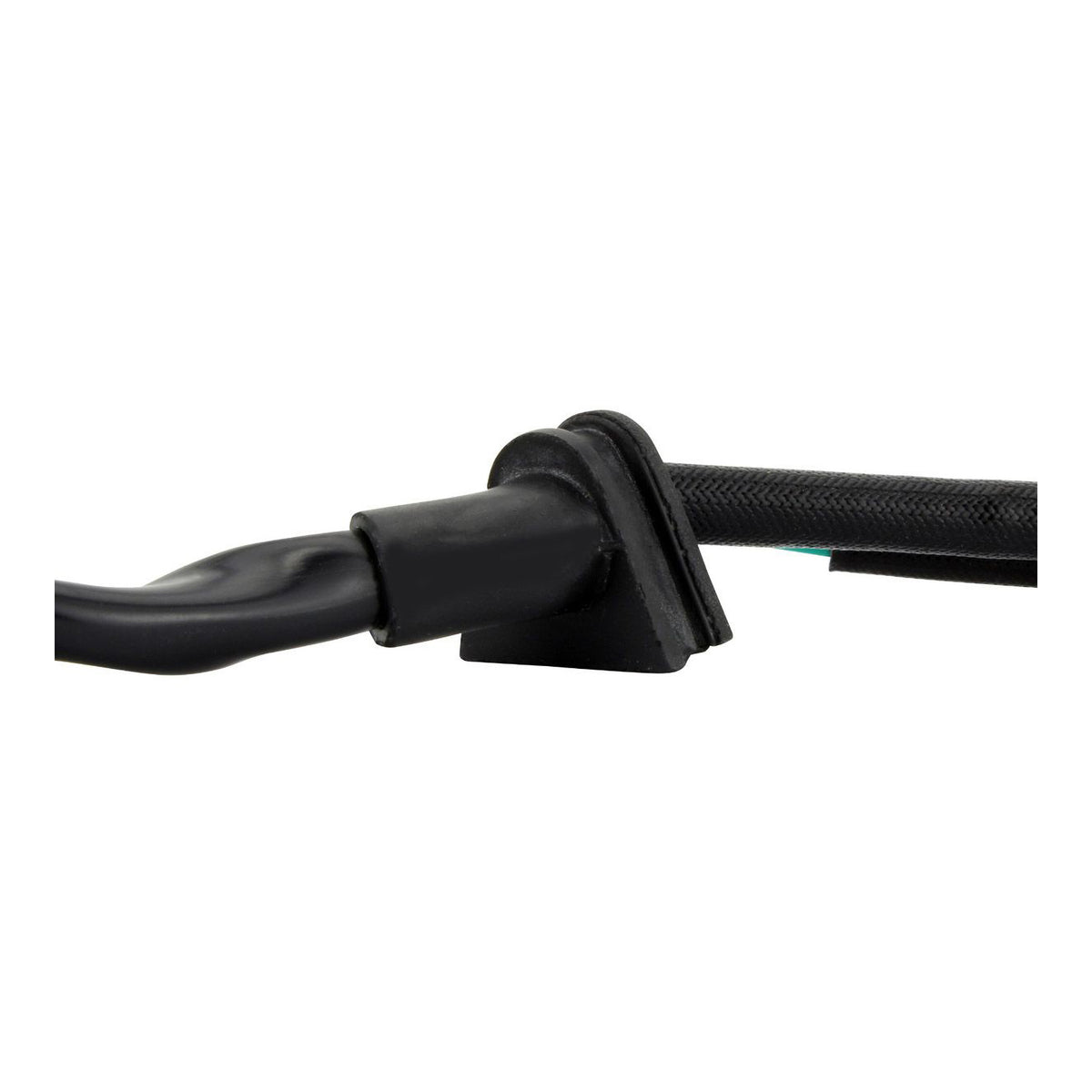

  • Rubber grommet included

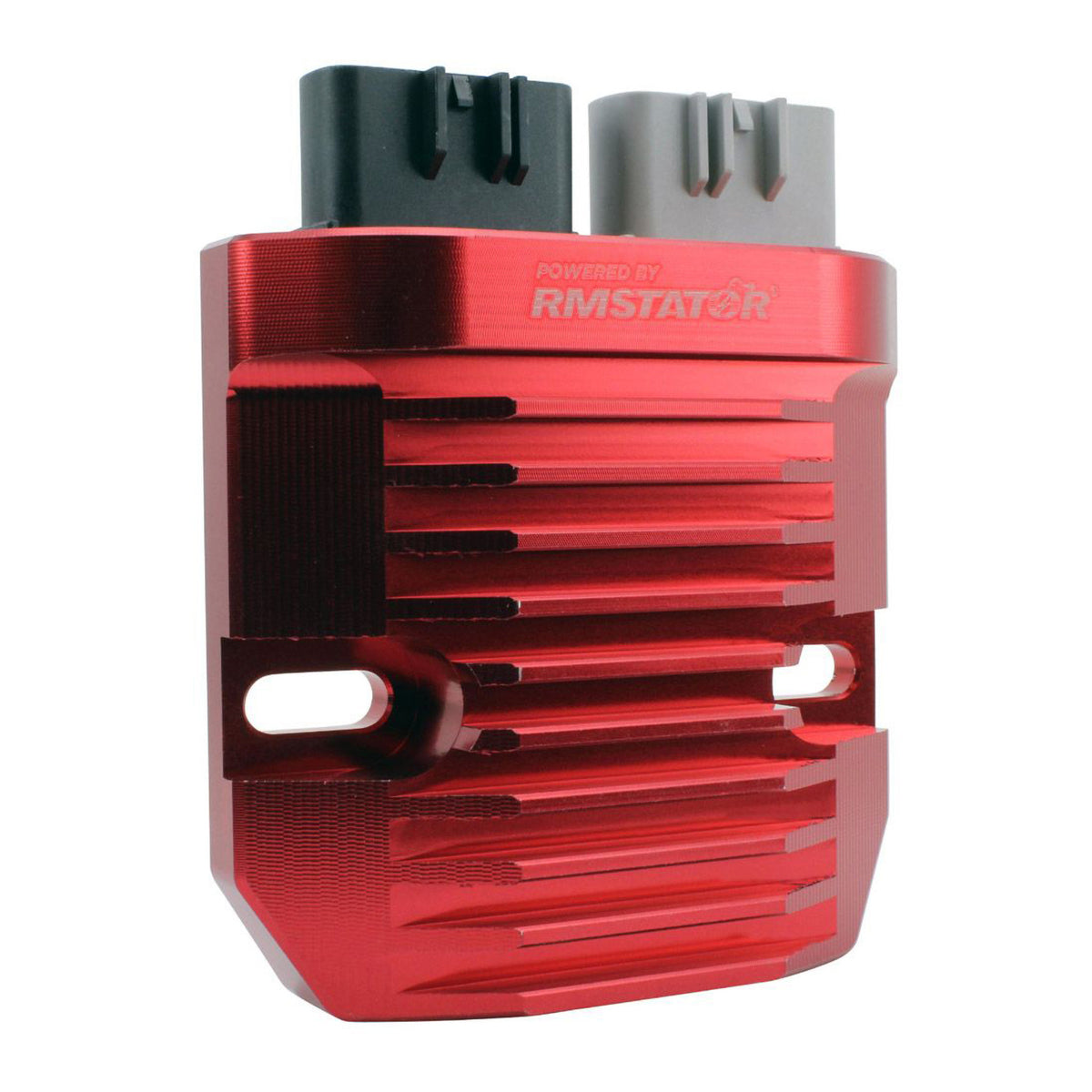

Brand new RMSTATOR Red Machined Aluminum Mosfet Regulator

Our new red machined aluminum Mosfet voltage regulator is a great upgrade for heat dissipation in any Powersports charging system. After 10 minutes of use, our billet aluminum heatsink runs cooler by 33% than standard cast regulator housings. Our new red regulator, equipped with the renowned Mosfet regulation technology, is an added value to any three-phase permanent magnet charging system.

STOP BURNING YOUR REGULATOR RECTIFIER!
It is time to update or replace your voltage regulator with the advanced MOSFET type.
It runs cooler than all OEM diode-style regulators. In addition, this rectifier has overheat protection, rather than burn up, it will simply turn off for a while and cool off.

  • The quality exceeds the OEM equipment
  • Improved heat sink and charging capabilities
  • Higher grade of electric components

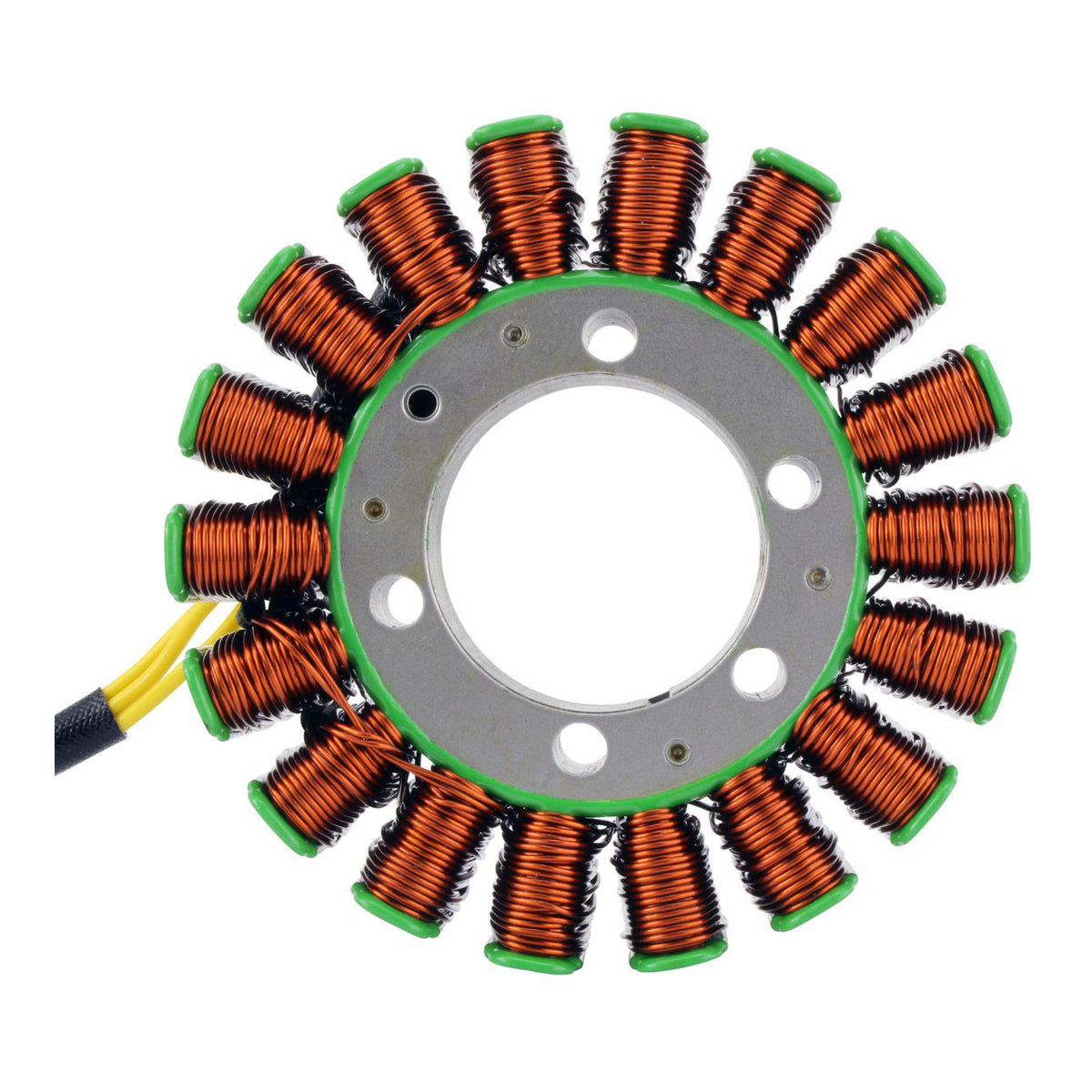

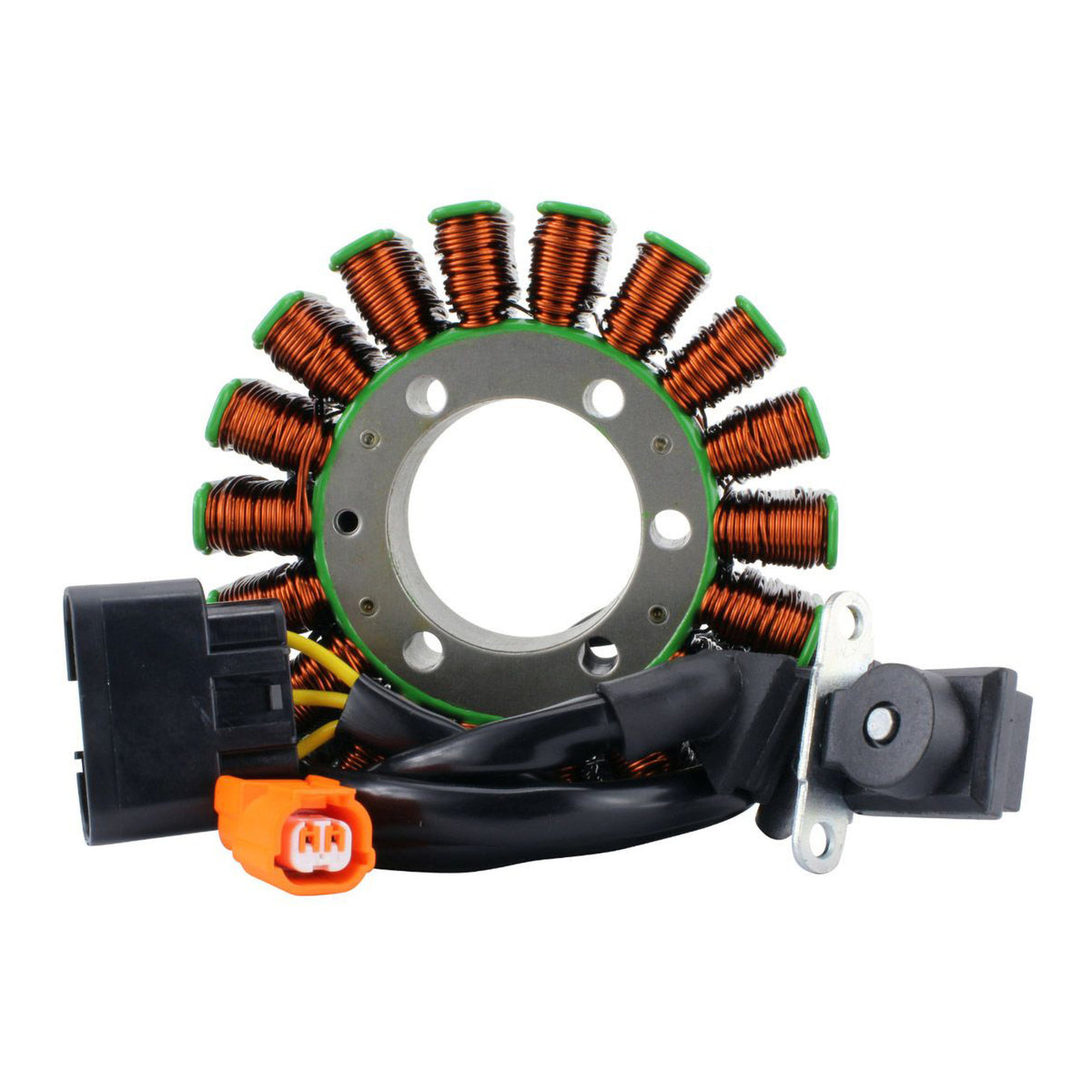

Stator

Dimensions:
Interior diameter: 42 mm
Exterior diameter: 107 mm
Thickness: 24 mm
Length of wires stator to grommet: 110 mm
Length of wires grommet to plug: 370 mm & 835 mm
Length of pickup coil's wire to grommet: 80 mm

Other specifications:
Number of wires: 5
Number of plugs: 2
Number of pins: 5
Number of poles: 18
Wire to wire resistance:
Alternator: Between each Yellow = 0.6 ohms +-20%
Alternator: to ground = O.L
Pickup: Blue/Yellow to Green = 116 ohms +-20%

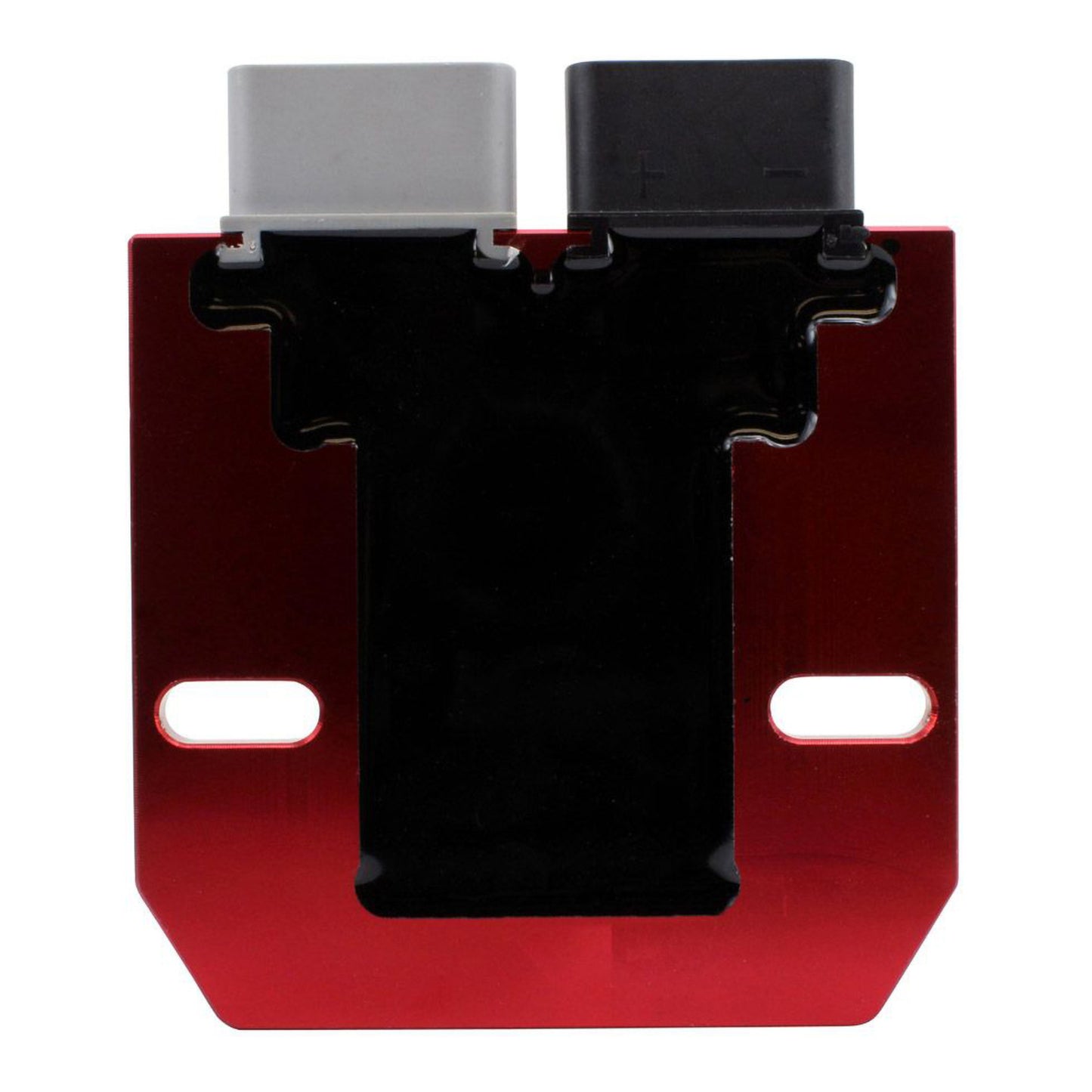

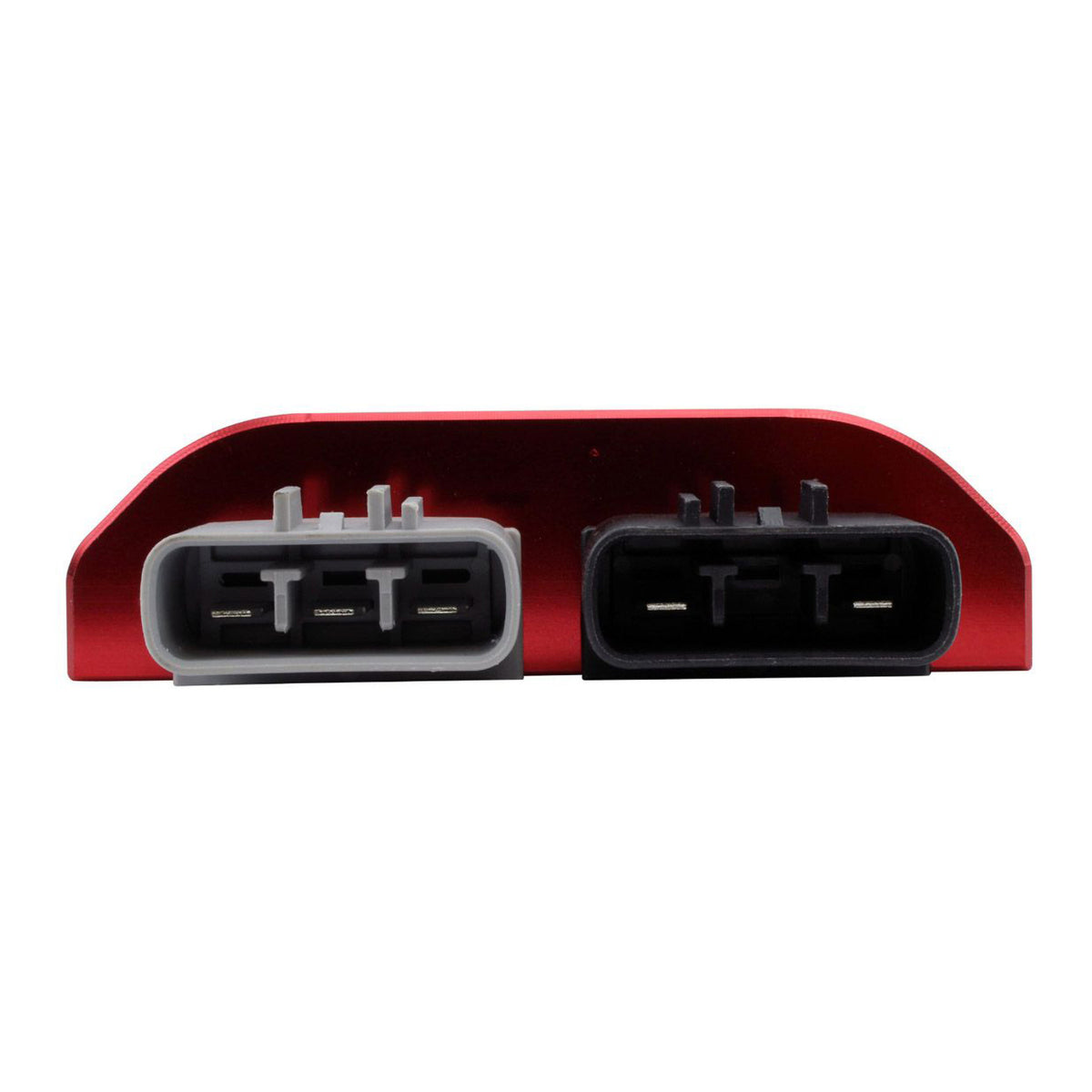

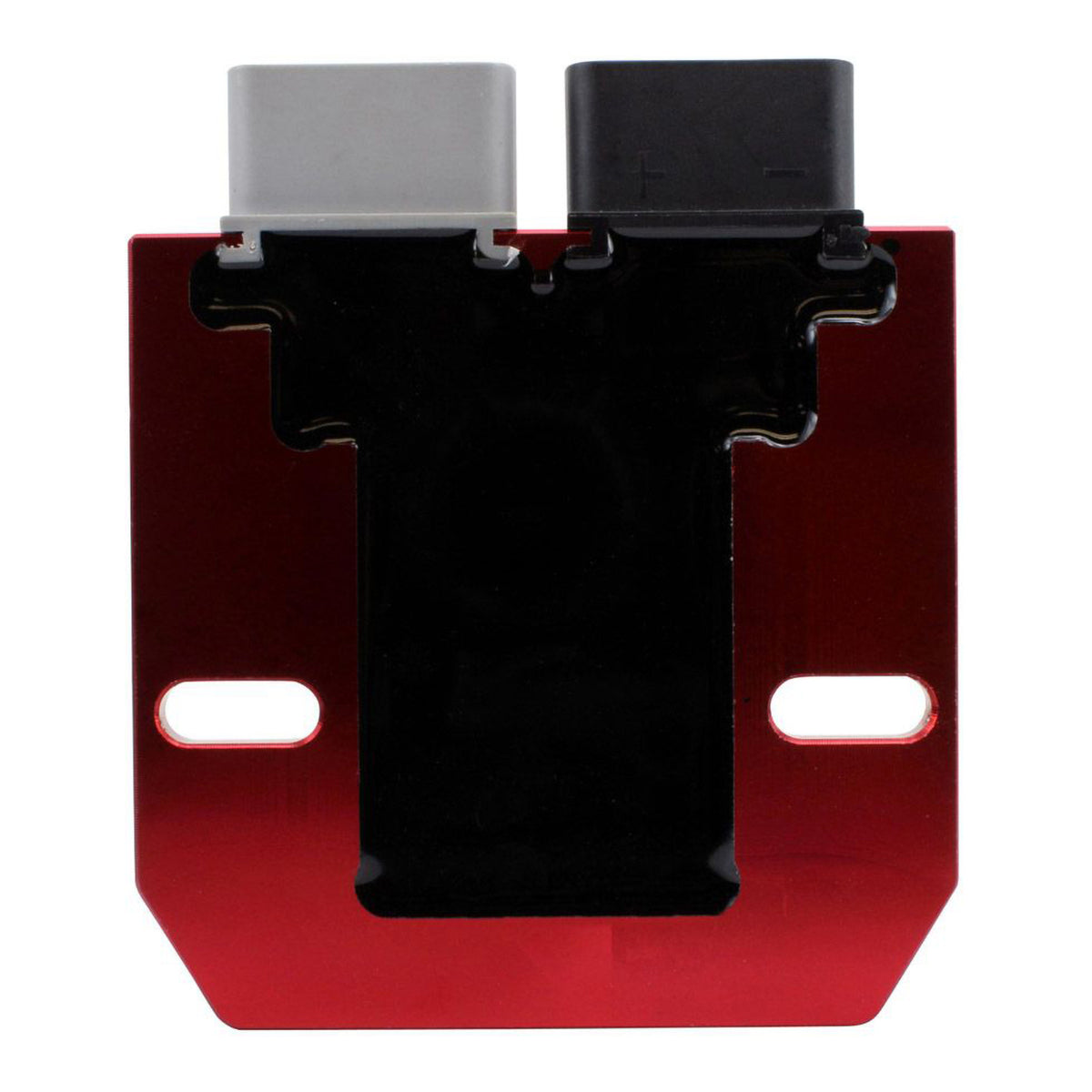

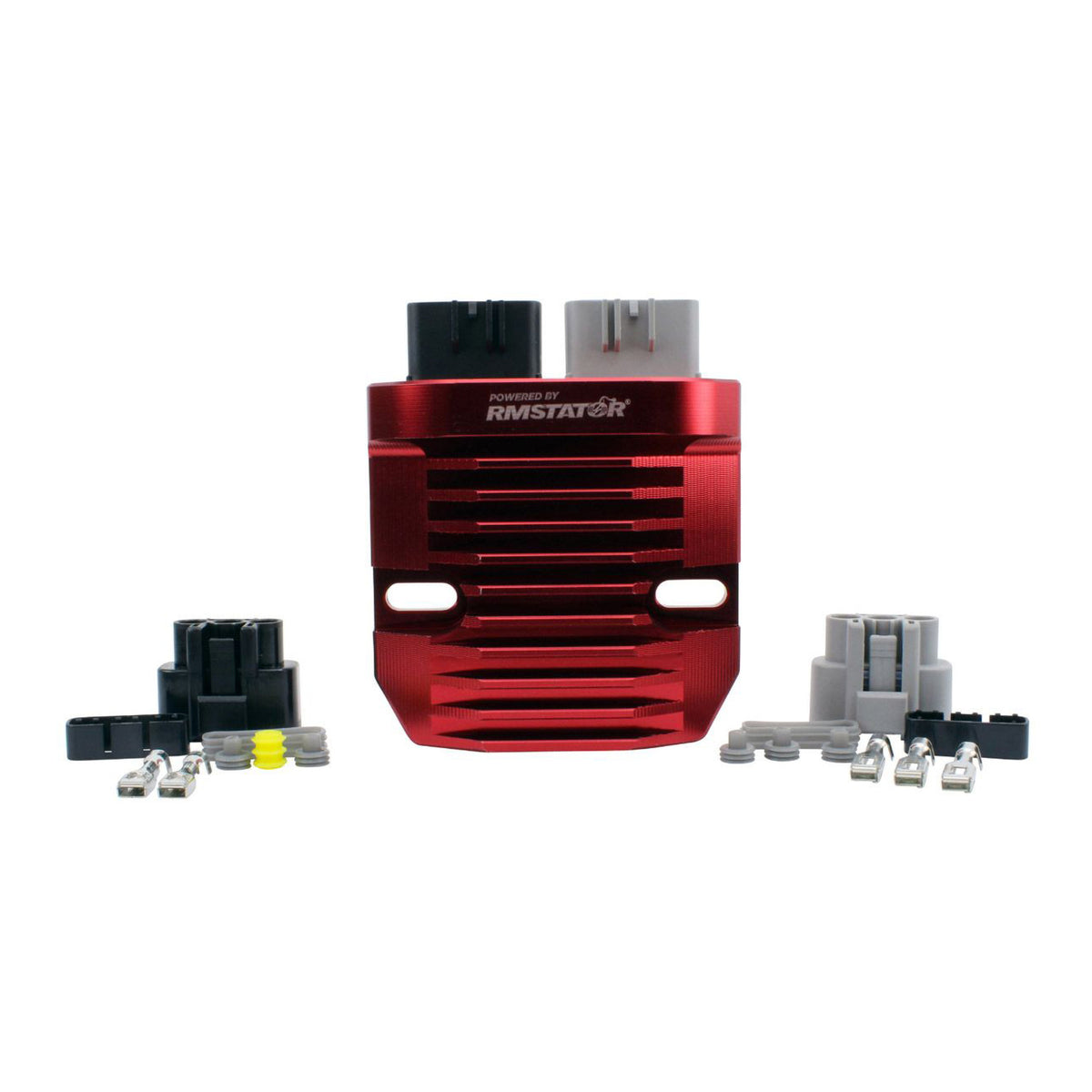

RMSTATOR Red Machined Aluminum Mosfet Regulator

Dimensions:
Width: 103 mm
Length: 103 mm
Height: 28 mm
Fixation holes center to center: 80 mm

Other specifications:
Number of plugs: 2
Number of pins: 5
Number of wires: 0
Minimum Charging Voltage: 14.5 V +- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: 15 V
Operation Temperature: -20°C to 85°C
